Preparation and Electrical Property of Mg₂Si Thin Film by Pulsed Laser Deposition

Abstract:

Mg₂Si thin film on Si(100) substrate was obtained by pulsed laser deposition. Effects of the annealing procedure on the growth of Mg₂Si film were discussed. X-ray, atomic force microscopy (AFM) and field-emission scanning electron microscopy (FESEM) were applied for the phase and microstructure of the obtained Mg₂Si film. The results revealed that the annealing procedure was very important for the crystallization of Mg₂Si thin film. The Ar partial pressure of 10Pa, temperature of 500°C and time of 30min for annealing were the optimal annealing parameters for Mg2Si thin film formation. Furthermore, electrical properties of the obtained Mg₂Si thin film were detected. The results showed that the maximal resistivity of Mg₂Si thin film was 7Ω·cm within the temperature range of 110~230°C. And the resistivity gradually decreased with the increase of temperature, which was the characteristic behaviour of a semiconductor. Carrier concentration of the film was negative in the temperature range of testing, showing Mg₂Si thin film as n-type semiconductor.

You might also be interested in these eBooks

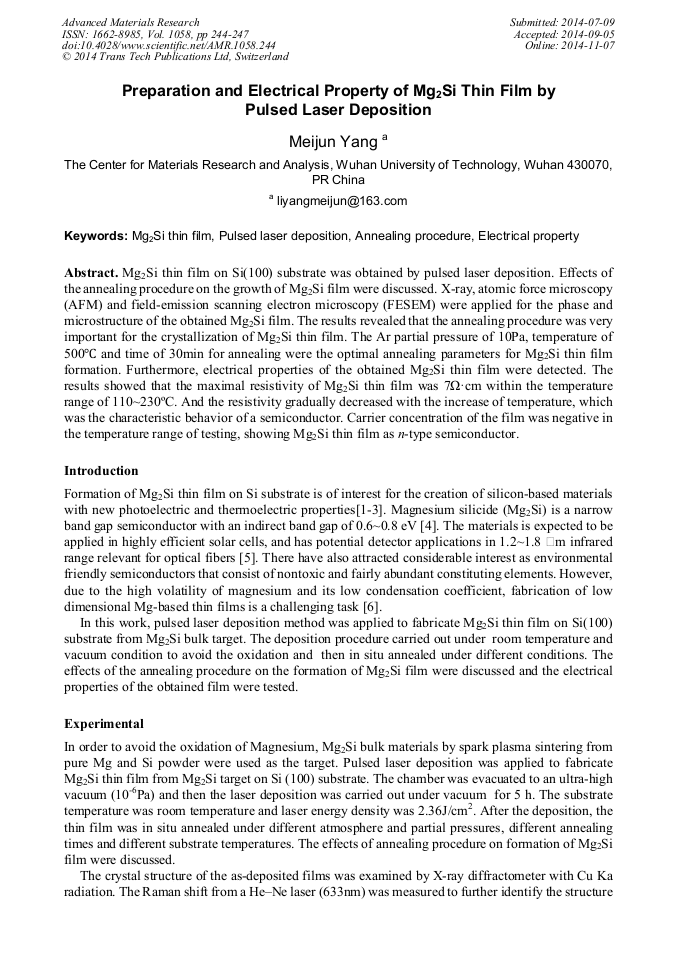

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1058)

Pages:

244-247

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1058.244

Citation:

Cite this paper

Online since:

November 2014

Authors:

Mei Jun Yang*

Keywords:

Annealing Procedure, Electrical Properties, Mg₂Si Thin Film, Pulsed Laser Deposition

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J. E. Mahan, A. Vantomme, G, Langouche, Semiconducting Mg2Si thin film prepared by molecular-beam epitaxy, Physical Review B. 54 (1996) 16965-16971.

DOI: 10.1103/physrevb.54.16965

Google Scholar

[2] N. G. Galkin, S. V. Vavanova, A. M. Maslov, Solid phase growth and properties of Mg2Si films on Si(111), Thin Solid Films. 515 (2007) 8230-8236.

DOI: 10.1016/j.tsf.2007.02.049

Google Scholar

[3] A. Vantomme, G. Langouche, J. E. Mahan, Growth mechanism and optical properties of semiconducting Mg2Si thin films, Microelectronic Engineering. 50 (2000) 237-242.

DOI: 10.1016/s0167-9317(99)00287-7

Google Scholar

[4] T. Serikawa, M. Henmi, T. Yamaguchi, H. Oginuma, Depositions andmicrostructures of Mg-Si thin film by ion beam sputtering. Surface and Coatings Technology. 200 (2006) 4233-4239.

DOI: 10.1016/j.surfcoat.2005.01.047

Google Scholar

[5] K. Hachiya, T. Goto, R. Hagiwara, Optical properties of thin-film magnesium silicide prapared by electrochemical process, Electrochimica Acta. 53 (2007) 46-49.

DOI: 10.1016/j.electacta.2007.02.067

Google Scholar

[6] T. Serikawa, M. Henmi, K. Kondoh, Microstructure and Mg concentration of Mg-Si thin film deposited by ion beam sputtering on glass substate, J. Vac. Sci. Technol. A 22 (2004) 1971-(1974).

DOI: 10.1116/1.1778406

Google Scholar
