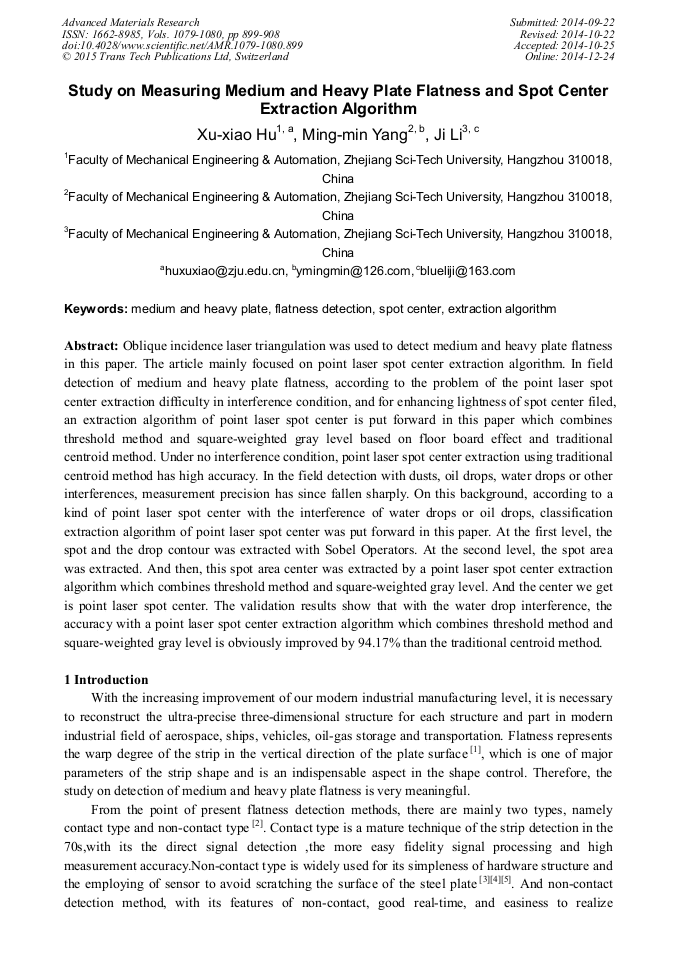

Study on Measuring Medium and Heavy Plate Flatness and Spot Center Extraction Algorithm

Abstract:

Oblique incidence lasertriangulation was used to detect medium and heavy plate flatness in this paper.The article mainly focused on point laser spot center extraction algorithm. Infielddetection of medium and heavy plate flatness, according to the problem of thepoint laser spot center extraction difficulty in interference condition, andfor enhancing lightness of spot center filed, an extraction algorithm of pointlaser spot center is put forward in this paper which combines threshold methodand square-weighted gray level based on floor board effect and traditionalcentroid method. Under no interference condition, point laser spot centerextraction using traditional centroid method has high accuracy. In the fielddetection with dusts, oil drops, water drops or other interferences,measurement precision has since fallen sharply. On this background, accordingto a kind of point laser spot center with the interference of water drops oroil drops, classification extraction algorithm of point laser spot center wasput forward in this paper. At the first level, the spot and the drop contourwas extracted with Sobel Operators. At the second level, the spot area wasextracted. And then, this spot area center was extracted by a point laser spotcenter extraction algorithm which combines threshold method and square-weightedgray level. And the center we get is point laser spot center. The validationresults show that with the water drop interference, the accuracy with a pointlaser spot center extraction algorithm which combines threshold method andsquare-weighted gray level is obviously improved by 94.17% than the traditionalcentroid method.

• Periodical: Advanced Materials Research (Volumes 1079-1080)
• Pages: 899-908
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1079-1080.899
• Online since: December 2014
• Authors: Xu Xiao Hu, Ming Min Yang*, Ji Li
• Keywords: Extraction Algorithm, Flatness Detection, Heavy Plate, Medium, Spot Center

References

[1] Yang Guanghui, Li Hongbo, Zhang Jie, Sun Jian. Shape Detection of Wide Strip for Continuous Hot Rolling Mill. Metal World, 2012(2).

[2] Ding Xiukun. The automation of rolling process . Metallurgical Industry Press. Beijing, China , (2009).

[3] Julio Molleda, Rubén Usamentiaga , Daniel F. Garcia, Francisco G. Bulnes, 2009. Real-time flatness inspection of rolled products based on optical laser triangulation and three-dimensional surface reconstruction. Journal of Electronic Image, 19(3). [doi: 10. 1117/1. 3455987].

DOI: 10.1117/1.3455987

[4] Zheng Shenbai, Mou wenheng, 2008. Practical rolling process parameters detection technology. Chemical Industry Press, Beijing, China.

[5] Yu Bingqiang , Liu Hongmin , Yang Xu, Peng Yan, Li Zhiming, 2009. A new type of contact shape meter and its industry application. International Conference on Measuring Technology and Mechatronics Automation (ICMTMA 2009), (4): 20-23, [doi: 10. 1109/ICMTMA. 2009. 49].

DOI: 10.1109/icmtma.2009.49

[6] Jussi Paakkari, 1998. On-line flatness measurement of large steel plates using moiré topography. MS Thesis, University of Oulu, Oulu, Finland.

[7] Ruben Usamentiaga, Julio Molleda, Daniel F. Garcia, Francisco G. Bulnes, 2009. Machine vision system for flatness control feedback. Second International Conference on Machine Vision, pp.105-110. [doi: 10. 1109/ICMV. 2009. 14].

DOI: 10.1109/icmv.2009.14

[8] R. Noll, M. Krauhausen, 2008. Online laser measurement technology for rolled products. Ironmaking and Steelmaking, 35(3), pp.221-227. [doi: 10. 1179/174328108X284543].

DOI: 10.1179/174328108x284543

[9] Julio Molleda, Ruben Usamentiaga, Daniel F. Garcia, Francisco G. Bulnes, Laura Ema. Shape measurement of steel strips using a laser-based three-dimensional reconstruction technique. Industry Applications Society Annual Meeting (IAS). IEEE, (2010).

DOI: 10.1109/ias.2010.5615470

[10] Lopez. Carlos, Garcia. Daniel F, Usamentiaga. Ruben, Gonzalez. Diego, Gonzalez. Juan A. Real time system for flatness inspection of steel strips. Proceeding of SPIE-The International Society for Optical Engineering, 5679, (2005).

DOI: 10.1117/12.585902

[11] Su Lanhai, Yu Lewen, Ma Xianghua. Research of the Technology of Flatness Detection for Steel Strip Based on Linear Laser. 2010 International Conference on Electrical and Control Engineering, Wuhan, China, (2010).

DOI: 10.1109/icece.2010.1330

[12] Qu Sifan, Zhou Hu, Tan Gaochao. Research on the Development of Illumination Control System in Machine Vision Measurement. 2013 Third International Conference on Intelligent System Design and Engineering Applications, (2013).

DOI: 10.1109/isdea.2012.395

[13] Zhuang Baohua; Wang Shaoqing; Jiang ChengZhi; Zhang Jihlla; Zhang Wenwei, 1995. Dependence of the Received Light Power of a Laser Triangulation Displacement Sensor on the Testing Surface Inclination and the Inclination Angle Measurement. CHINESE JOURNAL OF LASERS, 22(8), pp.595-560.

[14] Wang Shaoqing, Zhuang Baohua, Zhang Wenwei. Rebuilding Principle Formula of Optical Triangulation Method of Displacement Measurement in View of the Lambert' Theory. ACTA OPTICA SINICA, 16(2), (1996), pp.1802-1807.

[15] Tang Qiangjin. The application of the laser triangulation method in the measurement of objects' three-dimension figure. MS Thesis, Southeast University, Jiangsu, China, (2006).
