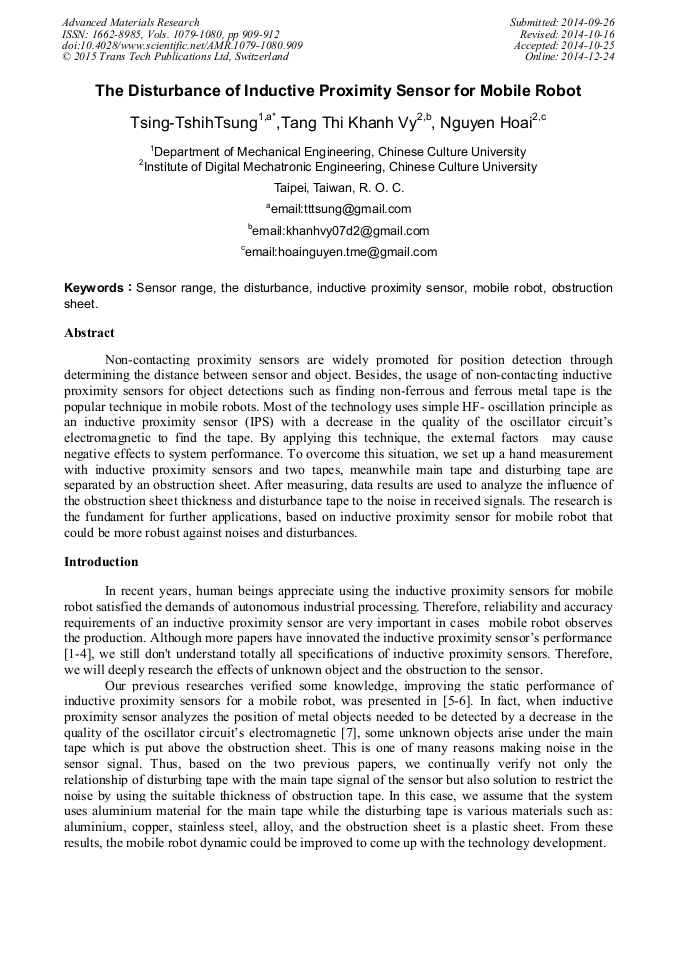

The Disturbance of Inductive Proximity Sensor for Mobile Robot

Abstract:

Non-contactingproximity sensors are widely promoted for position detection through determiningthe distance between sensor and object. Besides, the usage of non-contactinginductive proximity sensors for object detections such as finding non-ferrousand ferrous metal tape is the popular technique in mobile robots. Most of thetechnology uses simple HF- oscillation principle as an inductive proximitysensor (IPS) with a decrease in the quality of the oscillator circuit’selectromagnetic to find the tape. By applying this technique, the externalfactors may cause negative effects to systemperformance. To overcome this situation, we set up a hand measurement withinductive proximity sensors and two tapes, meanwhile main tape and disturbingtape are separated by an obstruction sheet. After measuring, dataresults are used to analyze the influence of the obstruction sheet thickness anddisturbance tape to the noise in received signals. The research isthe fundament for further applications, based on inductive proximity sensor formobile robot that could be more robust against noises and disturbances.

• Periodical: Advanced Materials Research (Volumes 1079-1080)
• Pages: 909-912
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1079-1080.909
• Online since: December 2014
• Authors: Tsing Tshih Tsung*, Thi Khanh Tang, Nguyen Hoai
• Keywords: Disturbance, Inductive Proximity Sensor, Mobile Robot, Obstruction Sheet, Sensor Range

References

[1] Tsutomu Mizuno, Takahiro Mizuguchi, Yusuke Isono, Takayuki Fujii, Yoshio Kishi, Katsuhiko Nakaya, Masaki Kasai and Atsushi Shimizu, Extending the Operating Distance of Inductive Proximity Sensor Using Magnetoplated Wire, IEEE Transactions on Magnetics, Vol. 45, No. 10, pp.4463-4466, October. (2009).

DOI: 10.1109/tmag.2009.2021855

[2] Kofi D. Anim-Appiah and Sedki M. Riad, Analysis and Design of Ferrite Cores for Eddy-Current-Killed Oscillator Inductive Proximity Sensors, IEEE Transactions on Magnetics, Vol. 33, No. 3, p.2274 – 2281, May. (1997).

DOI: 10.1109/20.573843

[3] Manfred Jagiella and Dr. SorinFericean, Miniaturized Inductive Sensors for Industrial Applications, Proceedings of IEEE, Vol. 2, pp.771-778, (2002).

[4] Daniely G. Silva, José A. Justino Ribeiro, and Tales C. Pimenta, Design of Eddy Current Sensor IC for Large Displacement, IEEE International Symposium on Industrial Electronics (ISIE), pp.1-6, May. (2013).

DOI: 10.1109/isie.2013.6563635

[5] Tsing-TshihTsung, Nguyen Hoai, Measurement Of Static Performance Of Inductive Proximity Switch For a Mobile Robot, in Applied Mechanics and Materials, Vol. 404, pp.502-507, September. (2013).

DOI: 10.4028/www.scientific.net/amm.404.502

[6] Tsing-TshihTsung, Nguyen Hoai, Dynamic Performance Measurement of Proximity Sensors for a Mobile Robot, in Precision Engineering and Nanotechnology, Vol. 625, pp.625-683, August. (2014).

DOI: 10.4028/www.scientific.net/kem.625.683

[7] Jacob Fraden, Handbook of Modern Sensors, Fourth Edition., Springer-Verlag, New York, NY, USA, 2010 p.290.
