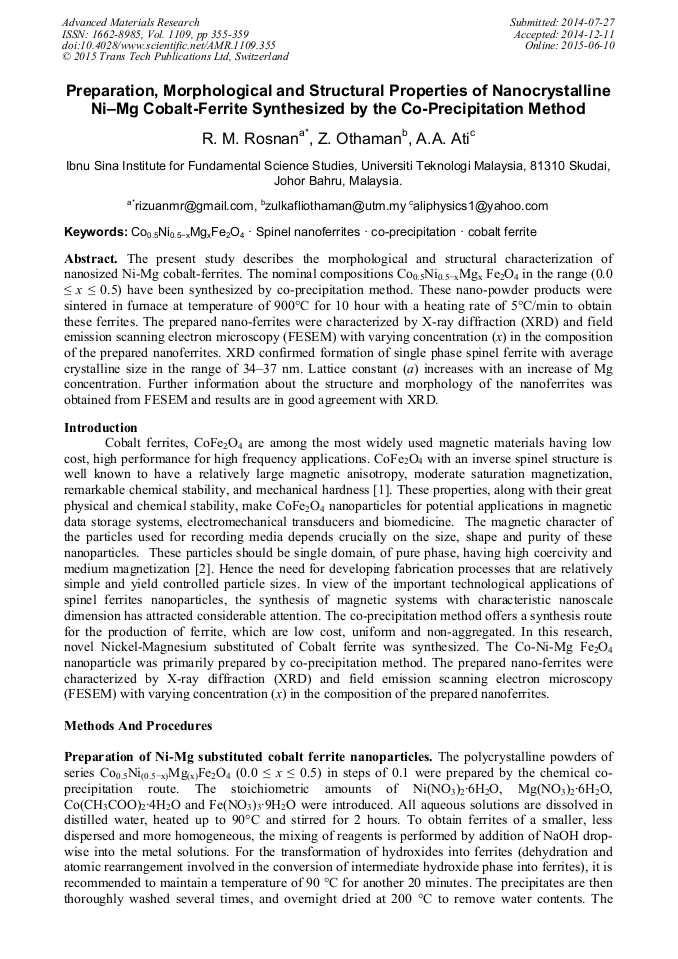

Preparation, Morphological and Structural Properties of Nanocrystalline Ni-Mg Cobalt-Ferrite Synthesized by the Co-Precipitation Method

Abstract:

The present study describes the morphological and structural characterization of nanosized Ni-Mg cobalt-ferrites. The nominal compositions Co_0.5Ni_0.5−xMg_x Fe₂O₄ in the range (0.0 ≤ x ≤ 0.5) have been synthesized by co-precipitation method. These nanopowder products were sintered in furnace at temperature of 900°C for 10 hour with a heating rate of 5°C/min to obtain these ferrites. The prepared nanoferrites were characterized by X-ray diffraction (XRD) and field emission scanning electron microscopy (FESEM) with varying concentration (x) in the composition of the prepared nanoferrites. XRD confirmed formation of single phase spinel ferrite with average crystalline size in the range of 34–37 nm. Lattice constant (a) increases with an increase of Mg concentration. Further information about the structure and morphology of the nanoferrites was obtained from FESEM and results are in good agreement with XRD.

You might also be interested in these eBooks

Nanoscience, Nanotechnology, and Nanoengineering: Fundamentals and Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1109)

Pages:

355-359

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1109.355

Citation:

Cite this paper

Online since:

June 2015

Authors:

Rizuan Mohd Rosnan*, Zulkafli Othaman, Ali A. Ati

Keywords:

Co_0.5Ni_0.5−xMg_xFe₂O₄, Cobalt Ferrite, Co-Precipitation, Spinel Nanoferrites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] N. Bao, L. Shen, P. Padhan and A. Gupta, Self-assembly and Magnetic Properties of Shape-Controlled Monodisperse CoFe2O4 Nanocrystals, Appl. Phys. Lett. 92, (2008) 173101-3.

DOI: 10.1063/1.2917444

Google Scholar

[2] M. A. Ahmed, S. F. Mansur and M. A. Abdo, Characterization and dramatic variations of the magnetic properties of Cu-doped nanometric Co ferrite, Phys. Scr. 84 (2011) 055602 (5pp).

DOI: 10.1088/0031-8949/84/05/055602

Google Scholar

[3] M. N. Ashiq, F. Naz, M. A. Malana, R. S. Gohar and Z. Ahmad, Z. Role of Co-Cr Substitution on the Structural, Electrical and Magnetic Properties of Nickel Nano-Ferrites Synthesized by the Chemical Co-precipitation Method, Mater. Res. Bull. 47 (2012) 683-686.

DOI: 10.1016/j.materresbull.2011.12.017

Google Scholar

[4] J. Smit and H. P. J. Wijn, Ferrites, John Wiley & Sons, New York, 1959.

Google Scholar

[5] K. H. Maria, S. Choudhury and M. A. Hakim. Structural Phase Transformation and Hysteresis Behavior of Cu-Zn Ferrites, Int. Nano Lett. 3, (2013) 1-10.

DOI: 10.1186/2228-5326-3-42

Google Scholar

[6] A. A. Pandit, A. R. Shitre, D. R. Shengule, K. M. Jadhav. Magnetic and Dielectric Properties of Mg1-xMnxFe2-2xO4 Ferrite System. J. Mater. Sci. 40 (2005) 423–428.

DOI: 10.1007/s10853-005-6099-x

Google Scholar

[7] M. M. Haque, K. H. Maria, S. Choudhury, M. A. Bhuiyan and M. A. Hakim. Synthesis, Microstructure and Magnetic Properties of Ni-Mg Ferrites, J. Ceram. Process. Res. 14, (2013) 82–86.

Google Scholar
