The Effect of Mechanical Stress and Surface Tracking of 22 kV Cable Spacer

Abstract:

Surface tracking is one of the causes that degraded the property of cable spacer. This research investigates about the mechanical stress and surface tracking performance of 22 kV cable spacer. Sample were tested according to the surface tracking under IEC 60587 standard under modified condition by and addition of the mechanical weight on the surface of pure epoxy resin sample. The mechanical load use were 0 kg and increase from 5 kg until 15 kg. The results showed that mechanical stress has affected the surface degradation of an insulation performance when the mechanical load is increased combined with high electrical field.

You might also be interested in these eBooks

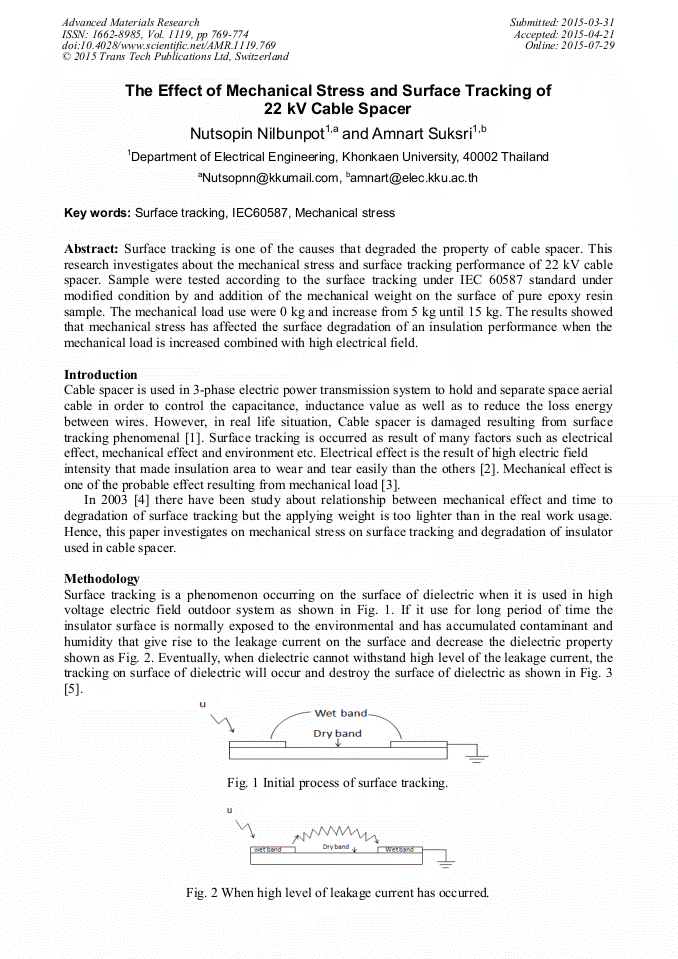

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1119)

Pages:

769-774

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1119.769

Citation:

Cite this paper

Online since:

July 2015

Authors:

Nutsopin Nilbunpot*, Amnart Suksri

Keywords:

IEC60587, Mechanical Stress, Surface Tracking

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Provincial Electricity Authority (PEA). (2013). Report deterioration of cable spacer in 22kV.

Google Scholar

[2] V. Saithogin (2011). Study on the Electric Field at the Contract Point between the Space Aerial Cable and Spaces. Unpublished a thesis in partial fulfillment of the requirements, Chulalongkorn University, Thailand.

Google Scholar

[3] Electricity Generating Authority of Thailand (EGAT). (2011). Development and exchange wire in 22 kV.

Google Scholar

[4] M. Ugur, A. Kuntman, and A. Merev, (2003). The Effect of Environmental Factor on the Performance of Polyester Outdoor Insulators: Vol. 3. Journal of Electrical & Electronics Engineering (p.943–953).

Google Scholar

[5] S. Sungsaard. (2006). High voltage engineering(Eds. 3), Breakdown in solid insulator and tracking (pp.6-15 – 6-21). Thailand.

Google Scholar

[6] International Electrotechnical Commission, IEC 60587 Electrical insulating materials used under severe ambient conditions – Test methods for evaluating resistance to tracking and erosion, IEC publications, Switzerland, 2007, p.11.

DOI: 10.3403/30366448

Google Scholar

[7] ReliaSoft Corporation, http: /www. reliasoft. com/synthesis/demo. htm.

Google Scholar
