Numerical Simulation of Spherical Indentation Method to Identify Metal Material Properties

Abstract:

The main objective of this paper is to study the indentation process of the spherical indenter by finite element method (FEM). Elastic-plastic model is established and the effect of metal material properties (plastic modulus, yield strength) on response of load-displacement curve during the loading-unloading process is discussed in detail. FEM results indicate that the maximum indentation depths are smaller with larger plastic modulus. For elastic–perfectly plastic materials, the equivalent plastic strain (EPS) grows with the increase of pressed depth and the plastic impact area is constantly changing. In addition, the generated Max depth decreases with the increase of yield strength under the same load. Besides, friction coefficients have little effect on the indentation process. This research provides a theoretical basis for experiment and engineering.

You might also be interested in these eBooks

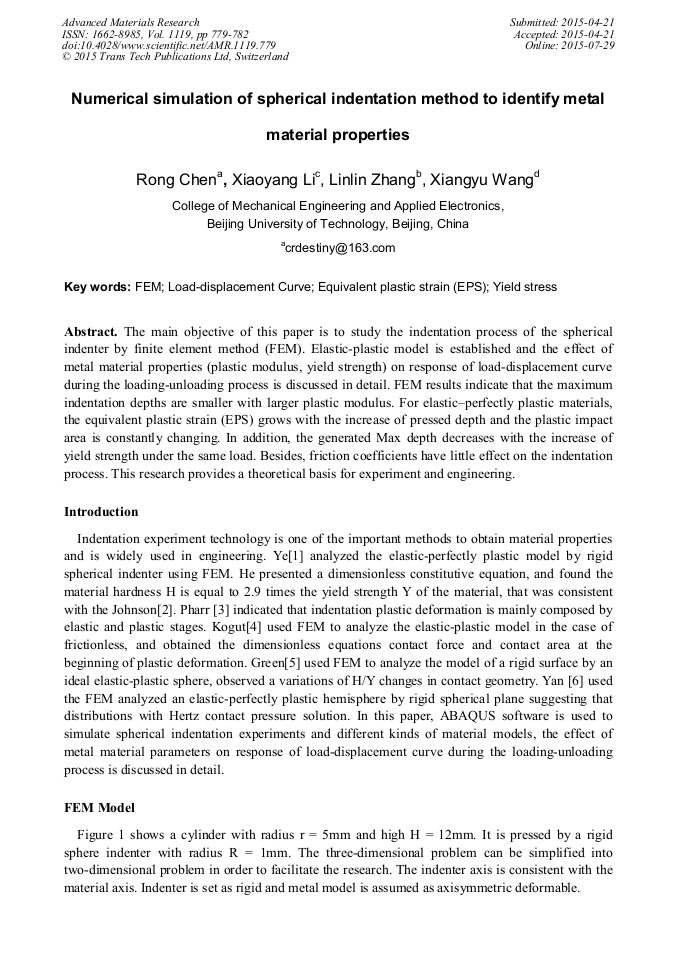

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1119)

Pages:

779-782

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1119.779

Citation:

Cite this paper

Online since:

July 2015

Authors:

Rong Chen*, Xiao Yang Li, Lin Lin Zhang, Xiang Yu Wang

Keywords:

Equivalent Plastic Strain (EPS), FEM, Load-Displacement Curve, Yield Stress

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K., Ye, N., Komvopoulos: Three-dimensional contact analysis of elastic–plastic layered media with fractal surface topographies. ASME J. Tribol. 123(2001), 632–640.

DOI: 10.1115/1.1327583

Google Scholar

[2] K. L Johnson: Contact Mechanics. ( Cambridge University Press, Cambridge, England 1985).

Google Scholar

[3] Y.J. Park, G.M. Pharr: Nanoindentation with spherical indenters: finite element studies of deformation in the elastic–plastic transition regime. Thin Solid Films 447/448(2004), 246–250.

DOI: 10.1016/s0040-6090(03)01102-7

Google Scholar

[4] L. Kogut , I. Etsion,: Elastic–plastic contact analysis of a sphere and a rigid flat. ASME J. Appl. Mech. 69(2002), 657–662.

DOI: 10.1115/1.1490373

Google Scholar

[5] R.L. Jackson, I. Green: A finite element study of elastic-plastic hemispherical contact against a rigid flat. ASME J. Tribol. 127(2005), 343– 354.

DOI: 10.1115/1.1866166

Google Scholar

[6] S.L. Yan, L. Y Li: Finite element analysis of cyclic indentation of an elastic-perfectly plastic half-space by a rigid sphere. Proc. Inst. Mech. Eng. C: J. Mech. Eng. Sci. 217(2003), 505–514.

DOI: 10.1243/095440603765226795

Google Scholar
