Experimental Verification of Effect of Adhesive Layer Thickness Used for Strain Gauge Mounting

Abstract:

Strain measurement from the strain gauge is partially affected by carrier and adhesive materials and their thickness. Effect of adhesive layer thickness has been addressed in this paper. Well characterized tensile experiments have been conducted using Al 6061-T6 specimens attached with strain gauges at mid length of the specimen and strain gauges are attached with different materials namely epoxy and polyurethane to understand the effect of adhesive layer thickness in strain measurement. The strain at a location has been noted for one particular adhesive layer thickness value (0.13 mm) and similar experiments have been carried out with different adhesive thickness values (0.16 mm, 0.18 mm and 0.26 mm). The results obtained from experiments have been compared with analytical results from Basic Strength of Materials approach. Good agreement is seen between the experimental and analytical results. It has been observed that the thickness of the adhesive layer plays significant role for getting accurate strain.

You might also be interested in these eBooks

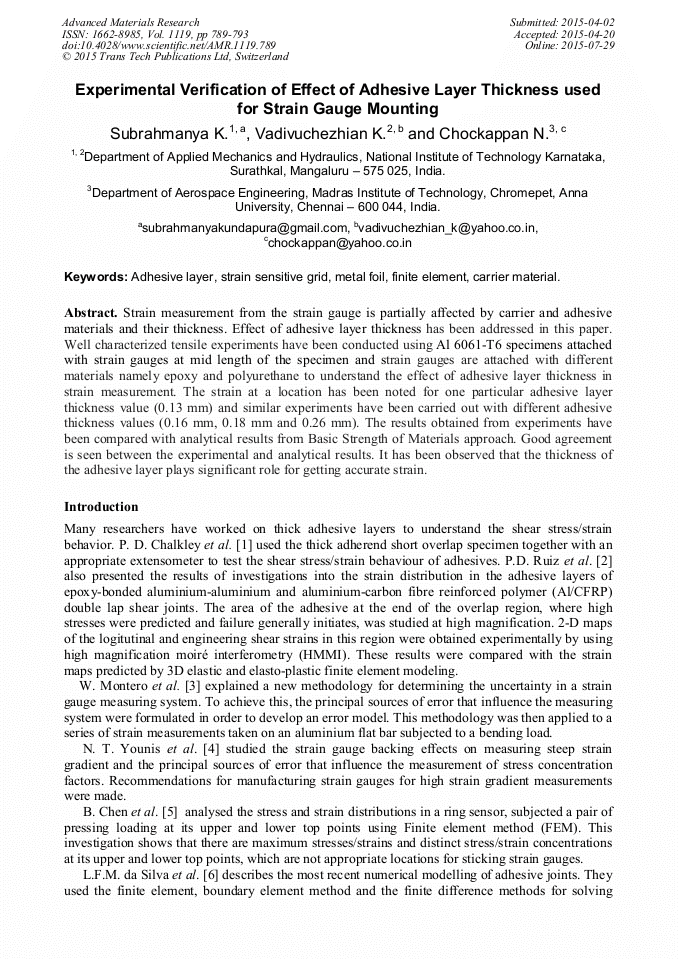

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1119)

Pages:

789-793

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1119.789

Citation:

Cite this paper

Online since:

July 2015

Authors:

K. Subrahmanya*, K. Vadivuchezhian, N. Chockappan

Keywords:

Adhesive Layer, Carrier Material, Finite Element, Metal Foil, Strain Sensitive Grid

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. D. Chalkley and W. K. Chiu: International Journal of Adhesion and Adhesives Vol. 13 (1993), p.4.

Google Scholar

[2] P. D. Ruiz, F. Jumbo, J. M. Huntley, I. A. Ashcroft and G. M. Swallowe: An International Journal for Experimental Mechanics Vol. 47 (2011), p.88 – 104.

Google Scholar

[3] W. Montero, R. Farag, V. Díaz, M. Ramirez and B. L. Boada: The Journal of Strain Analysis for Engineering Design, DOI: 10. 1243/03093247JSA661.

Google Scholar

[4] N. T. Younis and B. Kang: International Conference on Mathematics and Engineering, Honolulu, Hawaii (2011).

Google Scholar

[5] B. Chen, X. Wu and X. Peng: Journal of Sensors and Actuators Vol. A139 (2007), p.66 – 69.

Google Scholar

[6] L. F. M. da Silva and R. D. S. G. Campilho: Springer Briefs in Computational Mechanics, DOI: 10. 1007/978-3-642-23608-2_1.

Google Scholar
