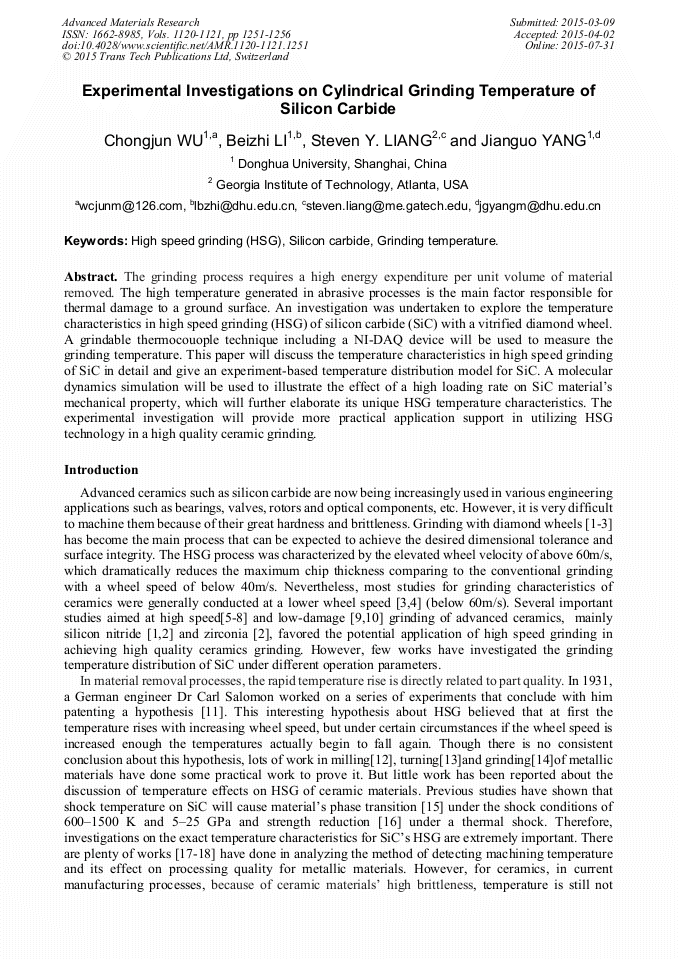

Experimental Investigations on Cylindrical Grinding Temperature of Silicon Carbide

Abstract:

The grinding process requires a high energy expenditure per unit volume of material removed. The high temperature generated in abrasive processes is the main factor responsible for thermal damage to a ground surface. An investigation was undertaken to explore the temperature characteristics in high speed grinding (HSG) of silicon carbide (SiC) with a vitrified diamond wheel. A grindable thermocouople technique including a NI-DAQ device will be used to measure the grinding temperature. This paper will discuss the temperature characteristics in high speed grinding of SiC in detail and give an experiment-based temperature distribution model for SiC. A molecular dynamics simulation will be used to illustrate the effect of a high loading rate on SiC material’s mechanical property, which will further elaborate its unique HSG temperature characteristics. The experimental investigation will provide more practical application support in utilizing HSG technology in a high quality ceramic grinding.

• Periodical: Advanced Materials Research (Volumes 1120-1121)
• Pages: 1251-1256
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.1251
• Online since: July 2015
• Authors: Chong Jun Wu*, Bei Zhi Li, Steven Y. Liang, Jian Guo Yang
• Keywords: Grinding Temperature, High Speed Grinding (HSG), Silicon Carbide (SiC)

References

[1] S. Malkin, T.W. Hwang, Grinding mechanisms for Ceramics. CIRP Annals-Manufacturing Technology, Volume 45, Issue 2, 1996, Pages 569-580.

DOI: 10.1016/s0007-8506(07)60511-3

[2] J. Chen et al. Grinding characteristics in high speed grinding of engineering ceramics with brazed diamond wheels. Journal of Materials Processing Technology 210 (2010) 899–906.

DOI: 10.1016/j.jmatprotec.2010.02.002

[3] S. Agarwal, P. Venkateswara Rao, Grinding characteristics, material removal and damage formation mechanism s in high removal rate grinding of silicon carbide . International Journal of Machine Tools & Manufacture 50 (2010) 1077–1087.

DOI: 10.1016/j.ijmachtools.2010.08.008

[4] K. Kitajima, G.Q. Cai, N. Kurnagai, Y. Tanaka, H.W. Zheng, Study on Mechanism of Ceramics Grinding. CIRP Annals - Manufacturing Technology, Volume 41, Issue 1, 1992, Pages 367-371.

DOI: 10.1016/s0007-8506(07)61224-4

[5] F. Klocke, E. Verlemann, C. Schippers, High-speed grinding of ceramics, in: S. Jahanmir, M. Ramulu, P. Koshy (Eds. ), Machining of Ceramics and Composites, Marcel Dekker, New York, 1999, p.119–138.

[6] Ling Yina, H. Huang, K. Ramesh, T. Huang, High speed versus conventional grinding in high removal rate machining of alumina and alumina–titania, International Journal of Machine Tools & Manufacture 45 (2005) 897–907.

DOI: 10.1016/j.ijmachtools.2004.10.016

[7] Jiaming Ni, Beizhi Li, Phase transformation in high-speed cylindrical grinding of SiC and its effects on residual stresses, Materials Letters 89 (2012) 150–152.

DOI: 10.1016/j.matlet.2012.08.119

[8] L. Yin and H. Huang: Ceramic Response to High Speed Grinding, Machining Science and Technology, Vol. 8(2008), pp.21-37.

[9] T. G Bifano, T. A Dow, R. O Scattergood, Ductile-regime grinding: A new technology for machining brittle materials[J], Journal of Engineering for Industry Transactions of the ASME, 1991, 113(2): 184-189.

DOI: 10.1115/1.2899676

[10] H. Huang and L. Yin， Grinding Characteristics of Engineering Ceramics in High Speed Regime, International Journal of Abrasive Technology, Vol. 1(2007), pp.78-93.

DOI: 10.1504/ijat.2007.013850

[11] C.J. Salomon, Process for machining metals of similar acting materials when being worked by cutting tools, German patent, Number 523594, (1931).

[12] H. Schultz, High speed milling of aluminium alloys, in: Proceedings of the Winter Annual Meeting of the ASME, New Orleans, December 1984, p.241–244.

[13] D. O'Sullivan, M. Cotterell, Temperature measurement in single point turning, Journal of Materials Processing Technology. 118 (2001) 301–308.

DOI: 10.1016/s0924-0136(01)00853-6

[14] M. Hitchiner, Practical challenges to the application of high wheel speeds to grinding, in: Proceedings of an International Technical Conference on Diamond, cubic boron nitride and their applications, Industrial Diamond Association of America, (2003).

[15] Y. Q. ZHU, T. SEKINE ∗, T. KOBAYASHI, E. TAKAZAWA, Shock-induced phase transitions among SiC polytypes. Journal of Materials Science. 33(1998) 5883 – 5890.

[16] Schneider G A. Thermoschockverhalten von Hochleistungskeramik[D]. Stuttgart: Universität Stuttgart, (1989).

[17] A.D. Batako et al. Temperature measurement in high efficiency deep grinding, International Journal of Machine Tools & Manufacture 45 (2005) 1231–1245.

DOI: 10.1016/j.ijmachtools.2005.01.013

[18] T. Kuriyagawa et al. Grinding temperature within contact arc between wheel and workpiece in high-efficiency grinding of ultrahard cutting tool materials. Journal of Materials Processing Technology 136 (2003) 39–47.

DOI: 10.1016/s0924-0136(02)00842-7

[19] Jaeger, J. C., 1942, Moving Sources of Heat and the Temperature at Sliding Contacts, Proceedings of the Royal Society of New South Wales, 76: 203-224.

DOI: 10.5962/p.360338

[20] Guo, C., Malkin, S., 1994, Analytical and Experimental Investigation of Burnout in Creep-Feed Grinding, Annals of the CIRP, 43/1: 283-286.

DOI: 10.1016/s0007-8506(07)62214-8
