Measuring Microscopic Properties of a Single-Crystalline Diamond by Nano-Indentation Technology

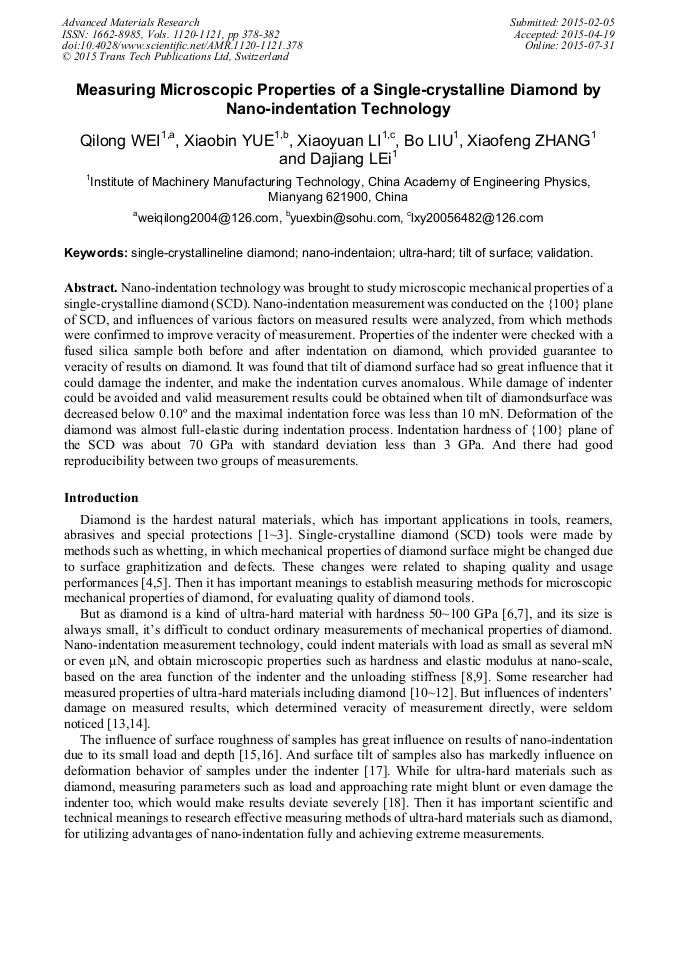

Article Preview

Abstract:

Nano-indentation technology was brought to study microscopic mechanical properties of a single-crystalline diamond (SCD). Nano-indentation measurement was conducted on the {100} plane of SCD, and influences of various factors on measured results were analyzed, from which methods were confirmed to improve veracity of measurement. Properties of the indenter were checked with a fused silica sample both before and after indentation on diamond, which provided guarantee to veracity of results on diamond. It was found that tilt of diamond surface had so great influence that it could damage the indenter, and make the indentation curves anomalous. While damage of indenter could be avoided and valid measurement results could be obtained when tilt of diamondsurface was decreased below 0.10º and the maximal indentation force was less than 10 mN. Deformation of the diamond was almost full-elastic during indentation process. Indentation hardness of {100} plane of the SCD was about 70 GPa with standard deviation less than 3 GPa. And there had good reproducibility between two groups of measurements.

You might also be interested in these eBooks
Contemporary Approaches in Material Science and Materials Processing Technologies View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1120-1121)

Pages:

378-382

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.378

Citation:

Cite this paper

Online since:

July 2015

Authors:

Qi Long Wei*, Xiao Bin Yue, Xiao Yuan Li, Bo Liu, Xiao Feng Zhang, Da Jiang Lei

Keywords:

Nano-Indentaion, Single-Crystallineline Diamond, Tilt of Surface, Ultra-Hard, Validation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] C. Dawedeit, S. O. Kucheyev, S. J. Shin, et al, Grain size dependent physical and chemical properties of thick CVD diamond films for high energy density physics experiments, Diamond Relat. Mater. 40 (2013) 75-81.

DOI: 10.1016/j.diamond.2013.10.001

Google Scholar

[2] H. Sumiya, K. Harano, Y. Ishida, Mechanical properties of nano-polycrystalline cBN synthesized by direct conversion sintering under HPHT, Diamond Relat. Mater. 41 (2014) 14-19.

DOI: 10.1016/j.diamond.2013.10.014

Google Scholar

[3] W. D. Wang, D. W. He, M. J. Tang, et al, Superhard composites of cubic silicon nitride and diamond. Diamond Relat. Mater. 27-28 (2012) 49-53.

DOI: 10.1016/j.diamond.2012.05.013

Google Scholar

[4] J. W. Yan, K. Syoji, J. Tamaki, Some observations on the wear of diamond tools in ultra-precision cutting of single-crystalline silicon, Wear 255 (2003) 1380-1387.

DOI: 10.1016/s0043-1648(03)00076-0

Google Scholar

[5] G. Saurav, X. C. Luo, L. R. Robert, Wear mechanism of diamond tools against single crystalline silicon in single point diamond turning process, Tribo. Intl. 57 (2013) 272-281.

DOI: 10.1016/j.triboint.2012.06.027

Google Scholar

[6] Q. Liang, C. S. Yan, Y. F. Meng, et al, Enhancing the mechanical properties of single-crystalline CVD diamond, J. Phys.: Condens. Matter 21 (2009) 364215.

DOI: 10.1088/0953-8984/21/36/364215

Google Scholar

[7] L. D. Fazio, S. Syngellakis, R. J. K. Wood, et al, Nanoindentation of CVD diamond: comparison of an FE model with analytical and experimental data, Diamond Relat. Mater. 10 (2010) 765-769.

DOI: 10.1016/s0925-9635(00)00496-9

Google Scholar

[8] S. Ozcan, K. Farhang, P. Filip, Assessment and verification of a novel method for near surface measurement of mechanical properties, Trans. ASME 29 (2007) 314-320.

DOI: 10.1115/1.2540550

Google Scholar

[9] A. Richter, C. P. Daghlian, R. Ries, et al, Investigation of novel superhard materials by multi-cycling nanoindentation, Diamond Relat. Mater. 15 (2006) 2019-(2023).

DOI: 10.1016/j.diamond.2006.09.015

Google Scholar

[10] H. Sumiya, K. Harano, Distinctive mechanical properties of nano-polycrystallineline diamond synthesized by direct conversion sintering under HPHT, Diamond Relat. Mater. 24 (2012) 44-48.

DOI: 10.1016/j.diamond.2011.10.013

Google Scholar

[11] N. Toda, H. Kimizuka, S. Ogata, DFT-based FEM analysis of nonlinear effects on indentation process in diamond crystalline, Intl. J. Mech. Sci. 52 (2010) 303-308.

DOI: 10.1016/j.ijmecsci.2009.09.035

Google Scholar

[12] A. Richter, R. Ries, R. Smith, et al, Nanoindentation of diamond, graphite and fullerene films, Diamond Relat. Maer. 9 (2000) 170-184.

DOI: 10.1016/s0925-9635(00)00188-6

Google Scholar

[13] Y. P. Cao, M. Dao, J. Liu, A precise correcting method for the study of the superhard material using nanoindentation tests, J. Mater. Res. 22 (2007) 1255-1264.

DOI: 10.1557/jmr.2007.0150

Google Scholar

[14] M. Wiora, K. Brühne, A. Flöter, et al, Grain size dependent mechanical properties of nanocrystallineline diamond films grown by hot-filament CVD, Diamond Relat. Mater. 18 (2009) 927-930.

DOI: 10.1016/j.diamond.2008.11.026

Google Scholar

[15] W. G. Jiang, J. J. Su, X. Q. Feng, Effect of surface roughness on nanoindentation test of thin films. Engng. Fract. Mech. 75 (2008) 4965-4972.

DOI: 10.1016/j.engfracmech.2008.06.016

Google Scholar

[16] M. Qasmi, P. Delobelle, Influence of the average roughness Rms on the precision of the Young's modulus and hardness determination using nanoindentation technique with a Berkovich indenter, Surf. Coat. Technol. 201(2006)1191-1199.

DOI: 10.1016/j.surfcoat.2006.01.058

Google Scholar

[17] ISO 14577-1: 2002, Metallic materials-instrumented indentation test for hardness and other materials parameters-Part 1: Test method.

DOI: 10.3403/02697842

Google Scholar

[18] R. A. Mirshams, R. M. Pothapragada, Correlation of nanoindentation measurements of nickel made using geometrically different indenter tips, Acta Mater. 54 (2006) 1123-1134.

DOI: 10.1016/j.actamat.2005.10.048

Google Scholar
