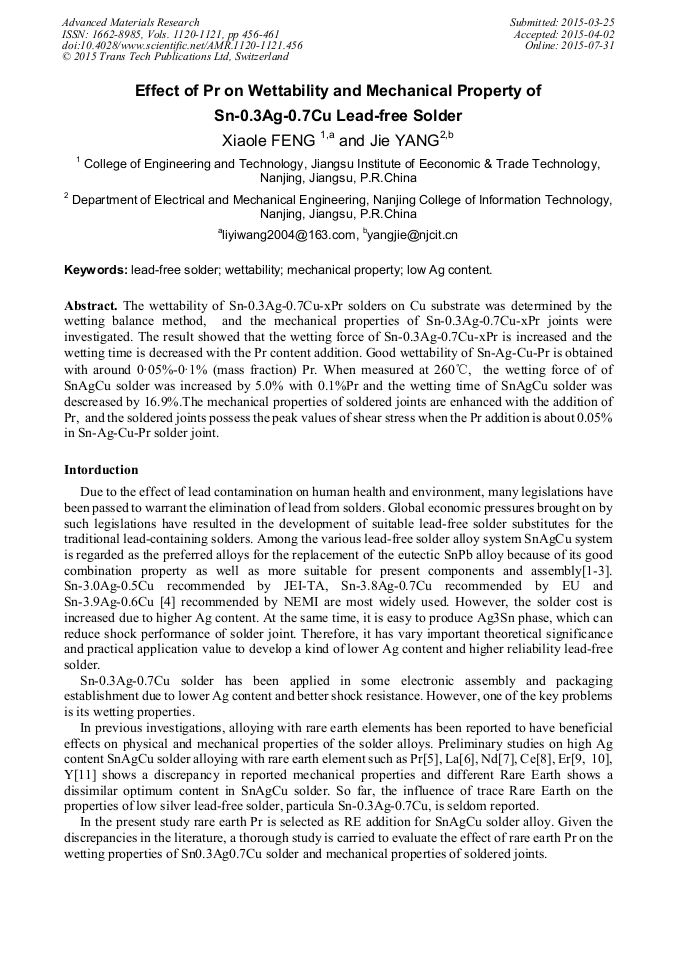

Effect of Pr on Wettability and Mechanical Property of Sn-0.3Ag-0.7Cu Lead-Free Solder

Abstract:

The wettability of Sn-0.3Ag-0.7Cu-xPr solders on Cu substrate was determined by the wetting balance method， and the mechanical properties of Sn-0.3Ag-0.7Cu-xPr joints were investigated. The result showed that the wetting force of Sn-0.3Ag-0.7Cu-xPr is increased and the wetting time is decreased with the Pr content addition. Good wettability of Sn-Ag-Cu-Pr is obtained with around 0·05%-0·1% (mass fraction) Pr. When measured at 260°C， the wetting force of of SnAgCu solder was increased by 5.0% with 0.1%Pr and the wetting time of SnAgCu solder was descreased by 16.9%.The mechanical properties of soldered joints are enhanced with the addition of Pr， and the soldered joints possess the peak values of shear stress when the Pr addition is about 0.05% in Sn-Ag-Cu-Pr solder joint.

• Periodical: Advanced Materials Research (Volumes 1120-1121)
• Pages: 456-461
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.456
• Online since: July 2015
• Authors: Xiao Le Feng*, Jie Yang
• Keywords: Lead-Free Solder, Low Ag Content, Mechanical Property, Wettability

References

[1] PARK S B, AHMED I Z. Shorter field life in power cycling for organic package. Journal of Electronic Packaging, 129(2007), 28-34.

DOI: 10.1115/1.2429706

[2] Wang Y W, Kao C R. Development of lead-free solders with superior drop test reliability performance. 2009 International Conference on Electronic Packaging Technology and High Density Packaging. Beijing: IEEE Press, (2009)534 - 539.

DOI: 10.1109/icept.2009.5270694

[3] Suganuma K. Lead-free soldering technoligy, Beijing Science Press. Beijin, (2004).

[4] Wang D Y, Gu X L. Sn-0. 3Ag-0. 7Cu-A Solder alloys. Zhejiang metallurgy, (2006)18- 20.

[5] Gao L L, Xue S B, Zhang L A, et al. Effect of Praseodymium on The Microstructure and Properties of Sn3. 8Ag0. 7Cu Solder. Journal of Materials Science: Materials In Electronics, (2010)910-916.

[6] Dudek M A, Chawla N. Three-Dimensional (3D) Microstructure Visualization of LaSn3 Intermetallics In A Novel Sn-Rich Rare-Earth-Containing Solder. Materials Characterization, 59(2008)1364-1368.

DOI: 10.1016/j.matchar.2007.10.008

[7] Gao L L, Xue S B, Zhang L, et al. Effects of Trace Rare Earth Nd Addition on Microstructure and Properties of SnAgCu Solder. Journal of Materials Science: Materials In Electronics, 21(2010)643-648.

DOI: 10.1007/s10854-009-9970-8

[8] Wang J X, Xue S B, Han Z J, et al. Effects of Rare Earth Ce on Microstructures, Solderability of Sn-Ag-Cu and Sn-Cu-Ni Solders as Well as Mechanical Properties of Soldered Joints. Journal of Alloys and Compounds, 467 (2009)219-226.

DOI: 10.1016/j.jallcom.2007.12.033

[9] Hao H, Shi Y W, Xia Z D, et al. Microstructure Evolution of SnAgCuEr Lead-Free Solders Under High Temperature Aging. Journal of Electronic Materials, 37(2008)2-8.

DOI: 10.1007/s11664-007-0263-9

[10] Shi Y W, Tian J, Hao H, et al. Effects of Small Amount Addition of Rare Earth Er on Microstructure and Property of SnAgCu Solder. Journal of Alloys and Compounds, 453(2008) 180-184.

DOI: 10.1016/j.jallcom.2006.11.165

[11] Dudek M A, Chawla N. Effect of Rare-Earth (La, Ce, and Y) Additions on The Microstructure and Mechanical Behavior of Sn-3. 9Ag-0. 7Cu Solder Alloy. Metallurgical and Materials Transactions A, 41 (2010)610-620.

DOI: 10.1007/s11661-009-0146-1

[12] Fang H Y, Feng J C. The interface behavior of materials in the process of connection. Harbin Institute of Technoloyg Press. Harbin, (2005).
