Investigation of Deposition Parameters Dependence on Sputtered Cu2ZnSnSe4 Thin Films Properties

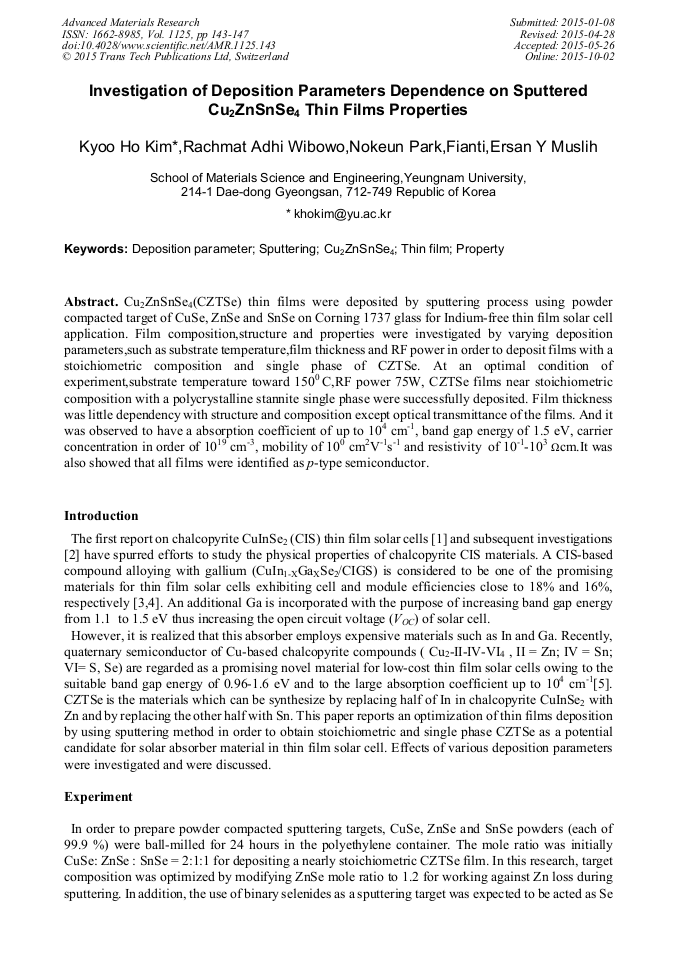

Article Preview

Abstract:

Cu2ZnSnSe4(CZTSe) thin films were deposited by sputtering process using powder compacted target of CuSe, ZnSe and SnSe on Corning 1737 glass for Indium-free thin film solar cell application. Film composition,structure and properties were investigated by varying deposition parameters,such as substrate temperature,film thickness and RF power in order to deposit films with a stoichiometric composition and single phase of CZTSe. At an optimal condition of experiment,substrate temperature toward 1500 C,RF power 75W, CZTSe films near stoichiometric composition with a polycrystalline stannite single phase were successfully deposited. Film thickness was little dependency with structure and composition except optical transmittance of the films. And it was observed to have a absorption coefficient of up to 104 cm-1, band gap energy of 1.5 eV, carrier concentration in order of 1019 cm-3, mobility of 100 cm2V-1s-1 and resistivity of 10-1-103 Ωcm.It was also showed that all films were identified as p-type semiconductor.

You might also be interested in these eBooks
Materials, Industrial, and Manufacturing Engineering Research Advances 2 View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1125)

Pages:

143-147

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1125.143

Citation:

Cite this paper

Online since:

October 2015

Authors:

Kyoo Ho Kim*, Rachmat Adhi Wibowo, Nokeun Park, Fianti Fianti, Ersan Y. Muslih

Keywords:

Cu2ZnSnSe4, Deposition Parameter, Property, Sputtering, Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] S. Wagner, J.L. Shay, P. Migliorato, Appl. Phys. Lett. 25 (1974) 434-434.

Google Scholar

[2] J.L. Shay, S. Wagner, H.M. Kasper, Appl. Phys. Lett. 27 (1975) 89-90.

Google Scholar

[3] M.A. Contreras, K. Ramanathan, J.A. Shama, F. Hasoon, D.L. Young, B. Egass, R. Noufi, Prog. Photovolt. Res. Appl. 13 (2005) 209-216.

Google Scholar

[4] M.A. Green, K. Emery, D.L. King, Y. Hisikawa, W. Warta, Prog. Photovolt: Res. Appl, 14 (2006) 45-51.

DOI: 10.1002/pip.686

Google Scholar

[5] I.D. Olekseyuk, L.D. Gulay, I.V. Dydchak, L.V. Piskach, O.V. Parasyuk, O.V. Marchuk, J. Alloy Comp. 340 (2002) 141-145.

DOI: 10.1016/s0925-8388(02)00006-3

Google Scholar

[6] R.A. Wibowo W.S. Kim, E.S. Lee, B. Munir, K.H. Kim, J. Phys. Chem. Solid. 68 (2007) 1908-(1913).

Google Scholar

[7] S.B. Zhang, S.H. Wei, A. Zunger, Phys. Rev. B 57 (1998) 9642.

Google Scholar

[8] J. Muller, J. Nowoczin, H. Schmitt, Thin Solid Films 496 (2006) 364-370.

Google Scholar

[9] M. Ohring, Materials Science of Thin Films, 2nd Ed. Academic Press, San Diego, 2002, p.396.

Google Scholar

[10] W.D. Callister, Materials Science and Engineering, An Introduction 6th Ed., John Wiley and Sons, New York, 2003, p.718.

Google Scholar

[11] C. Kittel, Introduction to Solid State Physics, 7th Ed., John Wiley and Sons, New York, 1996, p.161.

Google Scholar

[12] A. Luque, S. Hegedus (Eds. ), Handbook of Photovoltaic Science and Engineering, John Willey and Sons, 2003, p.575.

Google Scholar
