Paper Titles
Introduction, Organizing Committee, Editorial Committee
Effects of Board Density and Thickness on Properties of Laminated Floor Panel from Kenaf (Hibiscus cannabinus) High Density Fibreboard (KHDF)
p.1
Surface Morphologies of PVDF-TrFE/MgO Nanocomposite Thin Films and its Effect on the Ferroelectric Properties
p.6
XPS Study of Plasma Modified PVDF-TrFE Films Surface
p.12
Enhancement on the Electrical Properties of PVDF/MgO Nanocomposite Thin Films
p.16
Preliminary Study on Curing of Thick Rubber Article
p.23
Determination of Hydroxymethylfurfural (HMF) in Honey Based on p-Toluidine as a Reagent Using Spectrophotometric Method
p.28
Water Resistance and Tensile Strength of High Density Polyethylene (HDPE) Composites
p.34
ATR-FTIR Analysis on Polymorphism of PVDF/MgO Nanocomposite Thin Films
p.39

XPS Study of Plasma Modified PVDF-TrFE Films Surface

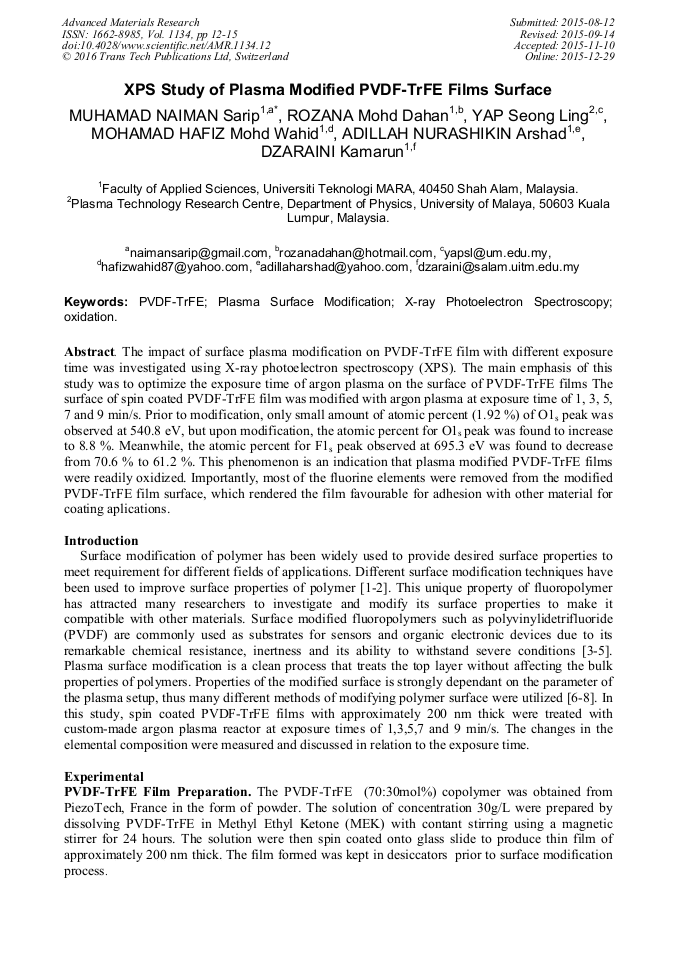

Article Preview

Abstract:

The impact of surface plasma modification on PVDF-TrFE film with different exposure time was investigated using X-ray photoelectron spectroscopy (XPS). The main emphasis of this study was to optimize the exposure time of argon plasma on the surface of PVDF-TrFE films The surface of spin coated PVDF-TrFE film was modified with argon plasma at exposure time of 1, 3, 5, 7 and 9 min/s. Prior to modification, only small amount of atomic percent (1.92 %) of O1s peak was observed at 540.8 eV, but upon modification, the atomic percent for O1s peak was found to increase to 8.8 %. Meanwhile, the atomic percent for F1s peak observed at 695.3 eV was found to decrease from 70.6 % to 61.2 %. This phenomenon is an indication that plasma modified PVDF-TrFE films were readily oxidized. Importantly, most of the fluorine elements were removed from the modified PVDF-TrFE film surface, which rendered the film favourable for adhesion with other material for coating aplications.

You might also be interested in these eBooks
Current Materials for Industrial Technologies and Engineering Practice View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1134)

Pages:

12-15

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1134.12

Citation:

Cite this paper

Online since:

December 2015

Authors:

Muhamad Naiman Sarip*, Rozana Mohd Dahan, Seong Ling Yap, Mohamad Hafiz Mohd Wahid, Adillah Nurashikin Arshad, Dzaraini Kamarun

Keywords:

Oxidation, Plasma Surface Modification, PVDF-TrFE, X-Ray Photoelectron Spectroscopy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J. M. Goddard; J. H. Hotchkiss, Polymer surface modification for the attachment of bioactive compounds, Progress in Polymer Science, vol. 32, pp.698-725, (2007).

DOI: 10.1016/j.progpolymsci.2007.04.002

Google Scholar

[2] L. G. Griffith, Polymeric Biomaterials, Acta Materials, vol. 48, pp.263-277, (2000).

Google Scholar

[3] S. Okuji, H. Boldyryeva, Y. Takeda , N. Kishimoto , Characteristics of poly(vinylidene difluoride) modified by plasma-based ion implantation, p.1557–1560, (2009).

DOI: 10.1016/j.nimb.2009.01.088

Google Scholar

[4] C. A. Nguyen; S.G. Mhaisalkar., Enhanced organic ferroelectric field effect transistor characteristics with strained poly(vinylidene fluoride-trifluoroethylene) dielectric, Organic Electronics, vol. 9, pp.1087-1092, (2008).

DOI: 10.1016/j.orgel.2008.08.012

Google Scholar

[5] M. D. Rozana,M. J. Reece, L. Famiza, M.H. Wahid, A. N Arshad, M.N. Sarip, Effect of PTFE and OTS on the Ferroelectric Properties of PVDF-TrFE Thin Films, World Applied Sciences Journal, vol. 16, pp.1196-1202, (2012).

DOI: 10.3923/jas.2012.681.686

Google Scholar

[6] M. T. Meikun Fan, Maria Luiza Andrade, Alexandre G. Brolo, Silver Nanoparticles on a Plastic Platform for Localized Surface Plasmon Resonance Biosensing, Anal. Chem., vol. 82, p.6350–6352, (2010).

DOI: 10.1021/ac101495m

Google Scholar

[7] Halina Kaczmarek, Jolanta Kowalonek, Aleksandra Szalla, Alina Sionkowska, Surface modification of thin polymeric films by air-plasma or UV-irradiation, Surface Science, vol. 507–510, pp.883-888, (2002).

DOI: 10.1016/s0039-6028(02)01367-5

Google Scholar

[8] N. Vandencasteele ; F. Reniers, Plasma-modified polymer surfaces: Characterization using XPS, Journal of Electron Spectroscopy and Related Phenomena, vol. 178–179, pp.394-408, (2010).

DOI: 10.1016/j.elspec.2009.12.003

Google Scholar

[9] R. M. Dahan, M. N. Sarip, Y. S. Ling, M. H. M. Wahid, A. Nurashikin Arshad, N. Kamarulzaman, D. Kamarun, Surface Modification of Polyvinylidenefluoride-Trifluoroethylene Film Using Argon Gas Plasma, Advanced Materials Research, vol. 626, pp.317-323, (2013).

DOI: 10.4028/www.scientific.net/amr.626.317

Google Scholar

[10] M. N. Sarip, R. M. Dahan, Y. S. Ling, M. H. M. Wahid, A. N. Arshad, D. Kamarun, Effect of Exposure Time on Plasma Modified Polyvinylidenefluoride-Trifluoroethylene (PVDF-TrFE) Film Surfaces, Advanced Materials Research, vol 895, pp.138-141, (2014).

DOI: 10.4028/www.scientific.net/amr.895.138

Google Scholar

[11] Dipankar Mandal, Klaus Muller, Karsten Henkel, Dieter Schmeiβer, The effect of X-ray photoelectron spectroscopy measurement on P(VDF-TrFE) copolymer thin films, Applied Surface Science, vol. 261, pp.209-213, (2012).

DOI: 10.1016/j.apsusc.2012.07.144

Google Scholar
