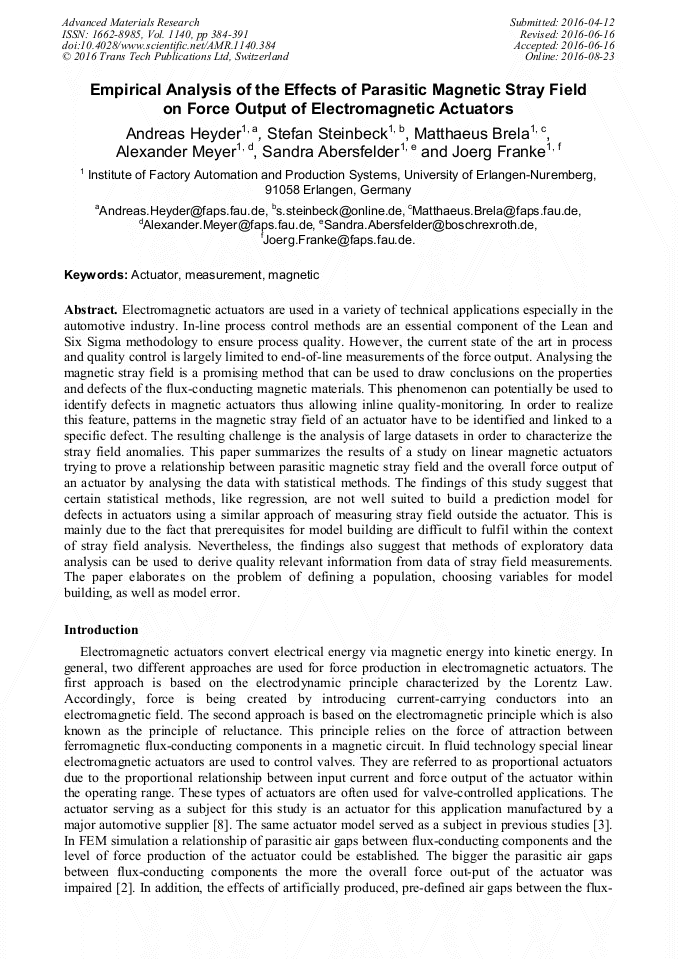

Empirical Analysis of the Effects of Parasitic Magnetic Stray Field on Force Output of Electromagnetic Actuators

Abstract:

Electromagnetic actuators are used in a variety of technical applications especially in the automotive industry. In-line process control methods are an essential component of the Lean and Six Sigma methodology to ensure process quality. However, the current state of the art in process and quality control is largely limited to end-of-line measurements of the force output. Analysing the magnetic stray field is a promising method that can be used to draw conclusions on the properties and defects of the flux-conducting magnetic materials. This phenomenon can potentially be used to identify defects in magnetic actuators thus allowing inline quality-monitoring. In order to realize this feature, patterns in the magnetic stray field of an actuator have to be identified and linked to a specific defect. The resulting challenge is the analysis of large datasets in order to characterize the stray field anomalies. This paper summarizes the results of a study on linear magnetic actuators trying to prove a relationship between parasitic magnetic stray field and the overall force output of an actuator by analysing the data with statistical methods. The findings of this study suggest that certain statistical methods, like regression, are not well suited to build a prediction model for defects in actuators using a similar approach of measuring stray field outside the actuator. This is mainly due to the fact that prerequisites for model building are difficult to full fill within the context of stray field analysis. Nevertheless, the findings also suggest that methods of exploratory data analysis can be used to derive quality relevant information from data of stray field measurements. The paper elaborates on the problem of defining a population, choosing variables for model building, as well as model error.

• Periodical: Advanced Materials Research (Volume 1140)
• Pages: 384-391
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1140.384
• Online since: August 2016
• Authors: Andreas Heyder*, Stefan Steinbeck, Matthaeus Brela, Alexander Meyer, Sandra Abersfelder, Jörg Franke
• Keywords: Actuator, Magnetic, Measurement

References

[1] Kallenbach, E.: Elektromagnete: Grundlagen, Berechnung, Entwurf und Anwendung. 4. Auflage, Wiesbaden, Vieweg+ Teubner Verlag, (2012).

[2] Brela, M.; Gebhardt, H. -J.; Franke, J.: Numerical Analysis of the Manufacturing Impact on Magnetic Stray Fields at Electromagnetic Actuators" WGP-Congress, Erlangen, (2013).

DOI: 10.4028/www.scientific.net/amr.769.27

[3] Brela, M.; Heyder, A.; Dietlein, F.; Markert, J.; Franke, J.; Hauenstein, R.; Wagner, R., Use of automated in-line capable magnetic stray field measurement method for monitoring the value chain quality of magnetic circuits, in Power Electronics, Electrical Drives, Automation and Motion (SPEEDAM), 2014 International Symposium on, vol., no., pp.184-189, 18-20 June (2014).

DOI: 10.1109/speedam.2014.6872033

[4] Tukey, J.W.: Exploratory Data Analysis, Addison-Wesley, 1977, Reading, MA, USA.

[5] Radler, O.; Kellerer, T.; Ströhla, T.; Gadyuchko, A.: Innovatives Qualitätsmanagement für elektro-magneto-mechanische Energiewandler, 8. ETG/GMM-Fachtagung - Innovative Klein- und Mikroantriebstechnik, Wuerzburg, (2013).

[6] Gadyuchko, A.; Kallenbach, E.: Magnetische Messung - Neue Wege der Funktionsprüfung bei der Herstellung von Magnetaktoren, VDI-Tagung - Klein- und Mikroantriebstechnik, Wuerzburg, (2010).

[7] Marinescu, M.: Elektrische und Magnetische Felder. Eine praxisorientierte Einführung., 3., bearbeitete Auflage, Springer Vieweg, Heidelberg, (2012).

DOI: 10.1007/978-3-642-25794-0

[8] Reif, K. (Hrsg. ): Bosch Autoelektrik und Autoelektronik. Bordnetze, Sensoren und elektrische Systeme, 6. Auflage überarbeitete und erweiterte Auflage, Vieweg + Teubner Verlag, Springer Fachmedien Wiesbaden GmbH, (2011).

DOI: 10.1007/978-3-8348-9902-6_1

[9] Wagner, Bernhard: Entwicklung eines vollautomatisierten Prüfstands zur Streufeldanalyse an elektromagnetischen Aktoren, Masterarbeit, Lehrstuhl für Fertigungsautomatisierung und Produktionssystematik, Friedrich-Alexander-Universität-Erlangen-Nürnberg, (2014).
