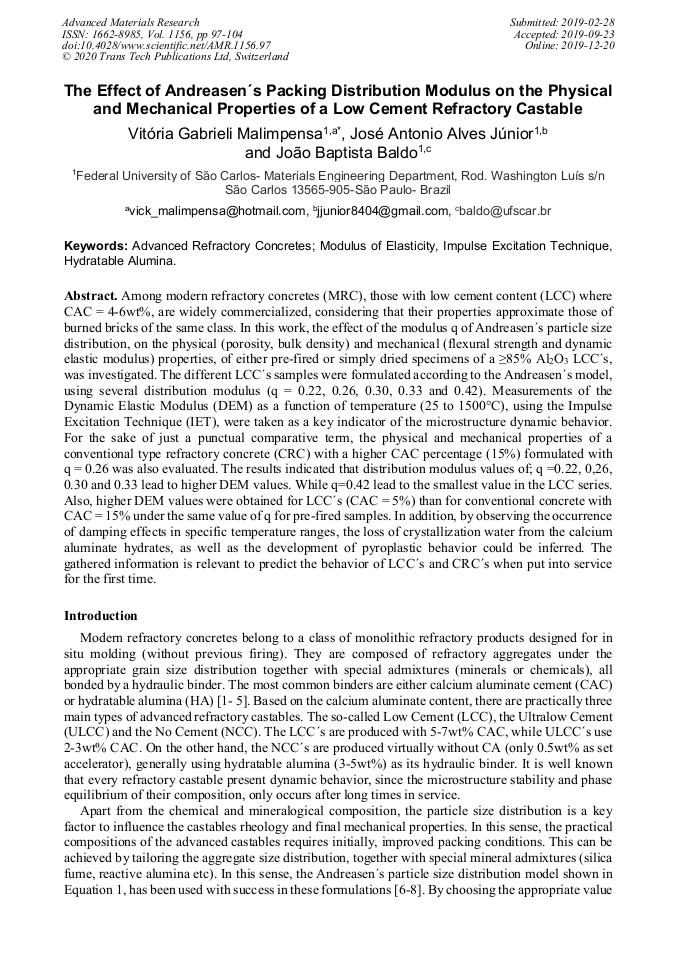

The Effect of Andreasen ́s Packing Distribution Modulus on the Physical and Mechanical Properties of a Low Cement Refractory Castable

Abstract:

Among modern refractory concretes (MRC), those with low cement content (LCC) where CAC = 4-6wt%, are widely commercialized, considering that their properties approximate those of burned bricks of the same class. In this work, the effect of the modulus q of Andreasen ́s particle size distribution, on the physical (porosity, bulk density) and mechanical (flexural strength and dynamic elastic modulus) properties, of either pre-fired or simply dried specimens of a ≥85% Al₂O₃ LCC ́s, was investigated. The different LCC ́s samples were formulated according to the Andreasen ́s model, using several distribution modulus (q = 0.22, 0.26, 0.30, 0.33 and 0.42). Measurements of the Dynamic Elastic Modulus (DEM) as a function of temperature (25 to 1500°C), using the Impulse Excitation Technique (IET), were taken as a key indicator of the microstructure dynamic behavior. For the sake of just a punctual comparative term, the physical and mechanical properties of a conventional type refractory concrete (CRC) with a higher CAC percentage (15%) formulated with q = 0.26 was also evaluated. The results indicated that distribution modulus values of; q =0.22, 0,26, 0.30 and 0.33 lead to higher DEM values. While q=0.42 lead to the smallest value in the LCC series. Also, higher DEM values ​​were obtained for LCC ́s (CAC = 5%) than for conventional concrete with CAC = 15% under the same value of q for pre-fired samples. In addition, by observing the occurrence of damping effects in specific temperature ranges, the loss of crystallization water from the calcium aluminate hydrates, as well as the development of pyroplastic behavior could be inferred. The gathered information is relevant to predict the behavior of LCC ́s and CRC ́s when put into service for the first time.

• Periodical: Advanced Materials Research (Volume 1156)
• Pages: 97-104
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1156.97
• Online since: December 2019
• Authors: Vitoria Gabrieli Malimpensa*, José Antonio Alves Júnior, João Baptista Baldo
• Keywords: Advanced Refractory Concretes, Hydratable Alumina, Impulse Excitation Technique, Modulus of Elasticity

References

[1] Tomsu,F,I., Palco, S. – From Conventional Refractory Castables to Actual High-Quality Hydraulic Bonded Products – Development during the Last Forty Years,- Interceram – International Ceramic Review, 60 3-4 – pp.202-207- (2011).

[2] C. Parr, H. Fryda and Ch. Wohrmeyer – Recwent Advances in Refractories Aluminate Binders and calcvium Aluminate Bonded High Performance Monolithic Castables, – The Journal of Southern African Institute of Mining and Metallurgy – vol. 113 pp-619-629 – (2013).

[3] W. E. Lee, W. Vieira, S. Zhang, K. G. Ahari, H. Sarpoolaky and C. Parr, ―Castable Refractory Concrete, Intern. Mat. Rev., 46 [3] 145-167 (2001).

DOI: 10.1179/095066001101528439

[4] B. Long, A. Buhr, I.-H. Jung, S. Jin, H. Harmuth, J. Dutton – Comparison of Cement- and Hydratable Alumina-Bonded Alumina-Spinel Materials for Steel Ladle Purging Plugs, - Refractories WORLDFORUM 9 pp- 101-106 – [3] - (2017).

[5] Zhou Ningsheng, Hu Shuhe, Zhang Sanhua and Liu Jiehua – Advances in Modern Refractory Castables, – in Tehran International Conference on Refractories, 4-6 May 2004 –pp- 141.

[6] Andreasen, A.H.M., and Andersen, J., Ueber die Beziehung zwischen Kornabstufung und Zwischenraum in Produkten aus losen Koernern (mit einigen Experimenten), - Kolloid-Z., 50, pp - 217-228 (1930).

DOI: 10.1007/bf01422986

[7] B. Myhre and A. M. Hundere, The Use of Particle Size Distribution in Development of Refractory Castables,- Proc. ALAFAR 25 (Bariloche, Argentina, 1996) pp - 33-42.

[8] Myhre, B. -Let's make a castable, – Refractories Applications and News –Vol.3 - pp.3-4(2008).

[9] N. Bunt, C. Revais, and M. Vialle - Additives in Calcium Aluminate Cement Containing Castables"- Proc. UNITECR, 97 (New Orleans, USA, 1997) 1347-54.

[10] A. Hey, S. J. Gregory, G. S. Hutchesson, D. M. Pickard, D. S. Taylor, and S. B. Tomlinson-Applications of Engineered Castable Systems to Refractory Linings in the Steel Industry,, 39th Int. Coll. on Refr. in Stahl & Eisen Spezial, 10 104-107 (1996).

[11] J. B. Baldo and A. C. Morelli, The Effect of the Matrix Mass Fraction and the Deflocculant Type on the Development of a Self-Flowing Low Cement Refractory Concrete", Proc. UNITECR, 95 (Kyoto, Japan, 1995) 351-56.

[12] E. Nonnet, N. Lequeux and P. Boch, Elastic Properties of High Alumina Cement Castables from Room Temperature to 1600˚C,, J. Euro. Ceram. Soc. 19 1575-1583 (1999).

DOI: 10.1016/s0955-2219(98)00255-6

[13] Tonnensen, T, Telle, R, Evaluation of Thermal Shock by Resonant Frequency and Damping Method – In Proceedings of the 49 Internationales Feuerfest Kolloquium Aachen, Germany (2006) 133,137.

[14] Erauw,J. P, Cambier, F, Lataste, E, Olagnon, C, Assesment of the Effect of Thermal Cycle on the High Temperature Stiffness and Damping Characteristics of Electrofused Refractories by the Impulse Excitation Technique, Stahl und Eisen Special Edition, USA (2005) 201-205.

[15] Tonnesen, T. and Telle, R. – Evaluation of Thermal Shock Damage in Castables by a Resonant Frequency and Damping Method, - in 49 - Achen International Refractories Colloquium p.136 – 136 – (2006).

[16] A. Terzic´, L. Pavlovic´- Corundum and Bauxite-based Concretes – Non-destructive Testing of Mechanical Properties and its Correlation withthe Sintering Process, - refractories WORLDFORUM 2 [2] – 80-85 - (2010).

[17] Stefan Schachner, Pierre Meunier, Shengli Jin, Harald Harmuth, Romain Techer, Dietmar Gruber- Advanced Creep Testing of Refractories Providing New Insight into Material Behavior, – Refractories World Forum - Volume 10, Issue 2, Pages 63 – 67 – (2018).
