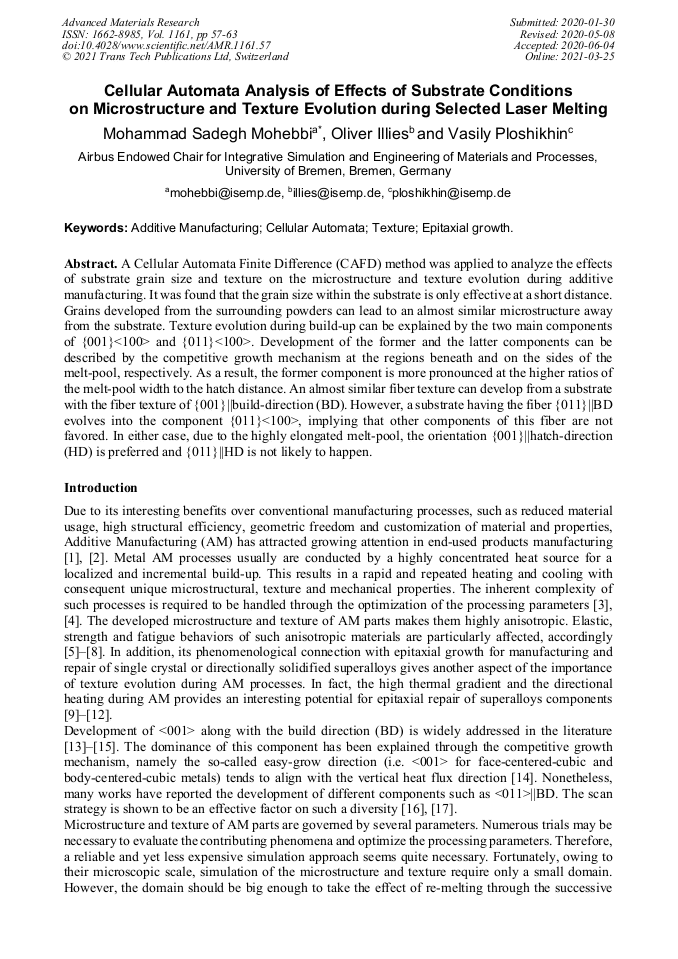

Cellular Automata Analysis of Effects of Substrate Conditions on Microstructure and Texture Evolution during Selected Laser Melting

Abstract:

A Cellular Automata Finite Difference (CAFD) method was applied to analyze the effects of substrate grain size and texture on the microstructure and texture evolution during additive manufacturing. It was found that the grain size within the substrate is only effective at a short distance. Grains developed from the surrounding powders can lead to an almost similar microstructure away from the substrate. Texture evolution during build-up can be explained by the two main components of {001}<100> and {011}<100>. Development of the former and the latter components can be described by the competitive growth mechanism at the regions beneath and on the sides of the melt-pool, respectively. As a result, the former component is more pronounced at the higher ratios of the melt-pool width to the hatch distance. An almost similar fiber texture can develop from a substrate with the fiber texture of {001}||build-direction (BD). However, a substrate having the fiber {011}||BD evolves into the component {011}<100>, implying that other components of this fiber are not favored. In either case, due to the highly elongated melt-pool, the orientation {001}||hatch-direction (HD) is preferred and {011}||HD is not likely to happen.

• Periodical: Advanced Materials Research (Volume 1161)
• Pages: 57-63
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1161.57
• Online since: March 2021
• Authors: Mohammad Sadegh Mohebbi*, Oliver Illies, Vasily Ploshikhin
• Keywords: Additive Manufacturing, Cellular Automata, Epitaxial Growth, Texture

References

[1] L. Yang et al., Additive Manufacturing of Metals: The Technology, Materials, Design and Production. Cham: Springer International Publishing, (2017).

[2] C. Buchanan and L. Gardner, Metal 3D printing in construction: A review of methods, research, applications, opportunities and challenges,, Engineering Structures, vol. 180, p.332–348, Feb. 2019,.

DOI: 10.1016/j.engstruct.2018.11.045

[3] W.E. Frazier, Metal Additive Manufacturing: A Review,, J. of Materi Eng and Perform, vol. 23, no. 6, p.1917–1928, Jun. 2014,.

DOI: 10.1007/s11665-014-0958-z

[4] M. Gouge and P. Michaleris, Eds., Thermo-mechanical modeling of additive manufacturing. Oxford Cambridge, MA: BH, Butterworth-Heinemann, an imprint of Elsevier, (2017).

[5] N.E. Dowling, Mechanical Behavior of Materials: Engineering Methods for Deformation, Fracture, and Fatigue. Pearson Prentice Hall, (2007).

[6] J.J. Lewandowski and M. Seifi, Metal Additive Manufacturing: A Review of Mechanical Properties,, Annu. Rev. Mater. Res., vol. 46, no. 1, p.151–186, Jul. 2016,.

DOI: 10.1146/annurev-matsci-070115-032024

[7] T. Niendorf, S. Leuders, A. Riemer, H.A. Richard, T. Tröster, and D. Schwarze, Highly Anisotropic Steel Processed by Selective Laser Melting,, Metall and Materi Trans B, vol. 44, no. 4, p.794–796, Aug. 2013,.

DOI: 10.1007/s11663-013-9875-z

[8] H. Schwab, F. Palm, U. Kühn, and J. Eckert, Microstructure and mechanical properties of the near-beta titanium alloy Ti-5553 processed by selective laser melting,, Materials & Design, vol. 105, p.75–80, Sep. 2016,.

DOI: 10.1016/j.matdes.2016.04.103

[9] A. Basak, R. Acharya, and S. Das, Additive Manufacturing of Single-Crystal Superalloy CMSX-4 Through Scanning Laser Epitaxy: Computational Modeling, Experimental Process Development, and Process Parameter Optimization,, Metall and Mat Trans A, vol. 47, no. 8, p.3845–3859, Aug. 2016,.

DOI: 10.1007/s11661-016-3571-y

[10] R. Acharya et al., Additive Manufacturing and Characterization of René 80 Superalloy Processed Through Scanning Laser Epitaxy for Turbine Engine Hot-Section Component Repair: Additive Manufacturing and Characterization of,, Adv. Eng. Mater., vol. 17, no. 7, p.942–950, Jul. 2015,.

DOI: 10.1002/adem.201400589

[11] R. Acharya and S. Das, Additive Manufacturing of IN100 Superalloy Through Scanning Laser Epitaxy for Turbine Engine Hot-Section Component Repair: Process Development, Modeling, Microstructural Characterization, and Process Control,, Metall and Mat Trans A, vol. 46, no. 9, p.3864–3875, Sep. 2015,.

DOI: 10.1007/s11661-015-2912-6

[12] Y. Tian et al., Rationalization of Microstructure Heterogeneity in INCONEL 718 Builds Made by the Direct Laser Additive Manufacturing Process,, Metall and Mat Trans A, vol. 45, no. 10, p.4470–4483, Sep. 2014,.

DOI: 10.1007/s11661-014-2370-6

[13] S.S. Al-Bermani, M.L. Blackmore, W. Zhang, and I. Todd, The Origin of Microstructural Diversity, Texture, and Mechanical Properties in Electron Beam Melted Ti-6Al-4V,, Metall and Mat Trans A, vol. 41, no. 13, p.3422–3434, Dec. 2010,.

DOI: 10.1007/s11661-010-0397-x

[14] A.A. Antonysamy, J. Meyer, and P.B. Prangnell, Effect of build geometry on the β-grain structure and texture in additive manufacture of Ti6Al4V by selective electron beam melting,, Materials Characterization, vol. 84, p.153–168, Oct. 2013,.

DOI: 10.1016/j.matchar.2013.07.012

[15] F. Geiger, K. Kunze, and T. Etter, Tailoring the texture of IN738LC processed by selective laser melting (SLM) by specific scanning strategies,, Materials Science and Engineering: A, vol. 661, p.240–246, Apr. 2016,.

DOI: 10.1016/j.msea.2016.03.036

[16] T. Ishimoto, K. Hagihara, K. Hisamoto, S.-H. Sun, and T. Nakano, Crystallographic texture control of beta-type Ti–15Mo–5Zr–3Al alloy by selective laser melting for the development of novel implants with a biocompatible low Young's modulus,, Scripta Materialia, vol. 132, p.34–38, Apr. 2017,.

DOI: 10.1016/j.scriptamat.2016.12.038

[17] L. Thijs, K. Kempen, J.-P. Kruth, and J. Van Humbeeck, Fine-structured aluminium products with controllable texture by selective laser melting of pre-alloyed AlSi10Mg powder,, Acta Materialia, vol. 61, no. 5, p.1809–1819, Mar. 2013,.

DOI: 10.1016/j.actamat.2012.11.052

[18] L.-X. Lu, N. Sridhar, and Y.-W. Zhang, Phase field simulation of powder bed-based additive manufacturing,, Acta Materialia, vol. 144, p.801–809, Feb. 2018,.

DOI: 10.1016/j.actamat.2017.11.033

[19] T.M. Rodgers, J.D. Madison, and V. Tikare, Simulation of metal additive manufacturing microstructures using kinetic Monte Carlo,, Computational Materials Science, vol. 135, p.78–89, Jul. 2017,.

DOI: 10.1016/j.commatsci.2017.03.053

[20] O. Zinovieva, A. Zinoviev, and V. Ploshikhin, Three-dimensional modeling of the microstructure evolution during metal additive manufacturing,, Computational Materials Science, vol. 141, p.207–220, Jan. 2018,.

DOI: 10.1016/j.commatsci.2017.09.018

[21] M. Rappaz and Ch.-A. Gandin, Probabilistic modelling of microstructure formation in solidification processes,, Acta Metallurgica et Materialia, vol. 41, no. 2, p.345–360, Feb. 1993,.

DOI: 10.1016/0956-7151(93)90065-z

[22] Ch.-A. Gandin, M. Rappaz, and R. Tintillier, Three-dimensional probabilistic simulation of solidification grain structures: Application to superalloy precision castings,, MTA, vol. 24, no. 2, p.467–479, Feb. 1993,.

DOI: 10.1007/bf02657334

[23] J. Goldak, A. Chakravarti, and M. Bibby, A new finite element model for welding heat sources,, MTB, vol. 15, no. 2, p.299–305, Jun. 1984,.

DOI: 10.1007/bf02667333

[24] H.E. Helmer, C. Körner, and R.F. Singer, Additive manufacturing of nickel-based superalloy Inconel 718 by selective electron beam melting: Processing window and microstructure,, J. Mater. Res., vol. 29, no. 17, p.1987–1996, Sep. 2014,.

DOI: 10.1557/jmr.2014.192

[25] T.M. Butler, C.A. Brice, W.A. Tayon, S.L. Semiatin, and A.L. Pilchak, Evolution of Texture from a Single Crystal Ti-6Al-4V Substrate During Electron Beam Directed Energy Deposition,, Metall and Mat Trans A, vol. 48, no. 10, p.4441–4446, Oct. 2017,.

DOI: 10.1007/s11661-017-4219-2

[26] X. Zhou et al., Textures formed in a CoCrMo alloy by selective laser melting,, Journal of Alloys and Compounds, vol. 631, p.153–164, May 2015,.

DOI: 10.1016/j.jallcom.2015.01.096
