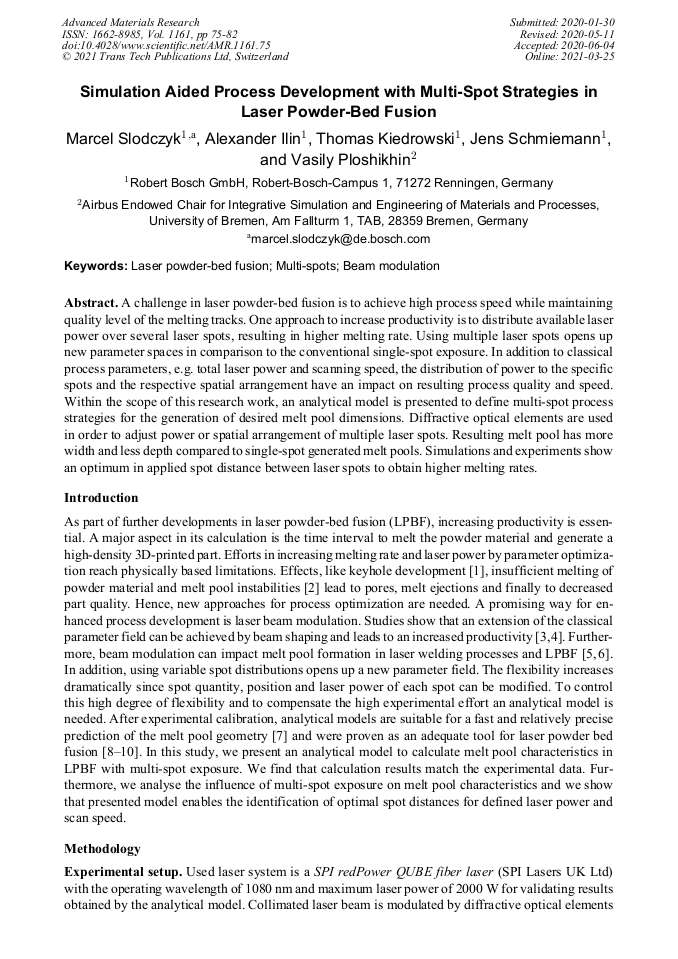

Simulation Aided Process Development with Multi-Spot Strategies in Laser Powder-Bed Fusion

Abstract:

A challenge in laser powder-bed fusion is to achieve high process speed while maintaining quality level of the melting tracks. One approach to increase productivity is to distribute available laser power over several laser spots, resulting in higher melting rate. Using multiple laser spots opens up new parameter spaces in comparison to the conventional single-spot exposure. In addition to classical process parameters, e.g. total laser power and scanning speed, the distribution of power to the specific spots and the respective spatial arrangement have an impact on resulting process quality and speed. Within the scope of this research work, a physically based model is presented to define multi-spot process strategies for the generation of desired melt pool dimensions. Diffractive optical elements are used in order to adjust power or spatial arrangement of multiple laser spots. Resulting melt pool has more width and less depth compared to single-spot generated melt pools. Simulations and experiments show an optimum in applied spot distance between laser spots to obtain higher melting rates.

• Periodical: Advanced Materials Research (Volume 1161)
• Pages: 75-82
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1161.75
• Online since: March 2021
• Authors: Marcel Slodczyk*, Alexander Ilin, Thomas Kiedrowski, Jens Schmiemann, Vasily Ploshikhin
• Keywords: Beam Modulation, Laser Powder Bed Fusion (LPBF), Multi-Spots

References

[1] W.E. King, H.D. Barth, V.M. Castillo, G.F. Gallegos, J.W. Gibbs, D.E. Hahn, C. Kamath, and A. M. Rubenchik. Observation of keyhole-mode laser melting in laser powder-bed fusion additive manufacturing. Journal of Materials Processing Technology, (2014).

DOI: 10.1016/j.jmatprotec.2014.06.005

[2] I. Yadroitsev, A. Gusarov, I. Yadroitsava, and I. Smurov. Single track formation in selective laser melting of metal powders. Journal of Materials Processing Technology, Vol. 210(12):1624-1631, (2010).

DOI: 10.1016/j.jmatprotec.2010.05.010

[3] A.V. Gusarov, S.N. Grigoriev, M.A. Volosova, Y.A. Melnik, A. Laskin, D.V. Kotoban, and A.A. Okunkova. On productivity of laser additive manufacturing. Journal of Materials Processing Technology, (2018).

DOI: 10.1016/j.jmatprotec.2018.05.033

[4] H. Schleifenbaum, W. Meiners, and K. Wissenbach. Towards rapid manufacturing for series production: an ongoing process report on increasing the build rate of selective laser melting (slm). In International Conference on Rapid Prototyping & Rapid Tooling & Rapid Manufacturing, Berlin, Germany, (2008).

DOI: 10.1201/b15961-54

[5] M. Rasch, C. Roider, S. Kohl, J. Strauß, N. Maurer, K. Y. Nagulin, and M. Schmidt. Shaped laser beam profiles for heat conduction welding of aluminium-copper alloys. Optics and Lasers in Engineering, Vol. 115:179-189, (2019).

DOI: 10.1016/j.optlaseng.2018.11.025

[6] M. Slodczyk, A. Ilin, T. Kiedrowski, and V. Ploshikhin. Influence of multi-spot exposure of powder bed on melt pool stability in selective laser melting. In Laser 3D Manufacturing VI, Vol. 10909. International Society for Optics and Photonics, (2019).

DOI: 10.1117/12.2508210

[7] T.W. Eagar and N.S. Tsai. Temperature fields produced by traveling distributed heat sources. Welding journal, Vol. 62(12):346-355, (1983).

[8] F. Verhaeghe, T. Craeghs, J. Heulens, and L. Pandelaers. A pragmatic model for selective laser melting with evaporation. Acta Materialia, Vol. 57(20):6006-6012, (2009).

DOI: 10.1016/j.actamat.2009.08.027

[9] R. Fabbro. Scaling laws for the laser welding process in keyhole mode. Journal of Materials Processing Technology, Vol. 264:346-351, (2019).

DOI: 10.1016/j.jmatprotec.2018.09.027

[10] A.M. Rubenchik, W.E. King, S.S. Wu. Scaling laws for the additive manufacturing. Journal of Materials Processing Technology, Vol. 257:234-243, (2018).

DOI: 10.1016/j.jmatprotec.2018.02.034

[11] D. Rosenthal. The theory of moving sources of heat and its application of metal treatments. Transactions of ASME, Vol. 68:849-866, (1946).

DOI: 10.1115/1.4018626

[12] D. Mikhaylov, T. Kiedrowski, and A. F. Lasagni. Heat accumulation ef- fects during ultrashort pulse laser ablation with spatially shaped beams. Journal of Laser Mi- cro/Nanoengineering, Vol. 13(2), (2018).

DOI: 10.2961/jlmn.2018.02.0008

[13] V., Michailov, V. Karkhin, P. Petrov. Principles of welding. St. Petersburg: Polytechnic University Publishing, 2016, pp.107-109.

[14] C. Limmaneevichitr and S. Kou. Experiments to simulate effect of marangoni convection on weld pool shape. Welding Journal -New York-, Vol. 79(8), (2000).
