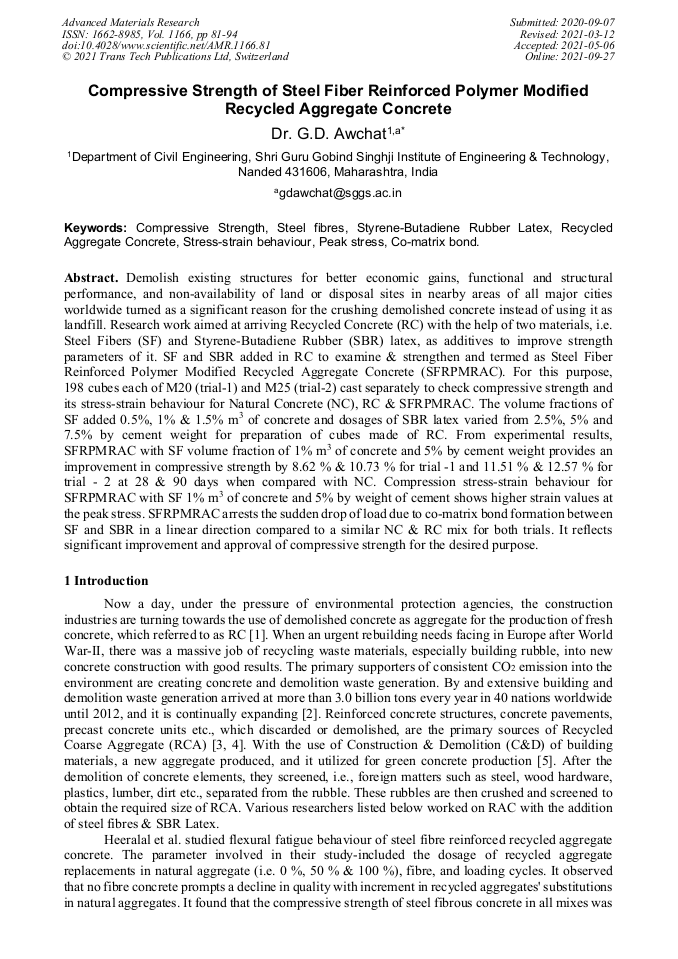

Compressive Strength of Steel Fiber Reinforced Polymer Modified Recycled Aggregate Concrete

Abstract:

Demolish existing structures for better economic gains, functional and structural performance, and non-availability of land or disposal sites in nearby areas of all major cities worldwide turned as a significant reason for the crushing demolished concrete instead of using it as landfill. Research work aimed at arriving Recycled Concrete (RC) with the help of two materials, i.e. Steel Fibers (SF) and Styrene-Butadiene Rubber (SBR) latex, as additives to improve strength parameters of it. SF and SBR added in RC to examine & strengthen and termed as Steel Fiber Reinforced Polymer Modified Recycled Aggregate Concrete (SFRPMRAC). For this purpose, 198 cubes each of M20 (trial-1) and M25 (trial-2) cast separately to check compressive strength and its stress-strain behaviour for Natural Concrete (NC), RC & SFRPMRAC. The volume fractions of SF added 0.5%, 1% & 1.5% m³ of concrete and dosages of SBR latex varied from 2.5%, 5% and 7.5% by cement weight for preparation of cubes made of RC. From experimental results, SFRPMRAC with SF volume fraction of 1% m³ of concrete and 5% by cement weight provides an improvement in compressive strength by 8.62 % & 10.73 % for trial -1 and 11.51 % & 12.57 % for trial - 2 at 28 & 90 days when compared with NC. Compression stress-strain behaviour for SFRPMRAC with SF 1% m³ of concrete and 5% by weight of cement shows higher strain values at the peak stress. SFRPMRAC arrests the sudden drop of load due to co-matrix bond formation between SF and SBR in a linear direction compared to a similar NC & RC mix for both trials. It reflects significant improvement and approval of compressive strength for the desired purpose.

• Periodical: Advanced Materials Research (Volume 1166)
• Pages: 81-94
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1166.81
• Online since: September 2021
• Authors: Ganesh Awchat*
• Keywords: Co-Matrix Bond, Compressive Strength, Peak Stress, Recycle Aggregate Concrete, Steel Fiber, Stress-Strain Behavior, Styrene-Butadiene Rubber Latex

References

[1] Kumatha R. Vijai K. Strength of Concrete Incorporating Aggregates Recycled from Demolition Waste, Asian Research Publishing Network Journal of Engineering and Applied Sciences, 5(2010) 64-71.

[2] M. Behera. S.K. Bhattacharyya, A.K. Minocha, R. Deoliya, S. Maiti, Recycled aggregate from C&D waste & its use in concrete – A break through towards sustainability in construction sector: A review, Construction and Building Materials, 68 (2014) 501-516.

DOI: 10.1016/j.conbuildmat.2014.07.003

[3] Padmini A. K, Mathews, M. S, Ramamurthy K, Behaviour of Recycled Aggregate Concrete, Indian Concrete Institute Journal, (2000) 35-39.

[4] Parekh D. N, Modhera C. D, Assessment of Recycled Aggregate Concrete, J. of Engg Research and Studies, 2(2011)1-9.

[5] S.S.R. Teja Prathipati C.B.K. Rao, N. R. Dakshina Murthy, Mechanical Behaviour of Hybrid Fiber Reinforced High Strength Concrete with graded fibers, Int. Journal of Engg., Transactions: B Applications 33 (2000)1465-1471.

[6] Heeralal M, Ratish Kumar, P. Rao, Y. V, Flexural Fatigue Characteristics of Steel Fiber Reinforced Recycled Aggregate Concrete (SFRRAC), FACTA Universities, Arch. & Civil Engg, 7(2009) 19-33.

DOI: 10.2298/fuace0901019h

[7] Akinkurolere O. O, Experimental Investigation on the Influence of Steel Fiber on the Compressive and Tensile Strength of Recycled Aggregate Concrete, Medwell Journals,(2010) 264-268.

DOI: 10.3923/jeasci.2010.264.268

[8] Zhao-xia C, Xing–guo W, Jian –Hui Y, Experimental Study on Recycled Steel Fiber Concrete, Int. Conference on Elect. and Civil Engg, (2011) 2215-2218.

[9] Banthia, N., Chan, C., Use of Recycled Aggregate in Plain and Fiber Reinforced Shotcrete, Journal of Concrete International,(2000) 41-55.

[10] Barluenga G., Olivares F. H, SBR Latex Modified Mortar Rheology and Mechanical Behaviour, Cem. and Con. Research, 34 (2004) 527-535.

DOI: 10.1016/j.cemconres.2003.09.006

[11] Hwang, Eui-Hwan Ko, Y. S., Jeon, Jong-Ki, Effect of Polymer Cement Modifiers on Mechanical and Physical Properties of Polymer Modified Mortar using Recycled Waste Concrete Fine Aggregate, J. of Industrial Engg and Chemicals, 13(2007) 387-394.

DOI: 10.1016/j.jiec.2007.11.002

[12] Rajkumar D, Vidilvelli B, Performances of SBR Latex Modified Feerocement for Repairing Reinforced Concrete Beams, Australian J. of Basic and Applied Sciences, 4 (2010) 520-531.

[13] Bhikshma V, Jagannandha Rao, Balaji B., An Experimental Study on Behaviour of Polymer Cement Concrete, Asian J. of Civil Engineering (Building and Housing), 11 (2010) 563-373.

[14] Wang R., Lackner R, Wang P. M, Effect of Styrene Butadiene Rubber Latex on Mechanical Properties of Cementitious Materials, Highlighted by Means of Nanoindentation, An International J. of Experimental Mechanics, 47(2011) 117-126.

DOI: 10.1111/j.1475-1305.2008.00549.x

[15] Radhakrishnan R., Syam Rakish V, Prasad Verma, C. K. Thampan, Performance of Styrene Butadiene Rubber in Concrete Repair - an Experimental Study, Kerala Council for Science Technology and Environment Journal, (1999).

[16] Sivakumar M. V. N, Effect of Polymer Modification on Mechanical and Structural Properties of Concrete - an experimental Investigation, Int. J. of Civil and Structural Engg, 1 (2011) 732-740.

[17] BIS: 383, Coarse and Fine Aggregate for Concrete-Specification (Third Revision), New Delhi, (2016) 2-7.

[18] BIS: 8112, Ordinary Portland Cement, 43 grade — Specification (Second Revision), New Delhi, (1989)1-4.

[19] ASTM A820/A820M-16, Standard Specifications for Steel Fibers for Fiber Reinforced Concrete, ASTM International, (2016)1-4.

[20] BIS: 456, Plain and Reinforced Concrete- Code of Practice(Fourth Edition), New Delhi, (2000)13-23.

[21] BIS: 10262, Guidelines for concrete mix design proportioning [CED 2: Cement and Concrete], New Delhi, (2009)1-10.

[22] SP: 23, Handbook on Concrete Mixes [CED 2: Cement and Concrete], Bureau of Indian Standards, New Delhi, (1982) 93-106.

[23] K.Ravande, Recycled Concrete- An Alternative Material of the Twenty First Century for Construction, International Seminar on Civil Eng. Practices in the Twenty-First Century, Institution of Engineers (India),Roorkee, (1996) 964-973.

[24] Etxeberria, M., Vazquez, E., Mari, A., Berra, M., Influence of Amount of Recycled Coarse Aggregates and Production Process on Properties of Recycled Aggregate Concrete, Cement and Concrete Research, 37(2007)735-742.

DOI: 10.1016/j.cemconres.2007.02.002

[25] Salem, R.M., Burdette, E. G., Role of Chemical and Mineral Admixture on Physical Properties and Frost-Resistance of Recycled Aggregate Concrete, ACI Materials Journal, 95(1998)558 - 563.

DOI: 10.14359/398

[26] Shetty, M. S., Concrete Technology: Theory and Practice, S. Chand and Company Limited, New Delhi, (2011) 451-480.
