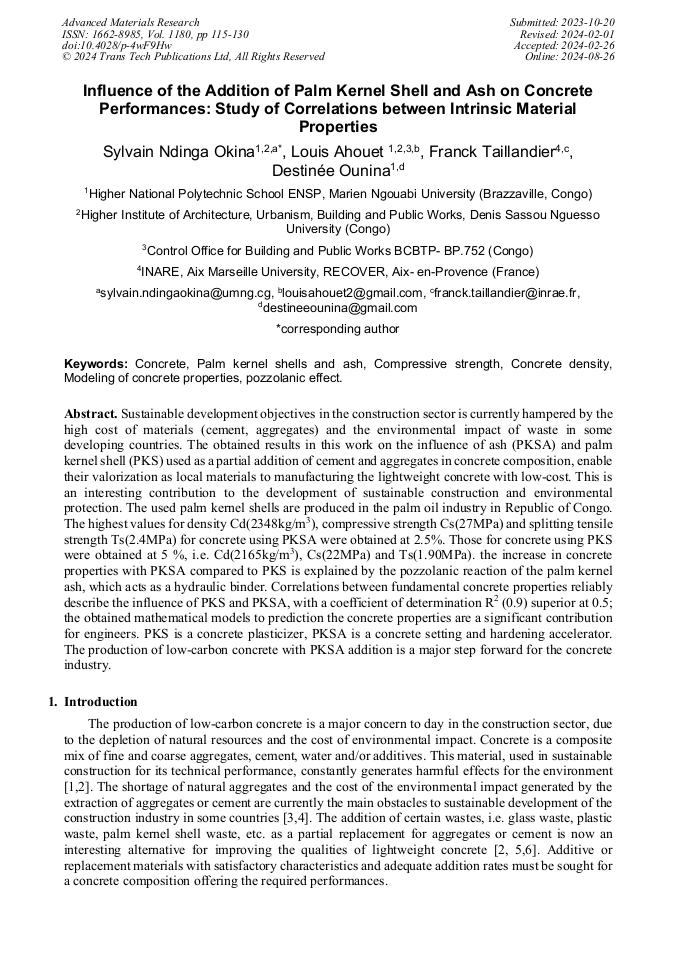

Influence of the Addition of Palm Kernel Shell and Ash on Concrete Performances: Study of Correlations between Intrinsic Material Properties

Abstract:

Sustainable development objectives in the construction sector is currently hampered by the high cost of materials (cement, aggregates) and the environmental impact of waste in some developing countries. The obtained results in this work on the influence of ash (PKSA) and palm kernel shell (PKS) used as a partial addition of cement and aggregates in concrete composition, enable their valorization as local materials to manufacturing the lightweight concrete with low-cost. This is an interesting contribution to the development of sustainable construction and environmental protection. The used palm kernel shells are produced in the palm oil industry in Republic of Congo. The highest values for density Cd(2348kg/m³), compressive strength Cs(27MPa) and splitting tensile strength Ts(2.4MPa) for concrete using PKSA were obtained at 2.5%. Those for concrete using PKS were obtained at 5 %, i.e. Cd(2165kg/m³), Cs(22MPa) and Ts(1.90MPa). the increase in concrete properties with PKSA compared to PKS is explained by the pozzolanic reaction of the palm kernel ash, which acts as a hydraulic binder. Correlations between fundamental concrete properties reliably describe the influence of PKS and PKSA, with a coefficient of determination R² (0.9) superior at 0.5; the obtained mathematical models to prediction the concrete properties are a significant contribution for engineers. PKS is a concrete plasticizer, PKSA is a concrete setting and hardening accelerator. The production of low-carbon concrete with PKSA addition is a major step forward for the concrete industry.

• Periodical: Advanced Materials Research (Volume 1180)
• Pages: 115-130
• DOI: https://doi.org/10.4028/p-4wF9Hw
• Online since: August 2024
• Authors: Sylvain Ndinga Okina*, Louis Ahouet, Franck Taillandier, Destinée Ounina
• Keywords: Ash, Compressive Strength, Concrete, Concrete Density, Modeling of Concrete Properties, Palm Kernel Shell, Pozzolanic Effect

References

[1] D.O. Oyejobi, M. Jameel, N.H.R. Sulong, H.A. Ibrahim, Prediction of optimum compressive strength of light-weight concrete containing Nigeria palm kernel shells, Journal of King Saud University-Engineering Sciences, 32, 303-309 (2019)

DOI: 10.1016/j.jksues.2019.04.001

[2] S. Ndinga Okina, L. Ahouet, D.G. Etou, Evaluation of Concrete Performances Based Recycled Aggregates of Road and Build Demolition for a Formal Using in the Republic of Congo, Saudi Journal of Engineering and Technology (2023), Page267-273

DOI: 10.36348/sjet.2023.v08i11.001

[3] S. Ndinga Okina, L. Ahouet, Q.A. Hoang, N.E. Mouanda Mouila, Assessing of the performances of hydraulic concrete composed with used glass powder for sustainability of constructions in Congo, J. Mater. Environ. Sci. (2021), Volume 12.

[4] C. Belebchouche, K. Moussaceb, S.-E.Bensebti, A. Aït-Mokhtar, A. Hammoudi, S. Czarnecki, Mechanical and microstructural properties of ordinary concrete with high additions of crushed glass, Materials (2021), 14,1872. doi.org/.

DOI: 10.3390/ma14081872

[5] U. Johnson Alengaram, B. Abdullah Al Muhit, M. Zamin B.Jumaat, Utilization of oil palm kernel shell as lightweight aggregate in concrete – A review, Construction and Building Materials, Vol.38, (2013), pp.161-172. Doi.org/

DOI: 10.1016/j.conbuildmat.2012.08.026

[6] C.C. Okpala, Palm kernel shell as a lightweight aggregate in concrete. Build Environ, (1990). Doi.org/

DOI: 10.1016/0360-1323(90)90002-9

[7] G.M. Godonou Gibigayé, Study of formulation of concretes of palm kernel shells, edd.Univ.Européennes (2015).

[8] U. Azunna Sunday, Compressive strength of concrete with palm kernel shell as a partial replacement for coarse aggregate, SN Applied Sciences (2019) 1:342

DOI: 10.1007/s42452-019-0334-6

[9] A. Acheampong, M. Adom-Asamoah, J. Ayarkwa, R.O. Afrifa, Comparative Study of the Physical Properties of Palm Kernel Shells Concrete and Normal Weight Concrete in Ghana, Journal of Science and Multidisciplinary Research (2013), Volume 5, Number 1.

[10] U. Eziefula, H.E. Opara, C.U. Anya, Mechanical properties of palm kernel shell concrete in comparison with periwinkle shell concrete, Malaysian journal of Civil Engineering 29(1) : (2017),1-14 .

[11] H. Danso, F. Appiah-Agyei, Size variation of palm kernel shells as replacement of coarse aggregate for lightweight concrete production, Open Journal of Civil Engineering,11 (2021),153-165. doi.org/

DOI: 10.4236/ojce.2021.111010

[12] M.A. Kareem, A.A. Raheem, K.O. Oriola, R. Abdulwahab, A review on application of oil palm shell as aggregate in concrete-Towards realizing a pollution-free environment and sustainable concrete, Environmental Challenges(2022), Vol.8. Doi.org/

DOI: 10.1016/j.envc.2022.100531

[13] Y. Traore, A. Messan, F. Tsobnang, J. Gerard, Influence of palm nut shell processing on the physical-mechanical properties of lightweight concretes, Colloque Ecomatériaux MATERIAUX 2014, 24-28 (2014), Montpellier France.

[14] C.G.M.A. Mannan, Engineering properties of concrete with oil palm shell as coarse aggregate, Construction and Building Materials (2002), Vol.16, pp.29-34.

DOI: 10.1016/s0950-0618(01)00030-7

[15] C.A. Amagu, B.O. Enya, J. Kodama, M. Sharifzadeh, Impacts of Addition of Palm Kernel Shells Content on Mechanical Properties of Compacted Shale Used as an Alternative Landfill Liner, Special Issue Sustainable Concrete for the Green Construction Industry, Adv. in Civil engineering, Hindawi (2022); doi.org/

DOI: 10.1155/2022/9772816

[16] F.A. Olutoge, H.A. Quadri, O.S. Olafusi, Investigation of the strength properties of palm kernel shell ash concrete. Engineering, Technology & Applied Science Research 2(6), (2012),315-319.

DOI: 10.48084/etasr.238

[17] F.A. Oluwadamilola, O. ATA, Compressive Strength of Concrete Containing Palm Kernel Shell Ash, American Journal of Engineering Research (2016), Volume5, Issue12pp.32-36.

[18] E.M. Ordway, D.J. Sonwa, P. Levang, F. Mboringong, L. Miaro III, R.L. Naylor, R.N. Nkongho, Development of the palm oil sector in the Congo Basin " Need for a regional strategy involving smallholders and informal markets » Cifor (2019)

DOI: 10.17528/cifor/007331

[19] I.O. Abolagba, S.O. Osuji, Assessment of manufactured sand in concrete produced with palm kernel shells as coarse aggregate, International Journal of Science and Research (2018), Vol.7 issue3.

[20] Dreux-Gorisse, New guide of concrete, edds. Eyrolles, Paris, 1981.

[21] NF P 94-056. Granulometric analysis. Method by dry sieving and after washing, March 1996.

[22] NF EN 933-1. Tests for determining the geometrical characteristics of aggregates - Part 1: Determination of grain size - Grain size analysis by sieving. May 2012.

[23] NF EN 933-8. Tests for determining the geometric characteristics of aggregates. Evaluation of fines - Sand equivalent, August 1999.

[24] NF EN 1097-3. Tests for determining the mechanical and physical properties of aggregates-Part 3: Method for the determination of bulk density and inter-granular porosity, classification index P18-650-3, August, 1998.

[25] NF EN 1097-2. Tests for determining the mechanical and physical properties of aggregates - Part 2: Method for determining the resistance to fragmentation. June 2010.

[26] NF EN 1097-1. Test to determine the mechanical and physical properties of aggregates-Part 1: Determination of wear resistance (Micro-Deval), classification index P18-650.1, AFNOR, 1996.

[27] NF EN 196-1. Concrete-Part 1: Specification, performance, production and conformity, April (2004)

[28] NF EN-12390-3. Tests for hardened concrete - Part 3: compressive strength of specimens, April 2012.

[29] NF EN 12390-6.Test for hardened concrete. Part 6: Tensile strength by splitting of specimens, October 2001.

[30] J.P. Balayssac, S. Laurens, G. Arliguie, M.A. Ploix, D. Breysse, B. Piwakowski, G. Villain, Evaluation of concrete structures by combining non destructive testing methods (SENSO project). 7th International Symposium on Nondestructive Testing in Civil Engineering, 30 June - 3 July 2009, Nantes, France, e-Journal of Nondestructive Testing (2009), Vol. 14(7). https://www.ndt.net/?id=7759

DOI: 10.1007/978-94-007-0723-8_27

[31] S.A. Zogo Tsala, P. Bame Che, H.L. Ekoro Nkoungou, E. YAMB BELL, Concrete and mortar properties prediction by cement fineness, International Journal of Modern Research in Engineering and Technology (2023), Vol. 8 Issue 5.

[32] C.C. Araújoa, R.G. Meiraa, Correlation between concrete strength properties and surface electrical resistivity, Rev. IBRACON Estrut. Mater. (2022), vol. 15, no. 1, e15103

DOI: 10.1590/S1983-41952022000100003

[33] F.A. Oluokun, E.G. Burdette, J.H. Deatherage, Splitting tensile strength and compressive strength relationship at early ages, ACI Materials Journal (1991), Vol.88, No.2, pp.115-121

DOI: 10.14359/1859

[34] F. De Larrard, Concrete mixture-proportioning- A scientific approach, Modern concrete technology Series, No.9, E&FN SPON, Londres, 1999.

[35] S.B. Owolabi Olanrewaju, N.F. Abas, Influence of Palm Kernel Shell on Mechanical Properties on The Achievement of Kernelrazzo Concrete Floor Finish Production, Journal of Advanced Research in Applied Sciences and Engineering Technology(2023) Vol.30, Issue 1, 50-64

DOI: 10.37934/araset.30.1.5064

[36] ASTM C330-2009. Standard specification for lightweight aggregates for structural concrete, 2009.
