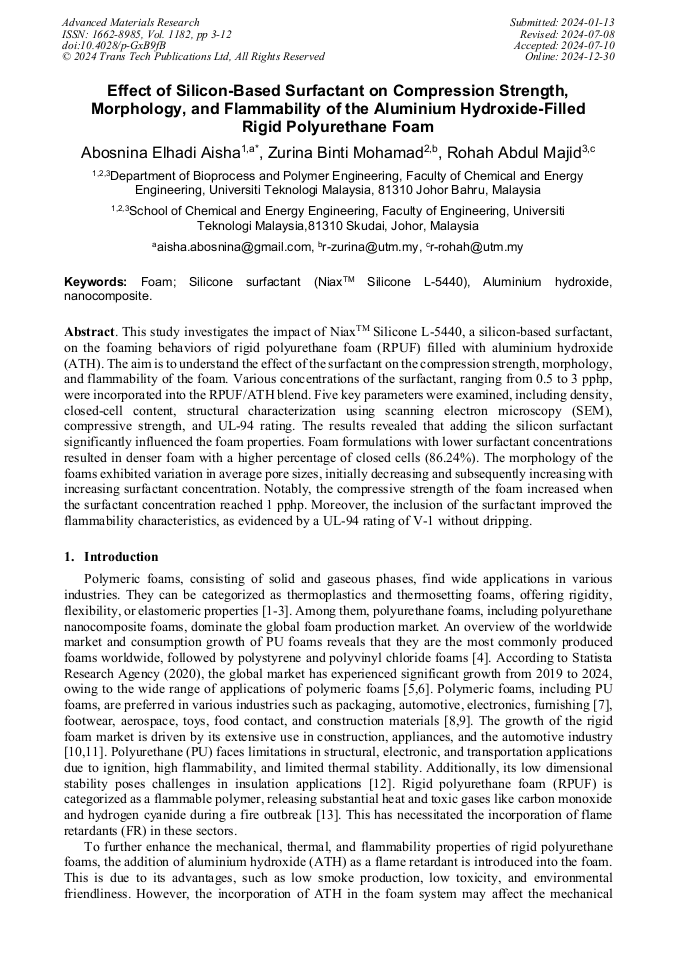

Effect of Silicon-Based Surfactant on Compression Strength, Morphology, and Flammability of the Aluminium Hydroxide-Filled Rigid Polyurethane Foam

Abstract:

This study investigates the impact of Niax^TM Silicone L-5440, a silicon-based surfactant, on the foaming behaviors of rigid polyurethane foam (RPUF) filled with aluminium hydroxide (ATH). The aim is to understand the effect of the surfactant on the compression strength, morphology, and flammability of the foam. Various concentrations of the surfactant, ranging from 0.5 to 3 pphp, were incorporated into the RPUF/ATH blend. Five key parameters were examined, including density, closed-cell content, structural characterization using scanning electron microscopy (SEM), compressive strength, and UL-94 rating. The results revealed that adding the silicon surfactant significantly influenced the foam properties. Foam formulations with lower surfactant concentrations resulted in denser foam with a higher percentage of closed cells (86.24%). The morphology of the foams exhibited variation in average pore sizes, initially decreasing and subsequently increasing with increasing surfactant concentration. Notably, the compressive strength of the foam increased when the surfactant concentration reached 1 pphp. Moreover, the inclusion of the surfactant improved the flammability characteristics, as evidenced by a UL-94 rating of V-1 without dripping.

• Periodical: Advanced Materials Research (Volume 1182)
• Pages: 3-12
• DOI: https://doi.org/10.4028/p-GxB9fB
• Online since: December 2024
• Authors: Aisha Elhadi Abosnina*, Zurina Binti Mohamad Mohamad, Rohah Abdul Majid
• Keywords: Aluminium Hydroxide, Foam, Nanocomposite, Silicone Surfactant (Niax^TM Silicone L-5440)

References

[1] Lee, Shau-Tarng/N. S. Ramesh (2004): Polymeric foams: Mechanisms and Materials, CRC Press.

[2] Yang, Z., Liu, T., Hu, D., Xu, Z., & Zhao, L. (2019). Foaming window for preparation of microcellular rigid polyurethanes using supercritical carbon dioxide as a blowing agent. The Journal of Supercritical Fluids, 147, 254-262.

DOI: 10.1016/j.supflu.2018.11.001

[3] Ling, Y., Yao, S., Chen, Y., Hu, D., Xi, Z., & Zhao, L. (2022). A synergetic effect between curing reaction and CO2 diffusion for microcellular epoxy foam preparation in supercritical CO2. The Journal of Supercritical Fluids, 180, 105424.

DOI: 10.1016/j.supflu.2021.105424

[4] Titow, W. V. (2001). PVC Technology, 146. Rapra Technology Ltd., Shawbury, UK.

[5] Muhammed Raji, A., Hambali, H. U., Khan, Z. I., Binti Mohamad, Z., Azman, H., & Ogabi, R. (2023). Emerging trends in flame retardancy of rigid polyurethane foam and its composites: A review. Journal of Cellular Plastics, 59(1), 65-122.

DOI: 10.1177/0021955x221144564

[6] Garside, M. (2020). Polyurethane global demand 2024 Statista., Available at: https://www.statista.com/statistics/747004/polyurethane-demanworldwide/#statisticContainer [Accessed March 16, 2021].

[7] Dhaliwal, G. S., Anandan, S., Bose, M., Chandrashekhara, K., & Nam, P. (2020). Effects of surfactants on mechanical and thermal properties of soy-based polyurethane foams. Journal of Cellular Plastics, 56(6), 611-629.

DOI: 10.1177/0021955x20912200

[8] Liu, P., & Chen, G. F. (2014). Porous materials: processing and applications. Elsevier.

[9] Eling, B., Tomović, Ž., & Schädler, V. (2020). Current and future trends in polyurethanes: An industrial perspective. Macromolecular chemistry and physics, 221(14), 2000114.

DOI: 10.1002/macp.202000114

[10] Abu-Jdayil, B., Mourad, A. H., Hittini, W., Hassan, M., & Hameedi, S. (2019). Traditional, state-of-the-art and renewable thermal building insulation materials: An overview. Construction and Building Materials, 214, 709-735.

DOI: 10.1016/j.conbuildmat.2019.04.102

[11] Ju, Z., He, Q., Zhang, H., Zhan, T., Chen, L., Li, S., ... & Lu, X. (2020). Steam explosion of windmill palm fiber as the filler to improve the acoustic property of rigid polyurethane foams. Polymer Composites, 41(7), 2893-2906.

DOI: 10.1002/pc.25585

[12] Srihanum, Adnan et al. (2022): Low-density rigid polyurethane foam incorporated with renewable polyol as sustainable thermal insulation material, in: Journal of Cellular Plastics, vol. 58, no. 3, p.485–503, [online].

DOI: 10.1177/0021955x211062630

[13] Chen, X. Y., Huang, Z. H., Xi, X. Q., Li, J., Fan, X. Y., & Wang, Z. (2018). Synergistic effect of carbon and phosphorus flame retardants in rigid polyurethane foams. Fire and Materials, 42(4), 447-453.

DOI: 10.1002/fam.2511

[14] Zhang, X.D et al. (1999): Role of silicone surfactant in flexible polyurethane foam, in: Journal of Colloid and Interface Science, vol. 215, no. 2, p.270–279, [online].

DOI: 10.1006/jcis.1999.6233

[15] Xu, J., Chen, Z., Xue, J., Chen, Y., & Liu, Z. (2017). A review of experimental results of steel-reinforced recycled aggregate concrete members and structures in China (2010-2016). Procedia engineering, 210, 109-119.

DOI: 10.1016/j.proeng.2017.11.055

[16] Palanisamy, A. (2013). Water‐blown polyurethane–clay nanocomposite foams from biopolyol—effect of nanoclay on the properties. Polymer composites, 34(8), 1306-1312.

DOI: 10.1002/pc.22543

[17] Mondal, P., & Khakhar, D. V. (2007). Rigid polyurethane–clay nanocomposite foams: Preparation and properties. Journal of Applied Polymer Science, 103(5), 2802-2809.

DOI: 10.1002/app.24507

[18] Baferani, A. H., Keshavarz, R., Asadi, M., & Ohadi, A. R. (2018). Effects of Silicone Surfactant on the Properties of Open‐Cell Flexible Polyurethane Foams. Advances in Polymer Technology, 37(1), 71-83.

DOI: 10.1002/adv.21643

[19] Han, M. S., Choi, S. J., Kim, J. M., Kim, Y. H., Kim, W. N., Lee, H. S., & Sung, J. Y. (2009). Effects of silicone surfactant on the cell size and thermal conductivity of rigid polyurethane foams by environmentally friendly blowing agents. Macromolecular research, 17, 44-50.

DOI: 10.1007/bf03218600

[20] Boinowitz, T., Borgogelli, R., & Gower, W. (2004). Impact of Silicone Surfactants on the Flammability of Flexible Slabstock Foam–Comparison of California TB 117/draft 2002 with Established Flammability Tests. Journal of cellular plastics, 40(4), 299-313.

DOI: 10.1177/0021955x04045183

[21] Lim, H. S. H. K., Kim, S. H., & Kim, B. K. (2008). Effects of silicon surfactant in rigid polyurethane foams. Express Polym. Lett, 2(3), 194-200.

DOI: 10.3144/expresspolymlett.2008.24

[22] Chen, Z., Wu, Y., & Wei, Y. (2013). Cesium removal from high-level liquid waste utilizing a macroporous silica-based Calix [4] arene-R14 adsorbent modified with surfactants. Energy Procedia, 39, 319-327.

DOI: 10.1016/j.egypro.2013.07.219

[23] Snow, S. A., & Stevens, R. E. (2019). The science of silicone surfactant application in the formation of polyurethane foam. In Silicone surfactants (pp.137-158). Routledge.

DOI: 10.1201/9780203739754-5

[24] Rossmy, G. R., Kollmeier, H. J., Lidy, W., Schator, H., & Wiemann, M. (1977). Cell-opening in one-shot flexible polyether-based polyurethane foams. The Role of Silicone Surfactant and its Foundation in the Chemistry of Foam Formation. Journal of Cellular Plastics, 13(1), 26-35.

DOI: 10.1177/0021955x7701300102

[25] Yang, B., Jaber, R., & Edler, K. J. (2012). Silica–Surfactant–Polyelectrolyte Film Formation: Evolution in the Subphase. Langmuir, 28(22), 8337-8347.

DOI: 10.1021/la3014317

[26] Kanner, B., Prokai, B., Eschbach, C. S., & Murphy, G. J. (1979). New aspects of the stabilization of flexible polyether urethane foam by silicone surfactants. Journal of Cellular Plastics, 15(6), 315-320.

DOI: 10.1177/0021955x7901500603

[27] Wu, Z., Puigserver, P., Andersson, U., Zhang, C., Adelmant, G., Mootha, V., ... & Spiegelman, B. M. (1999). Mechanisms controlling mitochondrial biogenesis and respiration through the thermogenic coactivator PGC-1. Cell, 98(1), 115-124.

DOI: 10.1016/S0092-8674(00)80611-X
