EDM Properties of EC-PCD Using a Copper Electrode

Abstract:

Electrically conductive polycrystalline composite diamond (EC-PCD), which consists of electrically conductive diamond grits, has recently been developed for the purpose of providing the material with both excellent tool property and good machinability. This paper deals with an investigation of machinability of EC-PCD by EDM with a copper (Cu) electrode. As a result, it was found that the EDM speed (Material removal rate) for EC-PCD was higher than that of the standard PCD. Although the surface roughness of the standard PCD was 13µm Rzjis at set current ip=3A, the surface roughness of the EC-PCD was 5µm Rzjis at the same current condition. Furthermore, it was observed that the EC diamond particle in EC-PCD was machined by single discharge EDM. Moreover, it was confirmed that EC-PCD was able to be applied a fine discharge profiling or a making fine holes using a rotating electrode.

You might also be interested in these eBooks

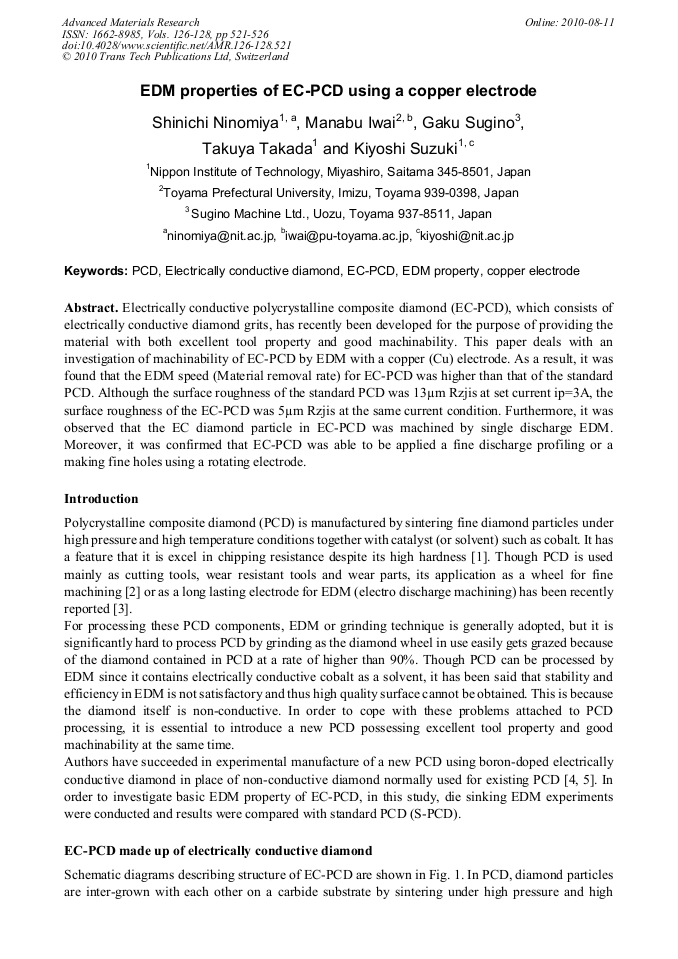

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 126-128)

Pages:

521-526

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.126-128.521

Citation:

Cite this paper

Online since:

August 2010

Authors:

Shinichi Ninomiya, Manabu Iwai, Gaku Sugino, Takuya Takada, Kiyoshi Suzuki

Keywords:

Copper Electrode, EC-PCD, EDM Property, Electrically Conductive Diamond, PCD

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Product brochure of Element Six.

Google Scholar

[2] Y. Seki, S. Suzuki, T. Uematsu et al.: Collected Paper of JSCE (1996) pp.349-353. (in Japanese).

Google Scholar

[3] K. Suzuki, S. Sano, M. Iwai, T. Uematsu, et al.: Proceedings of 2nd International Industrial Diamond Conference (2007).

Google Scholar

[4] K. Suzuki, Y. Shiraishi, M. Iwai, S. ninomiya, T. Uematsu, et al.: Advanced Materials Research Vols. 76-78, Trans Tech Publications Ltd., (2009) pp.684-689.

Google Scholar

[5] K. Suzuki, S. Ninomiya, M. Iwai, et al.: Proceeding of JSAT Conference, ABTEC2009 (2009) pp.109-112. (in Japanese).

Google Scholar

[6] H. Minami, K. Watanabe, K. Masui and N. Nabekura: Journal of the Japan Society of Electrical Machining Engineers, Vol. 44, No. 105, (2010) pp.17-24. (in Japanese).

Google Scholar
