Influence of Roll Profile Configuration on High-Strength Strip Flatness Control Performance in Tandem Cold Rolling

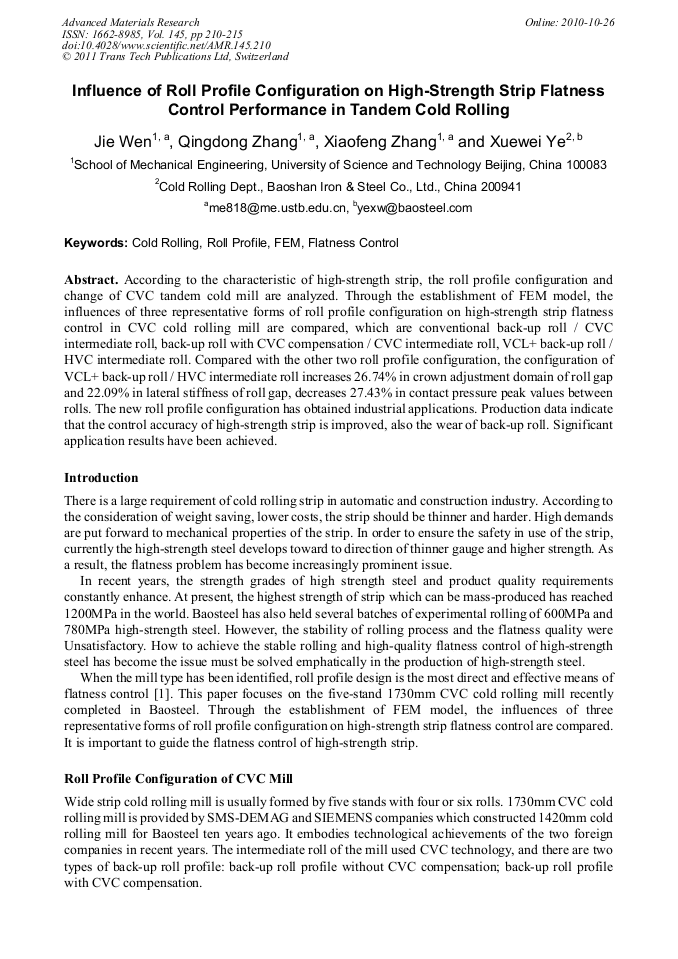

Abstract:

According to the characteristic of high-strength strip, the roll profile configuration and change of CVC tandem cold mill are analyzed. Through the establishment of FEM model, the influences of three representative forms of roll profile configuration on high-strength strip flatness control in CVC cold rolling mill are compared, which are conventional back-up roll / CVC intermediate roll, back-up roll with CVC compensation / CVC intermediate roll, VCL+ back-up roll / HVC intermediate roll. Compared with the other two roll profile configuration, the configuration of VCL+ back-up roll / HVC intermediate roll increases 26.74% in crown adjustment domain of roll gap and 22.09% in lateral stiffness of roll gap, decreases 27.43% in contact pressure peak values between rolls. The new roll profile configuration has obtained industrial applications. Production data indicate that the control accuracy of high-strength strip is improved, also the wear of back-up roll. Significant application results have been achieved.

• Periodical: Advanced Materials Research (Volume 145)
• Pages: 210-215
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.145.210
• Online since: October 2010
• Authors: Jie Wen, Qing Dong Zhang, Xiao Feng Zhang, Xue Wei Ye
• Keywords: Cold Rolling, Finite Element Model (FEM), Flatness Control, Roll Profile

References

[1] J.G. Cao, G.C. Wei and J. Zhang: Journal of University of Science and Technology Beijing, Vol. 29 (2007) No. 10, p.1033. (In Chinese).

[2] H.B. Li: Study on the Roll Contours and Profile Control Characteristics for CSP Hot Strip Mill (Ph.D., University of Science and Technology Beijing, China 2008), p.53. (In Chinese).

[3] J. Bai: Roll Profile Design and Mill Type of Wide Strip Tandem Cold Mill (Ph.D., University of Science and Technology Beijing, China 2009), p.86. (In Chinese).

[4] J.G. Cao, J. Zhang and X.L. Chen: Iron and Steel, Vol. 40 (2005) No. 6, p.40. (In Chinese).

[5] Q.D. Zhang, L.W. Huang and X.M. Zhou: Journal of University of Science and Technology Beijing, Vol. 22(2000) No. 2, p.177. (In Chinese).

[6] X.M. Sun: Study on Shape Control Behavior and Backup Roll Contour Design of CVC-6h Cold Mill for Wide Steel Strip (MS., University of Science and Technology Beijing, China 2006), p.17. (In Chinese).

[7] Q.D. Zhang, X.M. Sun and J. Bai: China Mechanical Engineering, Vol. 18 (2007) No. 7, p.789. (In Chinese).

[8] H.B. Li, J.G. Cao and J. Zhang: Journal of Plasticity Engineering, Vol. 17 (2010) No. 2, p.84. (In Chinese).
