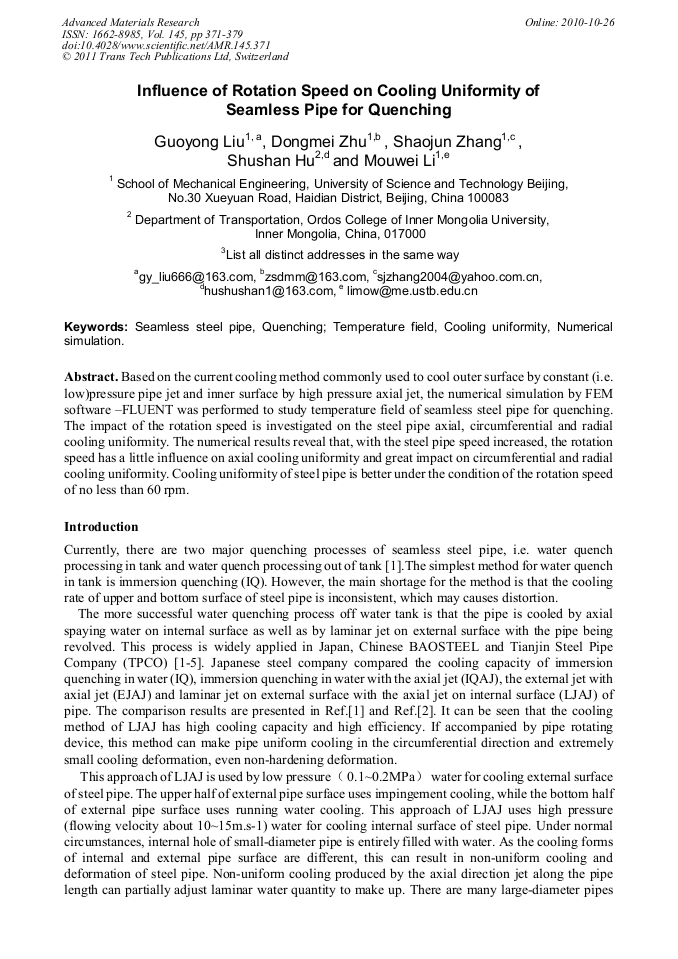

Influence of Rotation Speed on Cooling Uniformity of Seamless Pipe for Quenching

Abstract:

Based on the current cooling method commonly used to cool outer surface by constant (i.e. low)pressure pipe jet and inner surface by high pressure axial jet, the numerical simulation by FEM software –FLUENT was performed to study temperature field of seamless steel pipe for quenching. The impact of the rotation speed is investigated on the steel pipe axial, circumferential and radial cooling uniformity. The numerical results reveal that, with the steel pipe speed increased, the rotation speed has a little influence on axial cooling uniformity and great impact on circumferential and radial cooling uniformity. Cooling uniformity of steel pipe is better under the condition of the rotation speed of no less than 60 rpm.

• Periodical: Advanced Materials Research (Volume 145)
• Pages: 371-379
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.145.371
• Online since: October 2010
• Authors: Guo Yong Liu, Dong Mei Zhu, Shao Jun Zhang, Shi Shan Hu, Mou Wei Li
• Keywords: Cooling Uniformity, Numerical Simulation, Quenching, Seamless Steel Pipe, Temperature Field

References

[1] Y.H. Xu. Water-Quenching Technologies for Seamless Steel Pipes Employed in Japan. Steel Pipe, (1996) No. 3, p.57. (In Chinese).

[2] O. M. Doi Quenching equipment for steel pipe. Technical Report of Kawasaki Steel, (1981) No. 3, p.30. (In Japanese).

[3] G.H. Yin. Heat Treatment System of Water Quenching for Oil-well Tubes in Bao-steel. Heat Treatment, Vol. 18 (2003) No. 3, p.10. (In Chinese).

[4] X.P. Yang, M.F. Wu and L. Qian. Development and application of the quenching system for large-caliber steel pipe. China Petroleum Machinery , Vol. 36(2008) No. 7, p.37. (In Chinese).

[5] X.Q. Zhang, M. Z. Lu and N. H. Xu. Full automation of oil steel pipe hardening and tempering line. Heavy Machinery， (2002) No. 4, p.12. (In Chinese).

[6] B.B. Wu, D .Y. Wen , L.J. Li and H.Y. Liu. Simulation of temperature field of quenching process of hot-rolled high-strength seam less pipe by FEM. JOURNAL OF TIANJIN UNIVERSITY OF TECHNOLOGY, Vol. 22(2006) No. 6, p.28. (In Chinese).

[7] B.B. Wu, D.Y. Wen and L.J. Li. Analysis of quenching residual stress of seam less pipe by FEM. Heavy Machinery, (2006) No. 5, p.24. (In Chinese).

[8] Y.M. Okamura,C. R. Shojil and Q C Hariki. China Patent: CN 1177644A. (1998).

[9] S.J. Zhang, S.S. Hu , G.Y. Liu and D.M. Zhu. Layout parameters of controlled cooling nozzles for seam less pipes based on fluent software. Journal of University of Science and Technology Beijing, Vol. 32 (2006) No. 1, p.123. (In Chinese).
