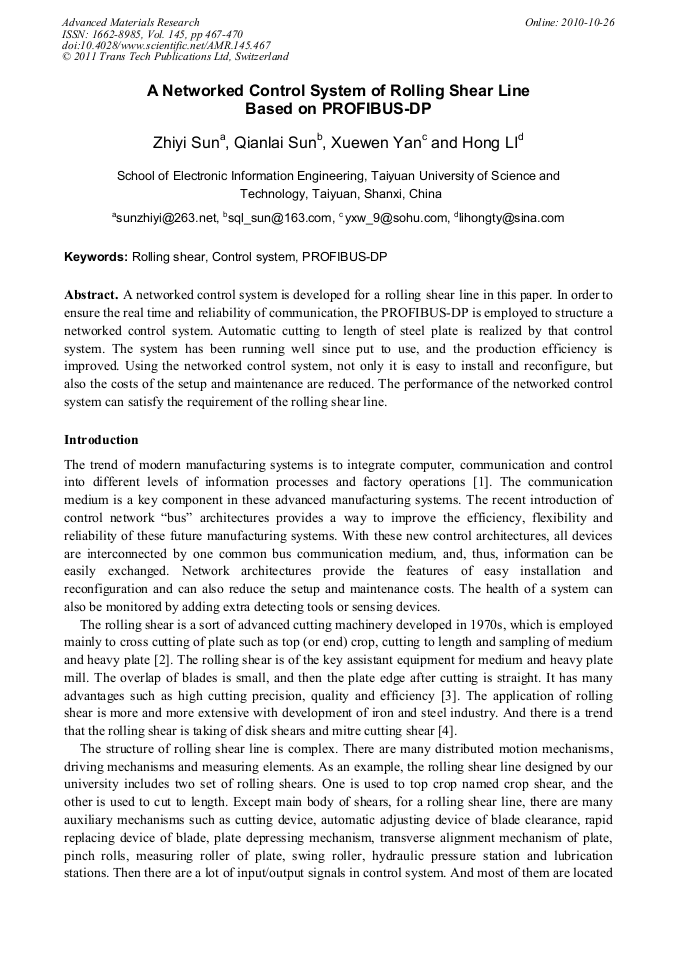

A Networked Control System of Rolling Shear Line Based on PROFIBUS-DP

Abstract:

A networked control system is developed for a rolling shear line in this paper. In order to ensure the real time and reliability of communication, the PROFIBUS-DP is employed to structure a networked control system. Automatic cutting to length of steel plate is realized by that control system. The system has been running well since put to use, and the production efficiency is improved. Using the networked control system, not only it is easy to install and reconfigure, but also the costs of the setup and maintenance are reduced. The performance of the networked control system can satisfy the requirement of the rolling shear line.

• Periodical: Advanced Materials Research (Volume 145)
• Pages: 467-470
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.145.467
• Online since: October 2010
• Authors: Zhi Yi Sun, Qian Lai Sun, Xue Wen Yan, Hong Li
• Keywords: Control System, Profibus-DP, Rolling Shear

References

[1] H. A. Abdullah, C. R. Chatwin: Integrated Manufacturing System, Vol. 3 (1994) No. 5, p.20.

[2] L. Ma, Q. Huang and J. Ji: Heavy Machinery, (2009) No. 2, p.48. (In Chinese).

[3] G. Yang: Wide And He avy Plate, Vol. 7 (2001) No. 5, p.29. (In Chinese).

[4] Y. Li: Metallurgical Standardization & Quality, Vol. 45 (2008) No. 5, p.53. (In Chinese).

[5] M. Liu: Machine Tool Electric Apparatus, Vol. 32 (2005) No. 3, p.5. (In Chinese) master slave SYN SD2 LE LEr SD2 DA SA DU FCS ED SRD-request Frame SRD-response SD2 LE LEr SD2 DA SA DU FCS ED.
