The Equation of Instantaneous Speed Ratio between Roller and Workpiece

Abstract:

The instantaneous speed ratio between roller and workpiece is not only the basis of the relative movement relationship but also the key to deriving the curve of non-rotating shafts with cross wedge rolling. In the paper, the instantaneous speed ratio was analyzed by using FEM. Then, the equation of instantaneous speed ratio equation was regressed by using the statistical analysis software. In the meantime, the experimental rolling equipment was designed to verify the accuracy of the regression equation. Satisfactory consistency was demonstrated by comparison of the theoretical values and results obtained from experiments.

You might also be interested in these eBooks

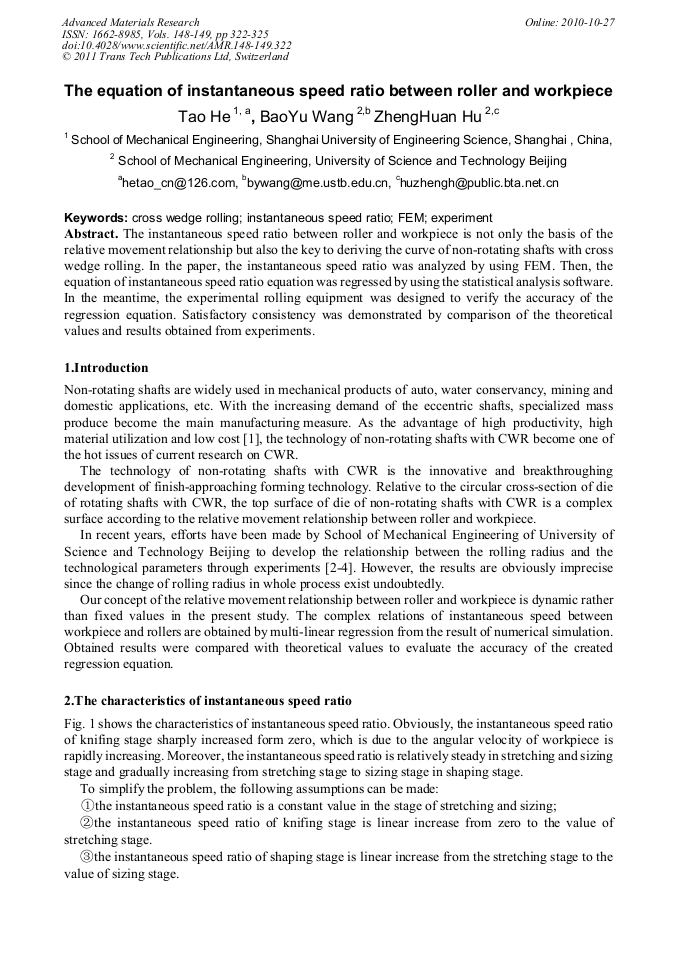

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 148-149)

Pages:

322-325

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.148-149.322

Citation:

Cite this paper

Online since:

October 2010

Authors:

Tao He, Bao Yu Wang, Zheng Huan Hu

Keywords:

Cross Wedge Rolling (CWR), Experiment, Finite Element Model (FEM), Instantaneous Speed Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hu Zhenghuan, Zhang Kangsheng, Wang Baoyu, et al. The forming technology and simulation of eccentric shafts with cross wedge rolling[M]. Beijing: Metallurgical Industry Press, 2004(In Chinese).

Google Scholar

[2] Zhen Zhenghao, Jiang Jialong. The research on the rolling radius and the instantaneous speed in the rolling process of cross wedge rolling[J]. Journal of Beijing University of Science and Technology, 1992, (03) (In Chinese).

Google Scholar

[3] He Tao, Wang Baoyu, Hu Zhenghuan. Analysis of Factors Affecting Instantaneous Speed Ratio between Workpiece and Roller of CWR[J]. China Mechanical Engineering, 2009, 20 (20): 2502~2505(In Chinese).

Google Scholar
