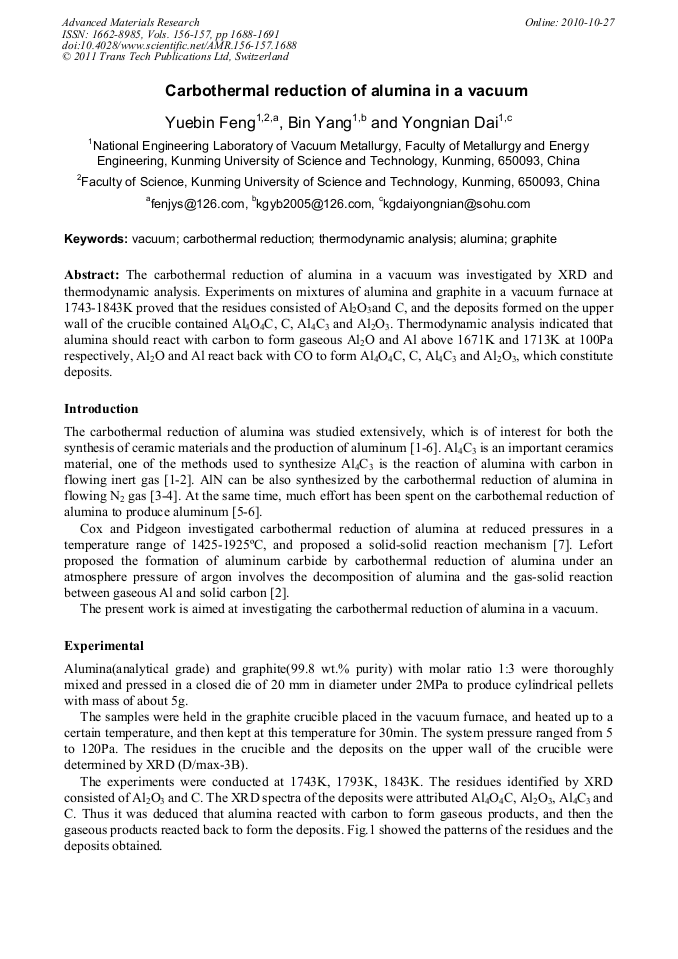

Carbothermal Reduction of Alumina in a Vacuum

Abstract:

The carbothermal reduction of alumina in a vacuum was investigated by XRD and thermodynamic analysis. Experiments on mixtures of alumina and graphite in a vacuum furnace at 1743-1843K proved that the residues consisted of Al2O3and C, and the deposits formed on the upper wall of the crucible contained Al4O4C, C, Al4C3 and Al2O3. Thermodynamic analysis indicated that alumina should react with carbon to form gaseous Al2O and Al above 1671K and 1713K at 100Pa respectively, Al2O and Al react back with CO to form Al4O4C, C, Al4C3 and Al2O3, which constitute deposits.

• Periodical: Advanced Materials Research (Volumes 156-157)
• Pages: 1688-1691
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.156-157.1688
• Online since: October 2010
• Authors: Yue Bin Feng, Bin Yang, Yong Nian Dai
• Keywords: Alumina, Carbothermal Reduction, Graphite, Thermodynamic Analysis, Vacuum

References

[1] Hyeong Uk Joo and Woo-Sik Jung: J. Alloys Compd. Vol. 465 (2008), p.265.

[2] P. Lefort, D. Tetard and P. Tristant: J. Eur. Ceram. Soc. Vol. 12 (1993), p.123.

[3] Y. Sun, J.Y. Li, Y. Tan and L. Zhang: J. Alloys Compd. Vol. 471 (2009), p.400.

[5] Shengqi Xi, Xinkuan Liu, Pengliang Li and Jingen Zhou: J. Alloys Compd. Vol. 457 (2008), p.452.

[6] M. Halmann, A. Frei and A. Ateinfeld. Energy: Vol. 32 (2007), p.2420.

[7] M.J. Bruno: submitted to Department of energy Golden field office. (2004).

[8] J.H. Cox and L M. Pidgeon: Can. J. Chem. Vol. 41 (1963), p.671.

[9] Yu J K, Ueno S, Li H X and Hiragushi K: J. Eur. Ceram. Soc. Vol. 19 (1999), p.2843.

[10] P.T. Stroup: Trans. Met. Soc. AIME, Vol. 230 (1964), p.355.

[11] D.A. Katsov, A.M. Shtepan, I.L. Grinshtein and A.A. Pupyshev: Spectrochim. Acta Part B: At. Spectrosc. Vol. 47 (1992), p.1023.

[12] Yongnian Dai and Bin Yang: Vacuum metallurgy for nonferrous metal material (Metallurgical Industry Press, Beijing 2000). In Chinese.
