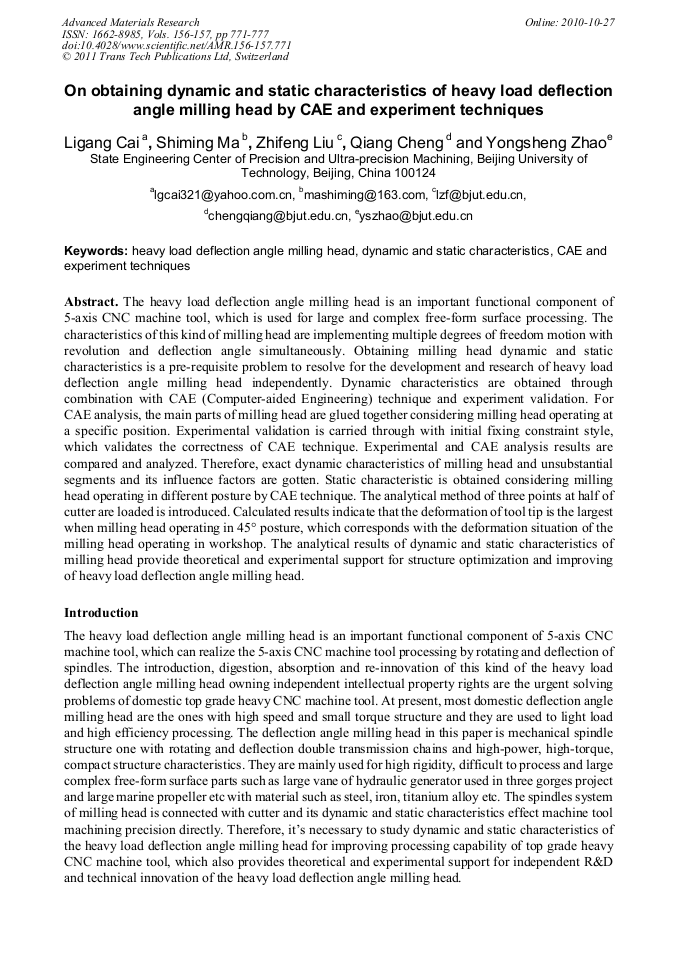

On Obtaining Dynamic and Static Characteristics of Heavy Load Deflection Angle Milling Head by CAE and Experiment Techniques

Abstract:

The heavy load deflection angle milling head is an important functional component of 5-axis CNC machine tool, which is used for large and complex free-form surface processing. The characteristics of this kind of milling head are implementing multiple degrees of freedom motion with revolution and deflection angle simultaneously. Obtaining milling head dynamic and static characteristics is a pre-requisite problem to resolve for the development and research of heavy load deflection angle milling head independently. Dynamic characteristics are obtained through combination with CAE (Computer-aided Engineering) technique and experiment validation. For CAE analysis, the main parts of milling head are glued together considering milling head operating at a specific position. Experimental validation is carried through with initial fixing constraint style, which validates the correctness of CAE technique. Experimental and CAE analysis results are compared and analyzed. Therefore, exact dynamic characteristics of milling head and unsubstantial segments and its influence factors are gotten. Static characteristic is obtained considering milling head operating in different posture by CAE technique. The analytical method of three points at half of cutter are loaded is introduced. Calculated results indicate that the deformation of tool tip is the largest when milling head operating in 45° posture, which corresponds with the deformation situation of the milling head operating in workshop. The analytical results of dynamic and static characteristics of milling head provide theoretical and experimental support for structure optimization and improving of heavy load deflection angle milling head.

• Periodical: Advanced Materials Research (Volumes 156-157)
• Pages: 771-777
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.156-157.771
• Online since: October 2010
• Authors: Li Gang Cai, Shi Ming Ma, Zhi Feng Liu, Qiang Cheng, Yong Sheng Zhao
• Keywords: Computer Aided Engineering (CAE), Dynamic Characteristic, Experiment Technique, Heavy Load Deflection Angle Milling Head, Static Characteristic

References

[1] J. kromulski, E. hojan. Journal of Sound and Vibration, 1996, 196(4): 429-438.

[2] F. Massa, T. Tison,B. Lallemand. Journal of Sound and Vibration, 2009, 322: 135–154.

[3] R. Pintelona, P. Guillaumeb, J. Schoukens. Mechanical Systems and Signal Processing, 2007, 21: 2359–2373.

[4] MA Shiming, YANG Wentong, LIU Zhifeng, et al. Machinery Design & Manufacture, 2008, 4: 156-158. (In Chinese).

[5] Ligang Cai, Shiming Ma, Zhao Yongsheng, et al. Journal of Beijing University of Technology. (In Chinese).

[6] Ligang Cai, Shiming Ma, Zhao Yongsheng, et al. Journal of Vibration and Shock. (In Chinese).

[7] Adrian GHIONEA, George CONSTANTIN, Iulian STĂNĂŞEL, Ionuţ GHIONEA,. ANNALS of the ORADEA UNIVERSITY. Fascicle of Management and Technological Engineering, Volume VII (XVII), 2008, 1407-1412.

[8] Ming Zhao, Zhengdong Huang and Liping Chen. Engineering Computations: International Journal for Computer-Aided Engineering and Software, Vol. 25 No. 7, 2008, pp.657-676 (In Chinese).

[9] LIU Yang, LI Jingkui, ZHU Chunxia, et al. Journal of Northeastern University (Natural Science), 2006, 27(12)：1369-1372. (in chinese).

[10] ZHANG Guangpeng, SHI Wenhao, HUANG Yumei. Journal of Mechanical Engineering, 2002, 38(10)：114-117. (In Chinese).

[11] David Te-Yen Huang, Jyh-Jon Lee, International Journal of Machine Tools & Manufacture 41 (2001) 1149–1163.

[12] HAN Bangcheng, ZHANG Shunak, FANG Jiancheng, et al. Journal of System Simulation, 2008, 20(3): 763-766. (In Chinese).

[13] ZHENG Min, SHEN Fan, SHI Dongfeng, et al. China Mechanical Engineering, 2006(4): 405-409. ( In Chinese).

[14] Shil-Geun Kim, Sung-Hyun Jang, Hyun-Young Hwang, et al．Analysis of Dynamic Characteristics and Evaluation of Dynamic Stiffness of a 5-Axis Multi-tasking Machine Tool by using F.E. M and Exciter Test[C]/ International Conference on Smart Manufacturing Application．KINTEX, Gyeonggi-do, Korea: IEEE, 2008: 565-569.

DOI: 10.1109/icsma.2008.4505589
