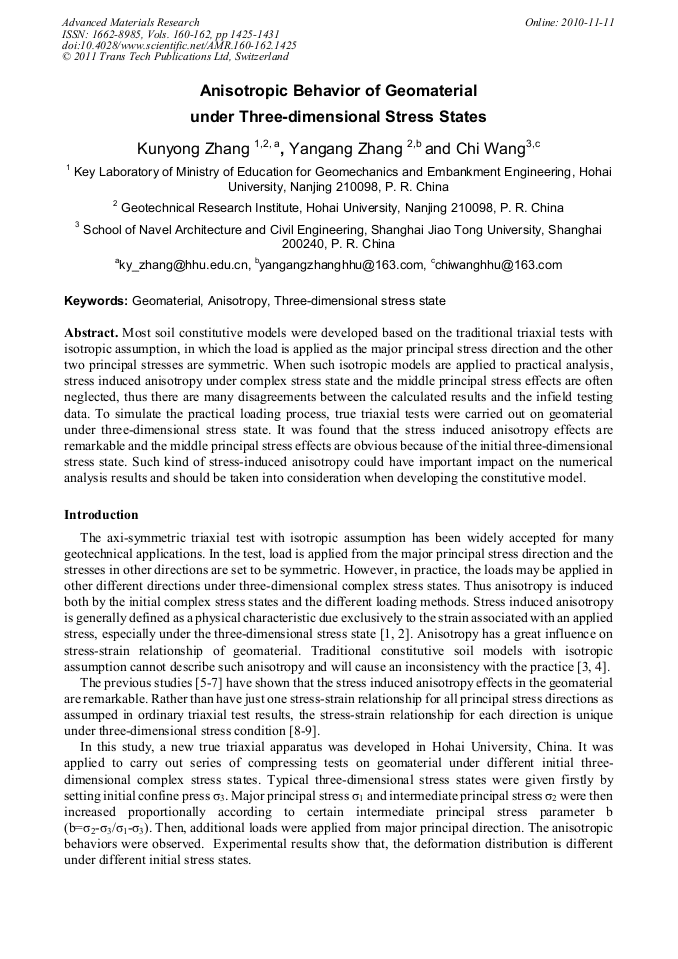

Anisotropic Behavior of Geomaterial under Three-Dimensional Stress States

Abstract:

Most soil constitutive models were developed based on the traditional triaxial tests with isotropic assumption, in which the load is applied as the major principal stress direction and the other two principal stresses are symmetric. When such isotropic models are applied to practical analysis, stress induced anisotropy under complex stress state and the middle principal stress effects are often neglected, thus there are many disagreements between the calculated results and the infield testing data. To simulate the practical loading process, true triaxial tests were carried out on geomaterial under three-dimensional stress state. It was found that the stress induced anisotropy effects are remarkable and the middle principal stress effects are obvious because of the initial three-dimensional stress state. Such kind of stress-induced anisotropy could have important impact on the numerical analysis results and should be taken into consideration when developing the constitutive model.

• Periodical: Advanced Materials Research (Volumes 160-162)
• Pages: 1425-1431
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.160-162.1425
• Online since: November 2010
• Authors: Kun Yong Zhang, Yan Gang Zhang, Chi Wang
• Keywords: Anisotropy, Geomaterial, Three-Dimensional Stress State

References

[1] Sture, Stein, and Desai, C.S., Fluid Cushion Truly Triaxial or Multiaxial Testing Device., ASTM, Geotech. Testing J., Vol 2, No 1, 1979, pp.20-33.

DOI: 10.1520/gtj10585j

[2] Yin, Zongze, Zhang, Kunyong, and Zhu, Jungao, Computation for stress and deformation of concrete slab in rock-fill dam in consideration of soil anisotropy., Chinese Journal of Hydraulic Engineering, Vol 48, No 11, 2004, pp.49-54.

[3] Kjellman, W., Report on an apparatus for consummate investigation of the mechanical properties., In Proc. 1st Int. Conference on Soil Mech. and Found. Engrg., Cambridge, Mass., 2, . 1936, pp.16-20.

[4] Sivakugan, N., Chameau, J.L., Holtz, R.D., and Altschaeffl, A.G., Servo-Controlled Cuboidal Shear Device., Geotech. Testing J., Vol 11, No 2, 1988, pp.119-124.

DOI: 10.1520/gtj10957j

[5] Arthur, J. R. F., Cubical devices: versatility and constraints., Advanced Triaxial Testing of Soil and Rock, ASTM STP 977, Robart T. Donaghe, Ronald C. Chaney, Marshall L. Silver, Eds., Philadelphia, 1988, pp.743-765.

DOI: 10.1520/stp29112s

[6] Khalid A. A. and Heath S. W., A True Triaxial Apparatus for Soil Testing with Mixed Boundary Conditions., Geotechnical Testing Journal, Vol 28, No 6, 2005, pp.534-543.

DOI: 10.1520/gtj12679

[7] Kirkgard, M. M. and Lade, P. V., Anisotropic Three-Dimensional Behavior of a normally consolidated clay., Canadian Geotech. J., Vol. 30, 1993, pp.848-858.

DOI: 10.1139/t93-075

[8] Abelev, A. V. and Lade, P. V., Effects of Cross Anisotropy on Three-Dimensional Behavior of Sand. I: Stress-Strain Behavior and Shear Banding,. Journal of Engineering Mechanics, Vol 129, No 2, 2003, pp.160-166.

DOI: 10.1061/(asce)0733-9399(2003)129:2(160)

[9] Jafarzadeh, F, Javaheri, H, Sadek, T. and Muir, Wood. D., Simulation of Anisotropic Deviatoric Response of Hostun Sand in True Triaxial Tests,. Computers and Geotechnics, Vol 35, 2008, pp.703-718.

DOI: 10.1016/j.compgeo.2007.11.005

[10] Jamiolkowski, M., Ladd, C.C., Germaine, J.T., and Lancellotta, R. (1985). New developments in field and laboratory testing of soils., In Proc. 11th Int. Conference on Soil Mech. and Found. Engrg., 1, 57-153.

[11] Kirkgard, M. M. and Lade, P. V. (1993). Anisotropic Three-Dimensional Behavior of a normally consolidated clay., Canadian Geotech. J., 30, 848-858.

DOI: 10.1139/t93-075

[12] Callisto, L. and Calabresi, G. (1998). Mechanical Behaviour of a Natural Soft Clay., Geotechnique, 48(4), 495-513.

DOI: 10.1680/geot.1998.48.4.495
