Experimental and Numerical Study on Mode I-II Crack Propagation for Small Size Specimens of Concrete

Abstract:

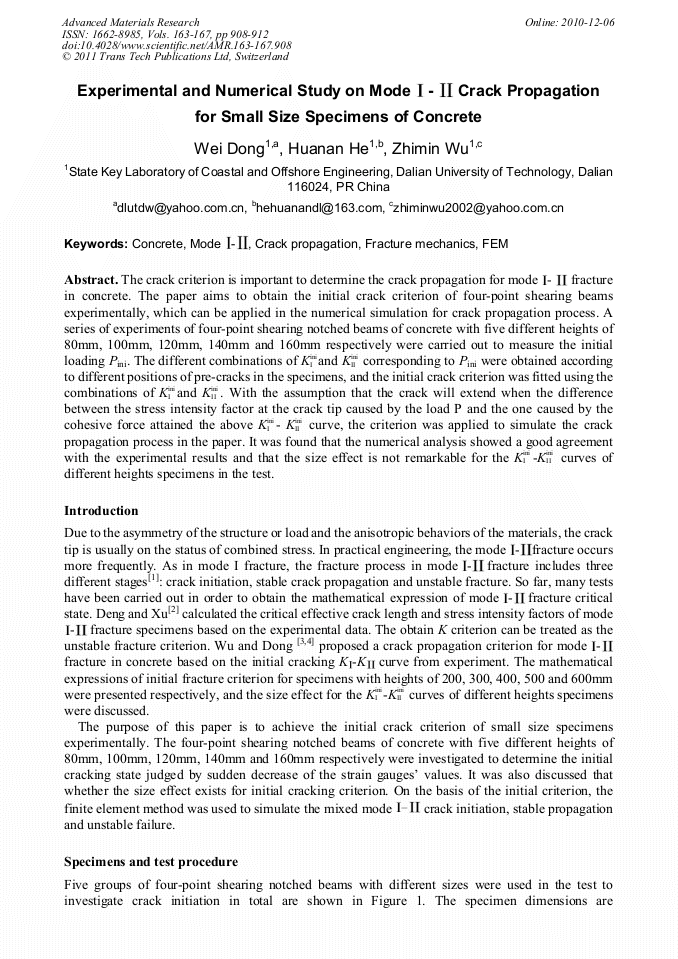

Article Preview

The crack criterion is important to determine the crack propagation for mode I-II fracture in concrete. The paper aims to obtain the initial crack criterion of four-point shearing beams experimentally, which can be applied in the numerical simulation for crack propagation process. A series of experiments of four-point shearing notched beams of concrete with five different heights of 80mm, 100mm, 120mm, 140mm and 160mm respectively were carried out to measure the initial loading Pini. The different combinations of KiniI and KiniII corresponding to Pini were obtained according to different positions of pre-cracks in the specimens, and the initial crack criterion was fitted using the combinations of KiniI and KiniII. With the assumption that the crack will extend when the difference between the stress intensity factor at the crack tip caused by the load P and the one caused by the cohesive force attained the above KiniI- KiniII curve, the criterion was applied to simulate the crack propagation process in the paper. It was found that the numerical analysis showed a good agreement with the experimental results and that the size effect is not remarkable for the KiniI-KiniII curves of different heights specimens in the test.

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Edited by:

Lijuan Li

Pages:

908-912

DOI:

10.4028/www.scientific.net/AMR.163-167.908

Citation:

W. Dong et al., "Experimental and Numerical Study on Mode I-II Crack Propagation for Small Size Specimens of Concrete", Advanced Materials Research, Vols. 163-167, pp. 908-912, 2011

Online since:

December 2010
