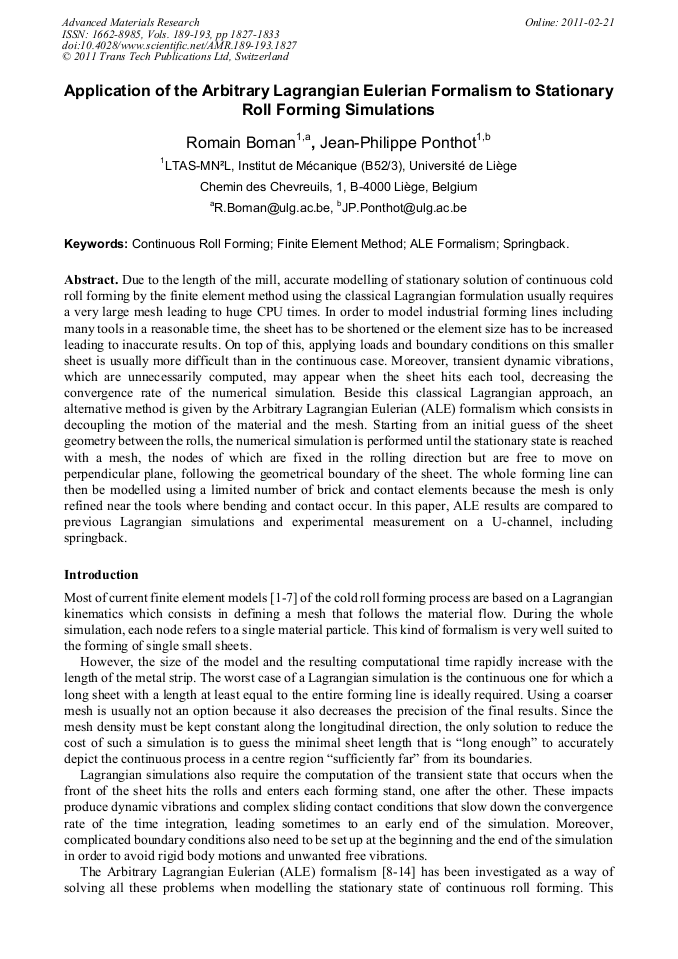

Application of the Arbitrary Lagrangian Eulerian Formalism to Stationary Roll Forming Simulations

Abstract:

Due to the length of the mill, accurate modelling of stationary solution of continuous cold roll forming by the finite element method using the classical Lagrangian formulation usually requires a very large mesh leading to huge CPU times. In order to model industrial forming lines including many tools in a reasonable time, the sheet has to be shortened or the element size has to be increased leading to inaccurate results. On top of this, applying loads and boundary conditions on this smaller sheet is usually more difficult than in the continuous case. Moreover, transient dynamic vibrations, which are unnecessarily computed, may appear when the sheet hits each tool, decreasing the convergence rate of the numerical simulation. Beside this classical Lagrangian approach, an alternative method is given by the Arbitrary Lagrangian Eulerian (ALE) formalism which consists in decoupling the motion of the material and the mesh. Starting from an initial guess of the sheet geometry between the rolls, the numerical simulation is performed until the stationary state is reached with a mesh, the nodes of which are fixed in the rolling direction but are free to move on perpendicular plane, following the geometrical boundary of the sheet. The whole forming line can then be modelled using a limited number of brick and contact elements because the mesh is only refined near the tools where bending and contact occur. In this paper, ALE results are compared to previous Lagrangian simulations and experimental measurement on a U-channel, including springback.

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 1827-1833
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.1827
• Online since: February 2011
• Authors: Romain Boman, Jean Philippe Ponthot
• Keywords: ALE Formalism, Continuous Roll Forming, Finite Element Model (FEM), Springback

References

[1] Q.V. Bui, L. Papeleux and J. -P. Ponthot: Numerical simulation of springback using enhanced assumed strain elements, Journal of Materials Processing Technology Vol. 153-154, pp.314-318 (2004).

DOI: 10.1016/j.jmatprotec.2004.04.342

[2] Q. V. Bui, L. Papeleux, R. Boman, J. -P. Ponthot, P. Wouters, R. Kergen and G. Daolio: Numerical Simulation of Cold Roll Forming Process, Proceedings of ESAFORM 2005 : the 8th Esaform conference on material forming, pp.141-144 (2005).

DOI: 10.1007/1-4020-5370-3_543

[3] Q. V. Bui, R. Boman, L. Papeleux, P. Wouters, R. Kergen, G. Daolio, P. Flores, A. -M. Habraken and J. -P. Ponthot: Springback and Twist Prediction of Roll Formed Parts. Proceedings of IDDRG 2006: International Deep Drawing Research Group Conference. Porto, Portugal. June 17-19 (2006).

[4] M. Brunet, S. Mguil and P. Pol: Modelling of a roll-forming process with a combined 2D and 3D FEM code, Journal of Materials Processing Technology, Vol. 80-81, pp.213-219 (1998).

DOI: 10.1016/s0924-0136(98)00107-1

[5] F. Heislitz, H. Livatyali, M. A. Ahmetoglu, G. L. Kinzel and T. Altan: Simulation of roll forming process with the 3-D FEM code PAM-STAMP, Journal of Materials Processing Technology, Vol. 59, pp.59-67 (1996).

DOI: 10.1016/0924-0136(96)02287-x

[6] S. Hong, S. Lee and N. Kim: A parametric study on forming length in roll forming, Journal of Materials Processing Technology, Vol. 113, pp.774-778 (2001).

DOI: 10.1016/s0924-0136(01)00711-7

[7] M. Lindgren: Cold roll forming of a U-channel made of high strength steel, Journal of Materials Processing Technology, Vol. 186, 77-81 (2007).

DOI: 10.1016/j.jmatprotec.2006.12.017

[8] R. Boman and J. -P. Ponthot: Finite element simulation of lubricated contact in rolling using Arbitrary Lagrangian Eulerian formulation, Computer Methods in Applied Mechanics and Engineering, Vol. 193, pp.4323-4353 (2004).

DOI: 10.1016/j.cma.2004.01.034

[9] R. Boman, L. Papeleux, Q.V. Bui and J-P. Ponthot: Application of the Arbitrary Lagrangian Eulerian Formulation to the Numerical Simulation of Cold Roll Forming Process. Journal of Materials Processing Technology, Vol. 177, pp.621-625 (2006).

DOI: 10.1016/j.jmatprotec.2006.04.120

[10] R. Boman, L. Papeleux and J. -P. Ponthot: Cold Roll Forming and Metal Cutting Simulation using a 3D Arbitrary Lagrangian Eulerian Formulation, Modelling in Mechanical and Civil Engineering. Selected papers of Prof. Nguyen Dang Hung's former students, de Saxcé G. & Moes N. (ed. ), City Publishing House, pp.141-157 (2006).

DOI: 10.1007/1-4020-5370-3_543

[11] D. J. Benson: An efficient, accurate, simple ALE method for nonlinear finite element programs, Computer Methods in Applied Mechanics and Engineering, Vol. 72, pp.305-350 (1989).

DOI: 10.1016/0045-7825(89)90003-0

[12] D. J. Benson: Momentum advection on unstructured staggered quadrilateral meshes, International Journal for Numerical Methods in Engineering, Vol. 75, pp.1549-1580 (2008).

DOI: 10.1002/nme.2310

[13] J. Donéa, A. Huerta, J. -P. Ponthot and A. Rodriguez-Ferran: Encyclopaedia of Computational Mechanics, Volume 1 14 Stein, E. and de Borst, R. and Hughes T.J.R. , pp.413-437 (2004).

[14] J. -P. Ponthot: Traitement unifié de la Mécanique des Milieux Continus solides en grandes transformations par la méthode des éléments finis, PhD thesis (in French), University of Liège (1995).

DOI: 10.1080/12506559.2000.10511494

[15] G. Halmos: Roll Forming Handbook, edited by George Halmos, Taylor & Francis Group, 584 pages (2006).
