Anslysis of the 5-m Heavy Plate Mill Stand Based on MSC.Marc Finite Element Method

Abstract:

The stand is the largest and most important part in rolling-mill components.It bears tremendous rolling force, instant impact and part of the rolling torque during the rolling process .In addition ,roller system ,pressure and balance system also installed in it. Therefore, rolling mill must be equipped with sufficient strength and stiffness to ensure the safety of mill equipment and accuracy of the size of products. In this paper, It uses the finite element simulation software MSC.Marc to simulate and analyze the 3-D finite 5-m heavy plate mill housing of Baosteel . which can provides effective theoretical basis to the optimization of technology establish and the safety of equipment. The simulation results can be used to verify the accuracy of stress and strain field measured data for the mill frame, It also can infer parts of rolling mill which is not detected and unpredictable of the stress and strain states, and further to learn about weak parts of frame in stiffness and strength facets.

You might also be interested in these eBooks

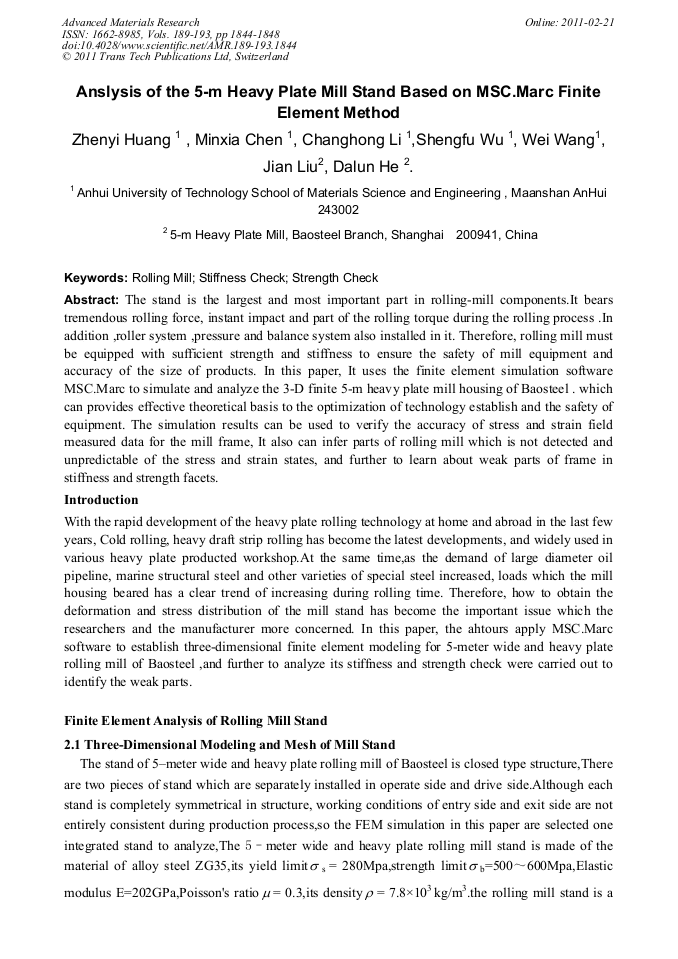

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

1844-1848

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.1844

Citation:

Cite this paper

Online since:

February 2011

Authors:

Zhen Yi Huang, Min Xia Chen, Chang Hong Li, Sheng Fu Wu, Wei Wang, Jian Liu, Da Lun He

Keywords:

Rolling Mill, Stiffness Check, Strength Check

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] kai Wu. Strength Analysis of Hot Strip Mill Stands[J]. China Rolling, 2001，23（1）: 29～32. （In Chinese）.

Google Scholar

[2] jingzhong Xing, jun Li. Methods of Creating Model and Grid Partition of ANSYS[J]. China Water Transport, 2006, 6(9): 116-118. （In Chinese）.

Google Scholar

[3] ganwei Cai. A Finte Element Model For Dynamic Analysis of Rolling Mill[J]. Chinese Journal of Mechanical Engineering, 2000, (7): 66-68. 116-118. （In Chinese）.

Google Scholar

[4] jiuming Yu. Mechanical Equipment of Material forming[M]. Northeastern University Press, 2002: 87～95. （In Chinese）.

Google Scholar

[5] zhao Liu, qiusheng Wang. Mechanics of Materials[M]. Harbin Institute of Technology Press, 2008: 46. （In Chinese）.

Google Scholar

[6] hongwen Liu. Mechanics of Materials[M]. Higher Education Press, 1991: 36. （In Chinese）.

Google Scholar
