Finite Element Simulation and Experimental Study of the Effect of Cone Parameter on Thickness Distribution in Hydroforming of Conical-Cylindrical Cups

Abstract:

Forming conical parts is one of the complex and difficult fields in sheet metal forming processes; because of the low contact area of the sheet with the punch in the initial stages of forming, too much tension is applied to the sheet causing burst occurrence. Furthermore, since the major part of the sheet surface between the blank holder and punch tip is free, wrinkles appear on the wall of the drawn parts. Therefore, these parts are normally formed in the industry by spinning, explosive forming or multi-stage deep drawing processes. In this paper, the parameters in the process of hydroforming conical parts along with using finite element simulation and experimental procedures have been studied. The punch radiuses parameters (the punch tip radius and the radius between the conical and cylinder section and their effects on the bursting and thickness distribution were investigated.

You might also be interested in these eBooks

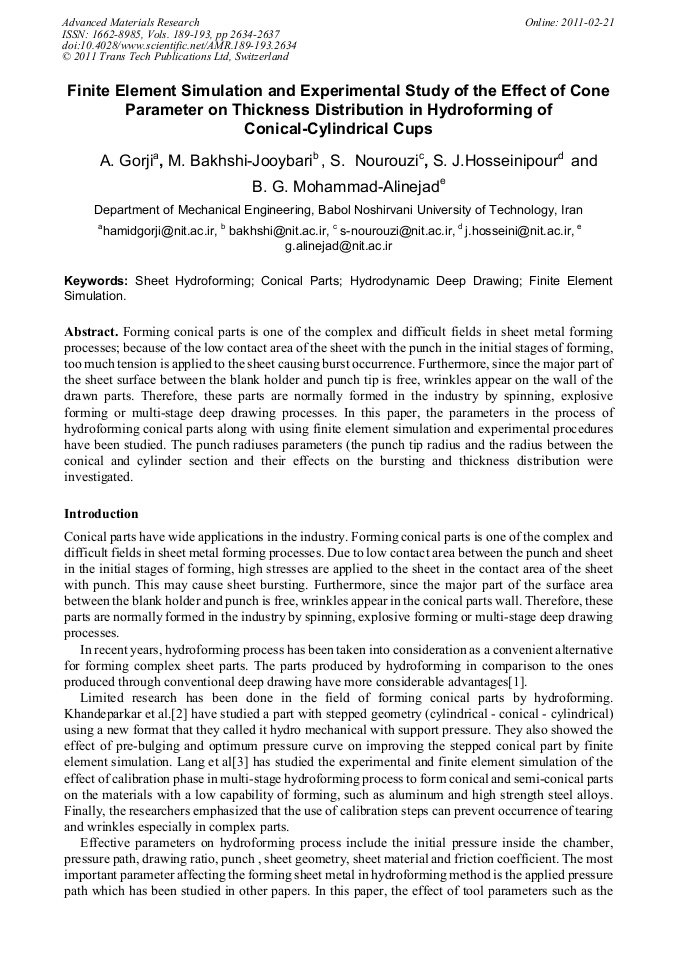

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

2634-2637

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.2634

Citation:

Cite this paper

Online since:

February 2011

Authors:

Abdol Hamid Gorji, M. Bakhshi, S. Nourouzi, S.J. Hosseinipour, G. Mohammad-Alinejad

Keywords:

Conical Part, Finite Element (FE) Simulation, Hydrodynamic Deep Drawing, Sheet Hydroforming

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhang, S.H., Wang, Z.R., Xu, Y., Wang, Z.T., and Zhou, L.X.: Recent developments in sheet hydroforming technology. J. Mater. Process. Technol., (2004), 151, 237-241.

DOI: 10.1016/j.jmatprotec.2004.04.054

Google Scholar

[2] Khandeparkar, T. and Liewald, M. Hydromechanical deep drawing of cups with stepped geometries. J. Mater. Process. Technol., (2008), 202, 246-254.

DOI: 10.1016/j.jmatprotec.2007.08.072

Google Scholar

[3] L. Lang, G. Gu, T. Li, X. Zhou,: Numerical and experimental confirmation of the calibration stage's effect in multi-operation sheet hydroforming using poor-formability materials, journal of materials processing technology 2 0 1 ( 2 0 0 8 ) 97–100.

DOI: 10.1016/j.jmatprotec.2007.11.233

Google Scholar

[4] A. Gorji, H. Alavi., M. Bakhshi, G. Mohammad-Alinejad and S. Nourouzi,: Development of hydrodynamic Deep Drawing Assisted by Radial Pressure for Conical-Cylindrical Parts,J. steel research int, Volume 81, (2010).

Google Scholar
