Three Dimensions Construction Model and Finite Element Analysis of Hydraulic Support and Relevant Model

Abstract:

Hydraulic support is an important equipment of coal mine production. Its design and manufacture level affects the safe production and economic benefits of coal mine directly. This paper took ZT6500/19.5/34 hydraulic support as an example. First, three dimensions solid models of the type simplified hydraulic support prototype and its 1:5 model were constructed by three dimensions construction model software SolidWorks. Then, three dimensions solid models were led in ANSYS software. Finally, the strength test of the type hydraulic support prototype and its 1:5 model were proceeded under base torsion working condition by ANSYS software. The relevant total displacement distribution rule and equivalent stress distribution rule of the type simplified hydraulic support prototype and its 1:5 model were found. The proportion relation of total displacement and equivalent stress between the type simplified hydraulic support prototype and its 1:5 model were confirmed. This provides an effective way of design and research hydraulic support.

You might also be interested in these eBooks

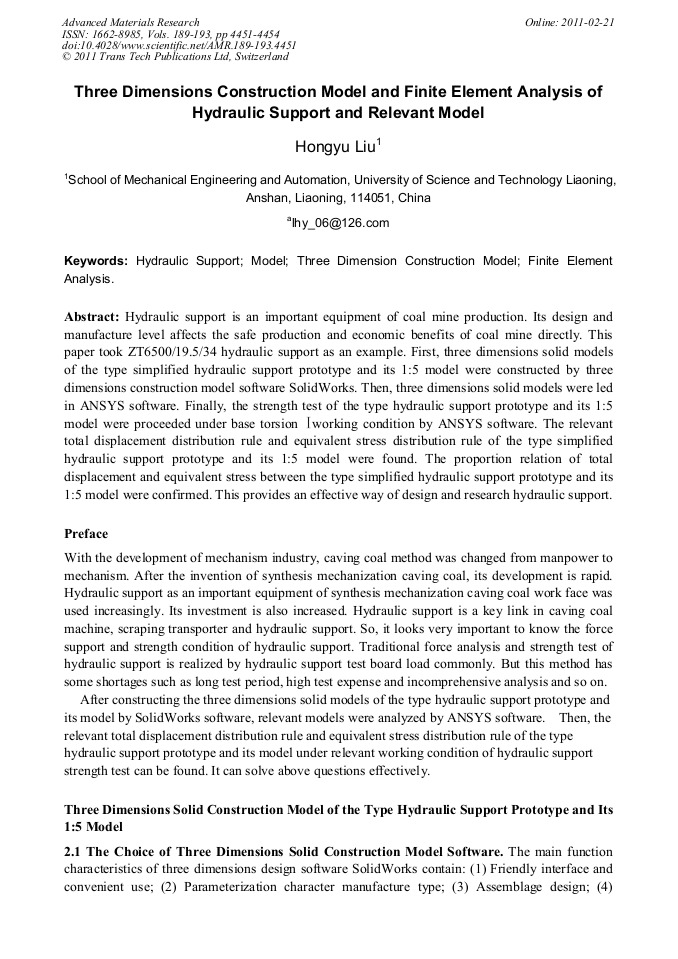

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

4451-4454

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.4451

Citation:

Cite this paper

Online since:

February 2011

Authors:

Hong Yu Liu

Keywords:

Finite Element Analysis (FEA), Hydraulic Support, Model, Three Dimension Construction Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hongyu Liu, Xun Fun: Applying SolidWorks Software to Improve the Design Capability for Hyrdaulic Support (Coal Mine Machinery, Harbin 2005). In Chinese.

Google Scholar

[2] Jin Duan, Dong Ni and Guoye Wang: ANSYS 10. 0 Structure Analysis from Accidence to Mastery (Weapon Industry Publishing House, Beijing 2006). In Chinese.

Google Scholar

[3] Guofa Wang: Hydraulic Support Technology (Coal Industry Publishing House, Beijing 1999).

Google Scholar

[4] Peoples Republic of China Coal Industry Standard MT312-2000 General Specification for Powered Support (Coal Industry Publishing House, Beijing 2001). In Chinese.

Google Scholar
