Preparation and Properties of Tapioca Starch-Banana Fiber Composites Modified with Magnesium Hydroxide

Xian Zhong Mo; Xiang Qi; Yu Xiang Zhong; Ren Huan Li; Chen Mo

doi:10.4028/www.scientific.net/AMR.194-196.1707

Paper Titles

Investigation of Microstructure and Property of the Fe₃Al/Al₂O₃ Composites Fabricated by Mechanical Alloying Process and Plasma Active Sintering Process
p.1689

On the Improvement of Fiber Reinforced Concrete through Surface Modification of Polypropylene by Grafting Method
p.1693

Interlaminar Fracture Toughness of Composite Laminate with Splicing Plies
p.1697

Synthesis of B₄C/Al-B₄C/TiB₂ Composite with a Two-Layer Structure
p.1703

Preparation and Properties of Tapioca Starch-Banana Fiber Composites Modified with Magnesium Hydroxide
p.1707

Seismic Reliability Analysis of MDOF Systems Based on Odd Exponent Wavelet
p.1711

Fabrication Porous Si₃N₄ -Glass Composite by Combustion Synthesis
p.1716

Microstructure and Mechanical Property of an ECAP Processed Al-Mg₂Si In Situ Composite by Using a Combined Route
p.1720

Improvement in the Thermal Shock Resistance of Zirconia Ceramic by the Addition of Aluminium Titanate
p.1724

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 194-196Preparation and Properties of Tapioca...

Preparation and Properties of Tapioca Starch-Banana Fiber Composites Modified with Magnesium Hydroxide

Abstract:

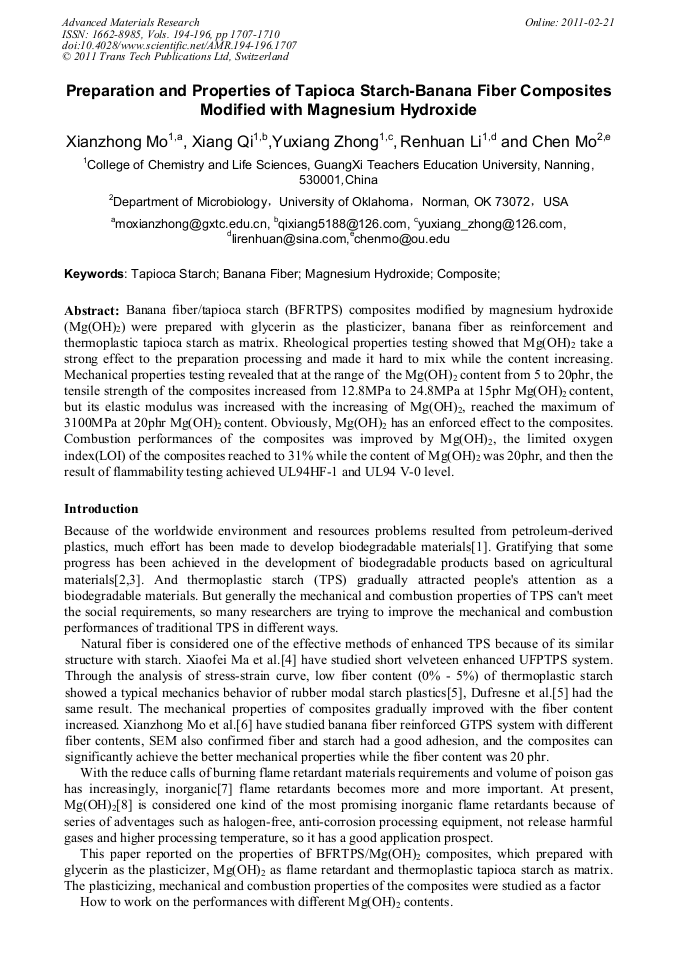

Banana fiber/tapioca starch (BFRTPS) composites modified by magnesium hydroxide (Mg(OH)₂) were prepared with glycerin as the plasticizer, banana fiber as reinforcement and thermoplastic tapioca starch as matrix. Rheological properties testing showed that Mg(OH)₂ take a strong effect to the preparation processing and made it hard to mix while the content increasing. Mechanical properties testing revealed that at the range of the Mg(OH)₂ content from 5 to 20phr, the tensile strength of the composites increased from 12.8MPa to 24.8MPa at 15phr Mg(OH)₂ content, but its elastic modulus was increased with the increasing of Mg(OH)₂, reached the maximum of 3100MPa at 20phr Mg(OH)₂ content. Obviously, Mg(OH)₂ has an enforced effect to the composites. Combustion performances of the composites was improved by Mg(OH)₂, the limited oxygen index(LOI) of the composites reached to 31% while the content of Mg(OH)₂ was 20phr, and then the result of flammability testing achieved UL94HF-1 and UL94 V-0 level.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 194-196)

Pages:

1707-1710

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.194-196.1707

Citation:

Cite this paper

Online since:

February 2011

Authors:

Xian Zhong Mo, Xiang Qi, Yu Xiang Zhong, Ren Huan Li, Chen Mo

Keywords:

Banana Fiber, Composite, Magnesium Hydroxide, Tapioca Starch

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. P. Klemchuk. Polymer Degradation and Stability. Vol. 27(1990), p.183.

Google Scholar

[2] A. A. S. Curvelo, A. J. F. Carvalho, & J. A. M. Agnelli. Carbohydrate Polymer. Vol. 45(2001), p.183.

Google Scholar

[3] A. S. Herrmann, J. Nickel, & U. Riedel. Polymer Degradation and Stability. Vol. 59(1998), p.251.

Google Scholar

[4] X.F. Ma, & J.G. Yu. Fine Chemicals. Vol. 21(2004), p.366 In Chinese.

Google Scholar

[5] A Dufresne, D Dupeye, & M R Vignon. Applied Polymer Science. Vol. 76(2000), p. (2080).

Google Scholar

[6] X.Z. Mo, Y.X. Zhong, & S.J. Yu. Advanced Materials Research. Vols. 87-88 (2010), p.439.

Google Scholar

[7] S.Q. Chang, T.X. Xie & G.S. Yang. Polymer Degradation and Stability. Vol. 91( 2006), p.3266.

Google Scholar

[8] SAIN M，PARK S H，& SUHARA F．Polymer Degradation and Stability. Vol. 83(2004), p.363.

Google Scholar

[9] J.Y. Pang, X.Z. Mo, & Y. Liang. Technology and Development of Chemical Industry. Vol. 37(2008), p.6.

Google Scholar

[10] A.I. Fernández L. Haurie, J. Formosa, J.M. Chimenos, M. Antunes & J.I. Velasco. Polymer Degradation and Stability. Vol. 94(2009), p.57.

DOI: 10.1016/j.polymdegradstab.2008.10.008

Google Scholar
