Investigation of Microstructure and Property of the Fe₃Al/Al₂O₃ Composites Fabricated by Mechanical Alloying Process and Plasma Active Sintering Process

Abstract:

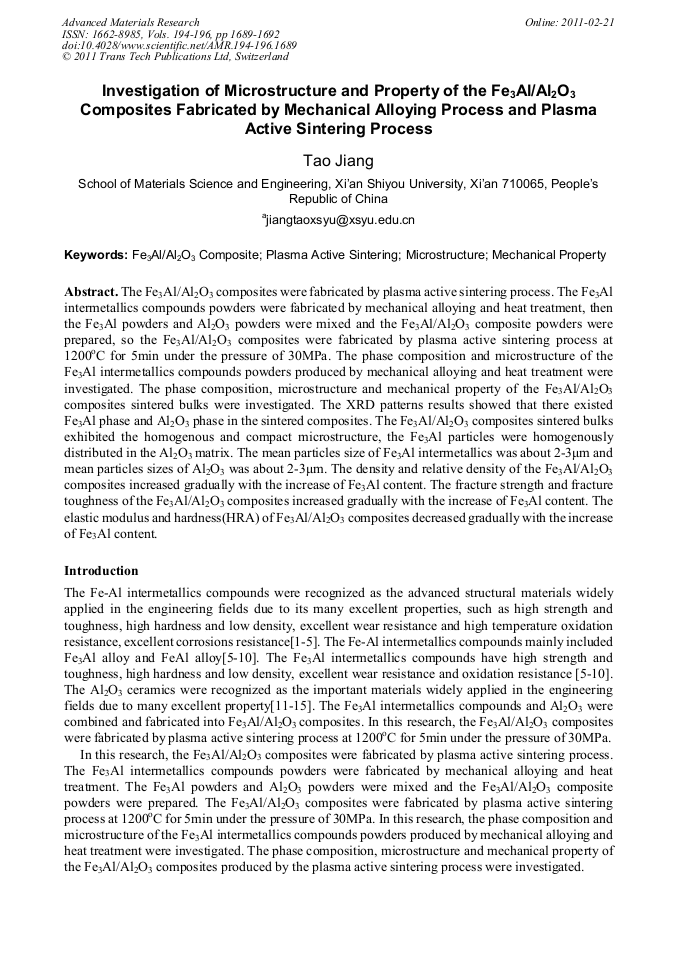

The Fe₃Al/Al₂O₃ composites were fabricated by plasma active sintering process. The Fe₃Al intermetallics compounds powders were fabricated by mechanical alloying and heat treatment, then the Fe₃Al powders and Al₂O₃ powders were mixed and the Fe₃Al/Al₂O₃ composite powders were prepared, so the Fe₃Al/Al₂O₃ composites were fabricated by plasma active sintering process at 1200°C for 5min under the pressure of 30MPa. The phase composition and microstructure of the Fe₃Al intermetallics compounds powders produced by mechanical alloying and heat treatment were investigated. The phase composition, microstructure and mechanical property of the Fe₃Al/Al₂O₃ composites sintered bulks were investigated. The XRD patterns results showed that there existed Fe3Al phase and Al₂O₃ phase in the sintered composites. The Fe₃Al/Al₂O₃ composites sintered bulks exhibited the homogenous and compact microstructure, the Fe₃Al particles were homogenously distributed in the Al₂O₃ matrix. The mean particles size of Fe₃Al intermetallics was about 2-3μm and mean particles sizes of Al₂O₃ was about 2-3μm. The density and relative density of the Fe₃Al/Al₂O₃ composites increased gradually with the increase of Fe₃Al content. The fracture strength and fracture toughness of the Fe₃Al/Al₂O₃ composites increased gradually with the increase of Fe₃Al content. The elastic modulus and hardness(HRA) of Fe₃Al/Al₂O₃ composites decreased gradually with the increase of Fe₃Al content.

• Periodical: Advanced Materials Research (Volumes 194-196)
• Pages: 1689-1692
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.194-196.1689
• Online since: February 2011
• Authors: Tao Jiang
• Keywords: Fe₃Al/Al₂O₃ Composite, Mechanical Property, Microstructure, Plasma Active Sintering

References

[1] K. Wolski, C.G. Le and P. Delcroix: Mater. Sci. Eng. A. Vol. 207 (1996), p.97.

[2] F. Cardellini, V. Contini and R. Gupta: J. Mater. Sci. Vol. 33 (1998), p.2519.

[3] F. Cardellini, V. Contini and G. Mazzone: J. Mater. Sci. Vol. 31 (1996), p.4175.

[4] B. Huang, K.N. Ishihara and P.H. Shingu: Mater. Sci. Eng. A. Vol. 231 (1997), p.72.

[5] X. Amils, J. Nogues and S. Surinach: Intermetallics. Vol. 8 (2000), p.805.

[6] K. Kato, T. Masui: J. Japan. Soc. Powd and Powd. Metall. Vol. 47 (2000), p.614.

[7] C.G. Mckamey, J.H. Devan and P.T. Tortorelli: J. Mater. Res. Vol. 6 (1991), p.1779.

[8] S.M. Zhu, T. Makoto and S. Kazushi: Mater. Sci. Eng. A. Vol. 292 (2000), p.83.

[9] B.H. Rabin, R.N. Weright: Metal. Trans. A. Vol. 22 (1991), p.277.

[10] O. Ikeda, I. Ohnuma and R. Kainuma: Intermetallics. Vol. 9 (2001), p.755.

[11] S. Schicker, D.E. Garcia: J. Am. Ceram. Soc. Vol. 80(1997), p.2294.

[12] S. Schicker, D.E. Garcia and J. Bruhn: Acta. Mater. Vol. 46(1998), p.2485.

[13] S.K. Mukherjee, S. Bandyopadhyay: Composites B. Vol. 28(1997), p.45.

[14] M. Inoue, H. Nagao and K. Suganuma: Mater. Sci. Eng. A. Vol. 258 (1998), p.298.

[15] R. Subramanian, C.G. McKamey: Mater. Sci. Eng. A. Vol. 254 (1998), p.119.
