Growth of Double-Side Tl-2212 Thin Film on CeO₂-Buffered MgO Substrate

Abstract:

The double-side Tl-2212 films were fabricated on CeO₂-buffered MgO substrates by dc magnetron sputtering and post-annealing method. The RF magnetron sputtering technology was used to grow CeO₂ buffer layers. XRD and SEM measurements showed that the CeO₂ films on annealed MgO substrates were highly c-axis orientation, and the Tl-2212 superconducting films on both sides had similar morphology and crystalline structure. For both sides of Tl-2212 films, the critical transition temperatures (Tc) were above 106 K, and the critical current densities (J_c) were above 2.2 MA/cm² (77 K, 0 T).

You might also be interested in these eBooks

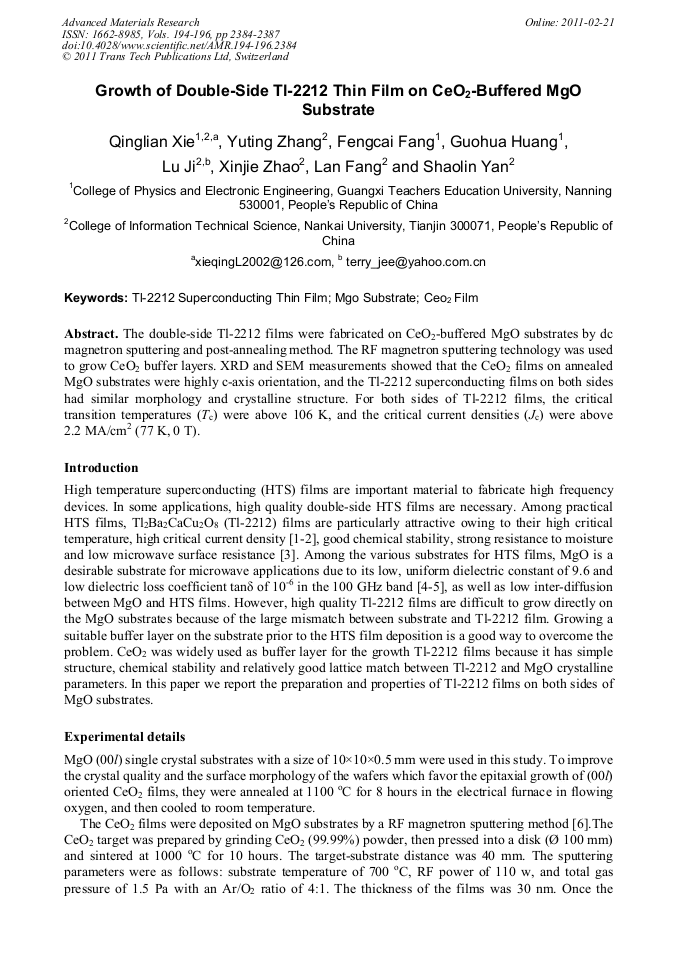

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 194-196)

Pages:

2384-2387

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.194-196.2384

Citation:

Cite this paper

Online since:

February 2011

Authors:

Qing Lian Xie, Yu Ting Zhang, Feng Cai Fang, Guo Hua Huang, Lu Ji, Xin Jie Zhao, Lan Fang, Shao Lin Yan

Keywords:

CeO₂ Film, MgO Substrate, Tl-2212 Superconducting Thin Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S.L. Yan, L. Fang, Q.X. Song, J. Yan, Y.P. Zhu, J.H. Chen and S.B. Zhang: Appl. Phys. Lett., Vol. 63 (1993), p.1845.

Google Scholar

[2] S.L. Yan, L. Fang, M.S. Si, H.L. Cao, Q.X. Song, J. Yan, X.D. Zhou and J.M. Hao: Supercond. Sci. Technol., Vol. 7 (1994), p.681.

Google Scholar

[3] W.L. Holstein, L.A. Parisi, C. Wilker and R.B. Flippen: Appl. Phys. Lett. Vol. 60 (1992), p. (2014).

Google Scholar

[4] P. Badica, A. Sundaresan, A. Crisan, J. C. Nie, M. Hirai, S. Fujiwara, H. Kit and H. Ihara: Physica C, Vol. 383(2003), pp.482-490.

DOI: 10.1016/s0921-4534(02)01836-1

Google Scholar

[5] S.C. Speller, H.Z. Wu and C.R.M. Grovenor: IEEE Transactions on Applied Superconductivity, Vol. 13(2003), p.2713.

Google Scholar

[6] X.J. Zhao, L. Ji, C. Zhang, L. Fang and S.L. Yan: Journal of the Korean Physical Society, Vol. 48(2006), p.1143.

Google Scholar

[7] Q.L. Xie, S.L. Yan, X.J. Zhao, F. Lan, L. Ji, Y.T. Zhang, S.T. You, J.L. Li, X. Zhang, T.G. Zhou, T. Zuo and H.W. Yue: Acta Phys. Sin. Vol. 57 (2008), p.519 (in Chinese).

Google Scholar

[8] Q.L. Xie, S.L. Yan, G.H. Huang, Y.T. Zhang, X.J. Zhao and L. Fang: Journal of Synthetic Crystals, Vol. 39 (2010), p.1156(in Chinese).

Google Scholar

[9] H. Schneidewind, M. Manzel, G. Bruchlos and K. Kirsch: Supercond. Sci. Technol., Vol. 14(2001), p.200.

Google Scholar
