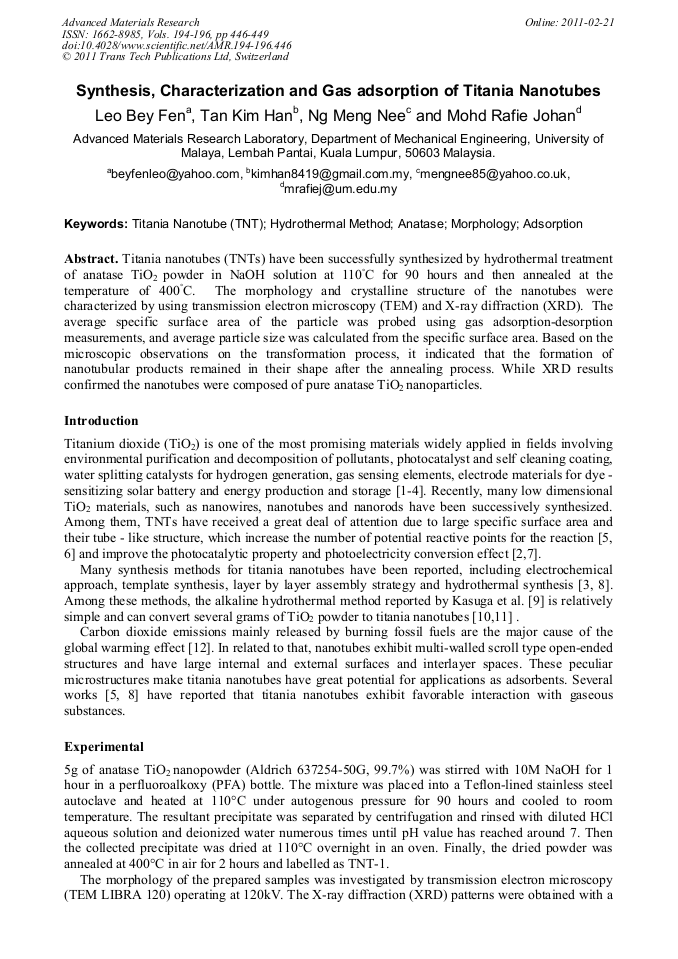

Synthesis, Characterization and Gas Adsorption of Titania Nanotubes

Abstract:

Titania nanotubes (TNTs) have been successfully synthesized by hydrothermal treatment of anatase TiO₂ powder in NaOH solution at 110°C for 90 hours and then annealed at the temperature of 400°C. The morphology and crystalline structure of the nanotubes were characterized by using transmission electron microscopy (TEM) and X-ray diffraction (XRD). The average specific surface area of the particle was probed using gas adsorption-desorption measurements, and average particle size was calculated from the specific surface area. Based on the microscopic observations on the transformation process, it indicated that the formation of nanotubular products remained in their shape after the annealing process. While XRD results confirmed the nanotubes were composed of pure anatase TiO₂ nanoparticles.

• Periodical: Advanced Materials Research (Volumes 194-196)
• Pages: 446-449
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.194-196.446
• Online since: February 2011
• Authors: Bey Fen Leo, Kim Han Tan, Meng Nee Ng, Mohd Rafie Johan
• Keywords: Adsorption, Anatase, Hydrothermal Method, Morpholoy, Titania Nanotube (TNT)

References

[1] M.A. Khan, H.T. Jung and O.B. Yang: Chemical Physics Letters Vol. 458 (1-3) (2008), pp.134-137.

[2] J.W. Zhang, Y. Wang, Z.S. Jin, Z.S. Wu and Z.J. Zhang: Applied Surface Science Vol. 254 (2008), pp.4462-4466.

[3] D. Wang, F. Zhou, Y. Liu and W.M. Liu: Materials Letters Vol. 62 (12-13) (2008), pp.1819-1822.

[4] N. Wang, H. Lin and J.B. Li: Thin solid films Vol. 496 (2) (2005), pp.649-652.

[5] V.G. Anastasia, A.G. Eugene, E.D. Lyudmila, A.A. Tatyana, B.T. Alexey, A.D. Yuri and D.T. Yuri: Applied Catalysis Vol. 362 (1-2) (2009), pp.20-25.

[6] Z.Y. Yuan and B.L. Su: Colloids and Surfaces A Vol. 241(1-3) (2004), pp.173-183.

[7] H.K. Seo, G.S. Kim, G.S. Ansari, Y.S. Kim, H.S. Shin, K.H. Shim and E.K. Suh: Solar energy Materials and Solar Cells Vol. 92 (11) (2008), pp.1533-1539.

DOI: 10.1016/j.solmat.2008.06.019

[8] K.P. Yu, W.Y. Yu, M.C. Kuo, Y.C. Liou and S.H. Chien : Applied catalysis B: Environmental Vol. 84 (1-2), pp.112-118.

[9] T. Kasuga, M. Hiramatsu, H. Akihiko, S. Toru and N. Koichi: Langmuir Vol. 14 (1998), pp.3160-3163.

[10] H.R. Peng, G.C. Li and Z.K. Zhang: Materials Letters Vol. 50 (10) (2005), pp.1142-1145.

[11] L.Q. Weng, S.H. Song, S. Hodgson, A. Baker and J. Yu: Journal of the European Ceramic Society Vol. 26 (8) (2005), pp.1405-1409.

[12] T.V. Nguyen and J.C.S. Wu: Applied Catalyst A: General Vol. 335 (1) (2007), pp.112-120.

[13] S.J. Gregg, K.S.W. Sing: Adsorption, Surface Area and Porosity (Academic Press, London, UK 1982).

[14] K.S.W. Sing, D.H. Everett, R.A.W. Haul, L. Moscou, R.A. Pierotti, J. Rouquerol, T. Siemieniewska: Pure Appl. Chem. (57) (1985), p.603.

DOI: 10.1002/9783527619474.ch11
