A Heat Transfer Model of Dropwise Condensation Underneath a Horizontal Substrate

Abstract:

For finding influence of the condensing surface to dropwise condensation heat transfer, a fractal model for dropwise condensation heat transfer has been established based on the self-similarity characteristics of droplet growth at various magnifications on condensing surfaces with considering influence of contact angle to heat transfer. It has been shown based on the proposed fractal model that the area fraction of drops decreases with contact angle increase under the same sub-cooled temperature; Varying the contact angle changes the drop distribution; higher the contact angle, lower the departing droplet size and large number density of small droplets; dropwise condensation translates easily to the filmwise condensation at the small contact angle ;the heat flux increases with the sub-cooled temperature increases, and the greater of contact angle, the more heat flux increases slowly.

You might also be interested in these eBooks

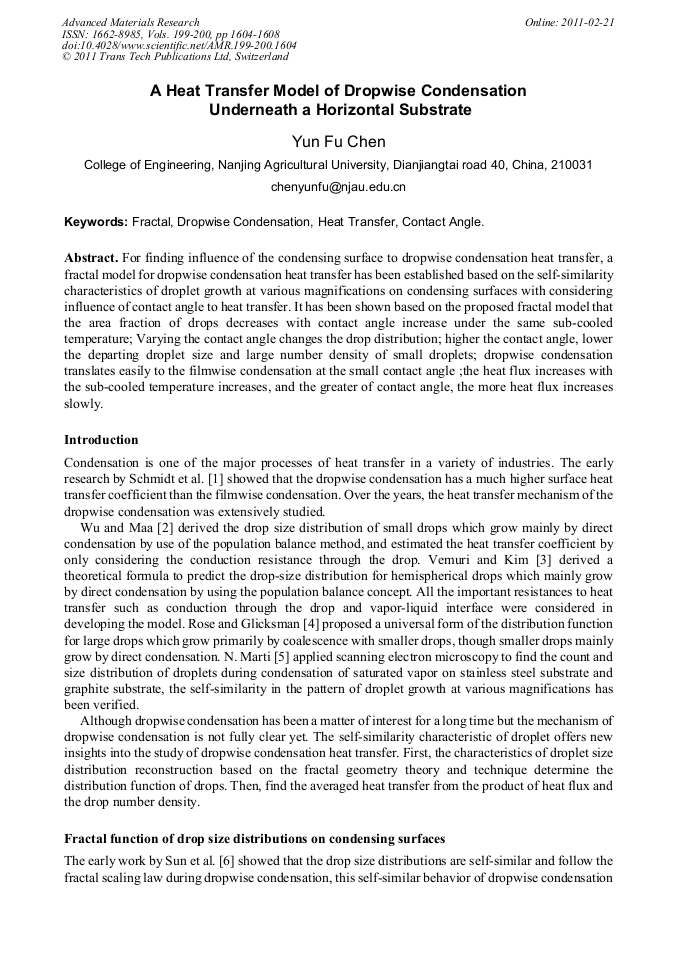

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 199-200)

Pages:

1604-1608

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.199-200.1604

Citation:

Cite this paper

Online since:

February 2011

Authors:

Yun Fu Chen

Keywords:

Contact Angle (CA), Dropwise Condensation, Fractal, Heat Transfer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. Schmidt, W. Schurig, W. Sellschopp: Tech. Mech. Thermodynamik, vol. l (1930), pp.53-63.

Google Scholar

[2] W. H. Wu, J. R. Maa: Chem. Eng. J., vol. 12 (1976), pp.225-231.

Google Scholar

[3] S. Vemuri, K. J. Kim: Int. J. Heat Mass Transfer, vol. 49 (2006), pp.649-657.

Google Scholar

[4] J. W. Rose, L.R. Glicksman: Int. J. Heat Mass Transfer, vol. 16 (1973), pp.411-425.

Google Scholar

[5] Maiti N , Desai U B , Ray A K: Thin Solid Films , vol. 376(2000), pp.16-25.

Google Scholar

[6] F.Z. Sun, M. Gao, S.H. Lei: Int. J. Nonlinear Numer. Simul. vol. 8 (2007), pp.211-222.

Google Scholar

[7] Maofei Mei, Boming Yu: Int. J. Heat Mass Transfer, vol. 52 (2009) , pp.4823-4828.

Google Scholar

[8] I. Tanasawa, J. Ochiai, Bull. Jap. Soc. Mech. Eng. vol. 16 (1973) , pp.1184-1197.

Google Scholar

[9] E . J. LeFevre , J . W. Rose : I nt. J. Heat Mass Transfer , vol. 8(1965) , pp.1117-1133.

Google Scholar

[10] Carey V. P: Liquid-vapor phase-change phenomena (Hemisphere Publishing Corp, New York 1992).

Google Scholar

[11] Graham C , Griffit h P: I nt. J. Heat Mass Transfer , vol. 16(1973), pp.337-346.

Google Scholar

[12] Nirmal Kumar Battoo: 20th National and 9th International ISHMT-ASME Heat and Mass Transfer Conference. pp.1330-1336. (2010).

Google Scholar

[13] [J.W. Rose,: Proc. Inst. Mech. Eng. vol. 216 (2002) , pp.115-127.

Google Scholar

[14] B.M. Yu, J.H. Li: Fractals , vol. 9 (2001) , pp.365-372.

Google Scholar
