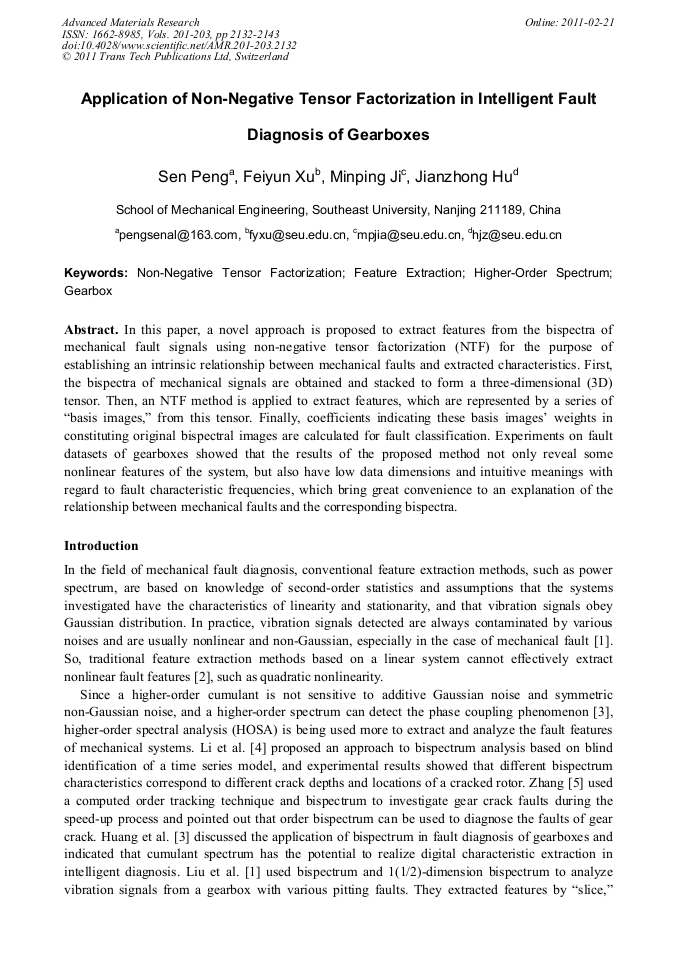

Application of Non-Negative Tensor Factorization in Intelligent Fault Diagnosis of Gearboxes

Abstract:

In this paper, a novel approach is proposed to extract features from the bispectra of mechanical fault signals using non-negative tensor factorization (NTF) for the purpose of establishing an intrinsic relationship between mechanical faults and extracted characteristics. First, the bispectra of mechanical signals are obtained and stacked to form a three-dimensional (3D) tensor. Then, an NTF method is applied to extract features, which are represented by a series of “basis images,” from this tensor. Finally, coefficients indicating these basis images’ weights in constituting original bispectral images are calculated for fault classification. Experiments on fault datasets of gearboxes showed that the results of the proposed method not only reveal some nonlinear features of the system, but also have low data dimensions and intuitive meanings with regard to fault characteristic frequencies, which bring great convenience to an explanation of the relationship between mechanical faults and the corresponding bispectra.

• Periodical: Advanced Materials Research (Volumes 201-203)
• Pages: 2132-2143
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.201-203.2132
• Online since: February 2011
• Authors: Sen Peng, Fei Yun Xu, Min Ping Jia, Jian Zhong Hu
• Keywords: Feature Extraction, Gear Box, Higher-Order Spectrum, Non-Negative Tensor Factorization

References

[1] Y.B. Liu, K.G. Yan, Y.B. Zhou, H. Xu, in: Proceedings of the 7th World Congress on Intelligent Control and Automation, Chongqing, China (2008), pp.6844-6846.

[2] J.Y. Yang, Y.Y. Zhang, Y.S. Zhu: Mechanical Systems and Signal Processing Vol. 21 (2007), p.2012-(2024).

[3] J.Y. Huang, S.H. Bi, H.X. Pan, X.W. Yang, in: Proceedings of the 2006 IEEE International Conference on Information Acquisition, Weihai, Shandong, China (2006), pp.1395-1399.

[4] Z.N. Li, J.J. Sun, J. Han, F.L. Chu, Y.Y. He, in: Proceedings of the 6th World Congress on Intelligent Control and Automation, Vol. 2, Dalian, China (2006), pp.5729-5733.

[5] Y.P. Zhang, in: Proceedings of the 6th World Congress on Intelligent Control and Automation, Vol. 2, Dalian, China (2006), pp.5726-5729.

[6] Q. Zhang, H. Wang, R.J. Plemmons, V.P. Pauca: Journal of the Optical Society of America A Vol. 25 (2008), pp.3001-3012.

[7] T. Hazan, S. Polak, A. Shashua, in: Proceedings of the 10th IEEE International Conference on Computer Vision, Vol. 1, Beijing, China (2005), pp.50-57.

[8] M. Welling, M. Weber: Pattern Recognition Letters Vol. 22 (2001), pp.1255-1261.

[9] A. Shashua, T. Hazan, in: Proceedings of the 22nd International Conference on Machine Learning, Bonn, Germany (2005), pp.793-800.

[10] D. Fitzgerald, M. Cranitch, E. Coyle, in: Proceedings of the 2006 Irish Signals and Systems Conference, Dublin, Ireland (2006), pp.509-513.

[11] S.W. Park, M. Savvides, in: Proceedings of the 2006 Conference on Computer Vision and Pattern Recognition Workshops, Vol. 2006, New York, NY, United States (2006), pp.49-54.

[12] A. Cichocki, R. Zdunek, S. Choi, R. Plemmons, S.I. Amari, in: Proceedings of the 2007 IEEE International Conference on Acoustics, Speech and Signal Processing, Vol. 3, Honolulu, HI, United States (2007), p. III1393-III1396.

DOI: 10.1109/icassp.2007.367106

[13] X.D. Zhang: Modern Signal Processing, second ed. (Tsinghua University Press, Beijing 2002) (in Chinese).

[14] R Tozzi, A.D. Santis: Annals of Geophysics Vol. 45 (2002), p.279 – 287.
