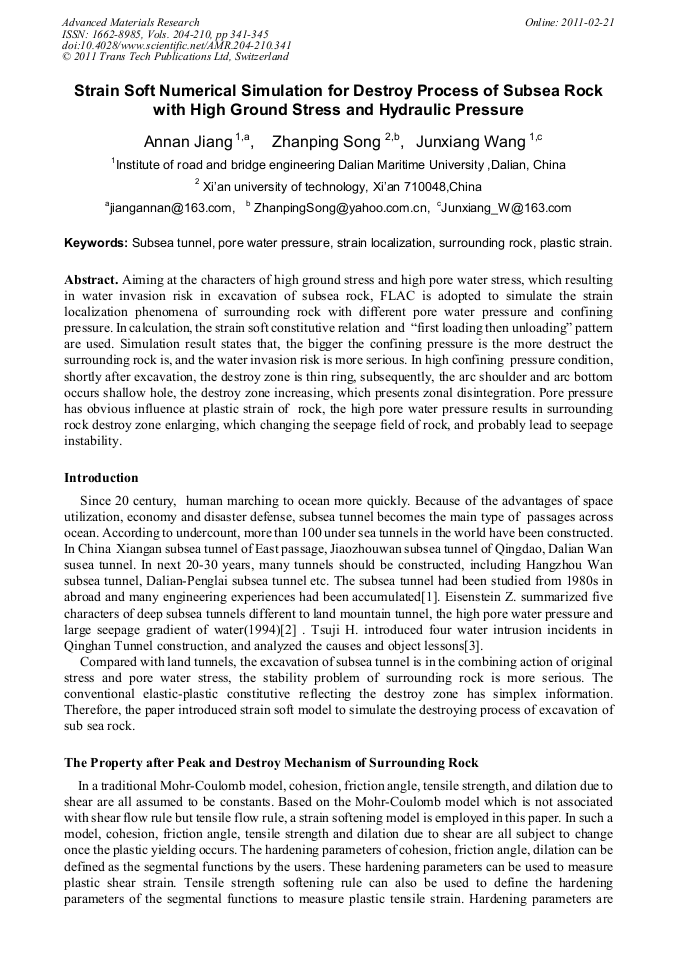

Strain Soft Numerical Simulation for Destroy Process of Subsea Rock with High Ground Stress and Hydraulic Pressure

Abstract:

Aiming at the characters of high ground stress and high pore water stress, which resulting in water invasion risk in excavation of subsea rock, FLAC is adopted to simulate the strain localization phenomena of surrounding rock with different pore water pressure and confining pressure. In calculation, the strain soft constitutive relation and “first loading then unloading” pattern are used. Simulation result states that, the bigger the confining pressure is the more destruct the surrounding rock is, and the water invasion risk is more serious. In high confining pressure condition, shortly after excavation, the destroy zone is thin ring, subsequently, the arc shoulder and arc bottom occurs shallow hole, the destroy zone increasing, which presents zonal disintegration. Pore pressure has obvious influence at plastic strain of rock, the high pore water pressure results in surrounding rock destroy zone enlarging, which changing the seepage field of rock, and probably lead to seepage instability.

• Periodical: Advanced Materials Research (Volumes 204-210)
• Pages: 341-345
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.204-210.341
• Online since: February 2011
• Authors: An Nan Jiang, Zhan Ping Song, Jun Xiang Wang
• Keywords: Plastic Strain, Pore Water Pressure, Strain Localization, Subsea Tunnel, Surrounding Rock

References

[1] Kuesel T R. Alternative concepts for undersea tunnels. Tunneling and Underground Space Technology(1986), 1(1) : 283–287.

DOI: 10.1016/0886-7798(86)90009-x

[2] Eisenstein Z. Large undersea tunnels and the progress of tunneling technology. Tunneling and Underground Space Technology(1994) 9(3) : 283–292.

DOI: 10.1016/0886-7798(94)90054-x

[3] Dahlo T S, Nilsen B. Stability and rock cover of hard rock subsea tunnels. Tunneling and Underground Space Technology(1994) 9(2): 151–158.

DOI: 10.1016/0886-7798(94)90026-4

[4] Hajiabdolmajid V, Kaiser PK, Martin CD. Modelling brittle failure of rock. Int J Rock Mech Min Sci (2002)39: 731–41.

DOI: 10.1016/s1365-1609(02)00051-5

[5] Itasca Consulting Group, Inc. FLAC2D (Fast Lagrangian Analysis of Continua in 2D Dimensions) User Manuals, Version 5. 0, Minneapolis, Minnesota. (2005).
