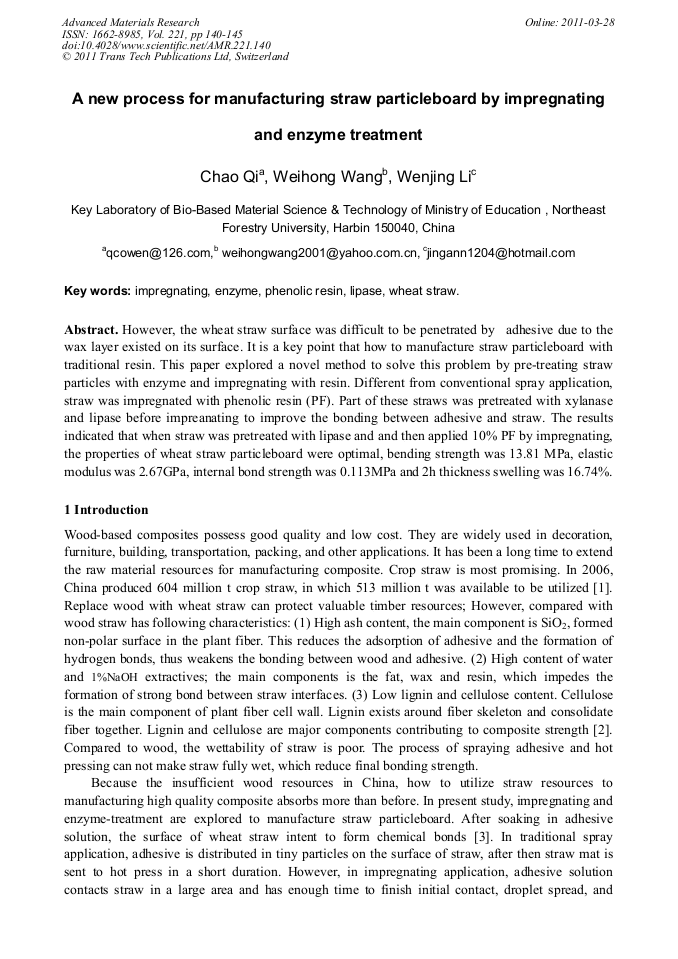

A New Process for Manufacturing Straw Particleboard by Impregnating and Enzyme Treatment

Abstract:

However, the wheat straw surface was difficult to be penetrated by adhesive due to the wax layer existed on its surface. It is a key point that how to manufacture straw particleboard with traditional resin. This paper explored a novel method to solve this problem by pre-treating straw particles with enzyme and impregnating with resin. Different from conventional spray application, straw was impregnated with phenolic resin (PF). Part of these straws was pretreated with xylanase and lipase before impreanating to improve the bonding between adhesive and straw. The results indicated that when straw was pretreated with lipase and and then applied 10% PF by impregnating, the properties of wheat straw particleboard were optimal, bending strength was 13.81 MPa, elastic modulus was 2.67GPa, internal bond strength was 0.113MPa and 2h thickness swelling was 16.74%.

• Periodical: Advanced Materials Research (Volume 221)
• Pages: 140-145
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.221.140
• Online since: March 2011
• Authors: Chao Qi, Wei Hong Wang, Wen Jing Li
• Keywords: Enzyme, Impregnating, Lipase, Phenolic Resin, Wheat Straw

References

[1] Z. M. Liu. Straw and wheat straw particleboard surface characteristics of bonding mechanism of [M]. Northeast Forestry University Press, 2006: 176-177.

[2] C. Jia Straw board surface characteristics and density gradient on the performance of veneer finishes [D]. Nanjing Forestry University, a master's degree thesis, 2005: 12.

[3] Zhongli Pana, Anna Cat hcartb. Properties of particleboard bond with rice bran and polymeric met hylene diphenyl diisocyanate adhesives[J] Industrial Crops and Products, 2006, 23(1): 402-451.

DOI: 10.1016/j.indcrop.2005.03.004

[4] Boquillon N, Elbez G, Schonfeld U. Properties of wheat straw particleboards bond with different types of resin[J]. The Japan Wood Research Society, 2004: 2302-2351.

DOI: 10.1007/s10086-003-0551-9

[5] Bill Keil It's all a matter of straw[J]. Wood Based Panels International, 1998: 482.

[6] J. AI, R.S. Lu. Preheating treatment of wheat straw fiber properties [J]. Wood industry, 2001, 15 (2): 9-13.

[7] G.H. Chen, H.J. Zhang, C.L. Song. To improve the surface wettability of sorghum [J]. Forest Science, 2005, 30 (6): 43-46.

[8] J.H. Zhang, X.W. Xu, D.G. Zhou. Hydrothermal treatment on the chemical composition of wheat straw [J]. Nanjing Forestry University, 2004, 28 (6): 31-333.

[9] J. Yao, X.W. Xu. By infrared spectroscopy the chemical composition of wheat straw at all levels [J]. Spectra, 2003, 2: 58-60.
