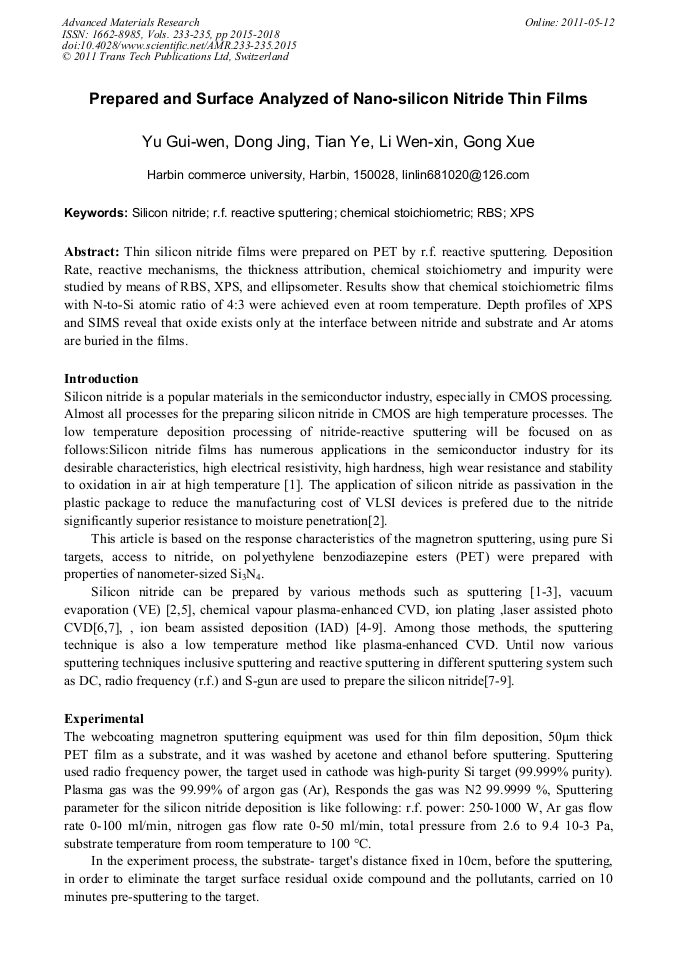

Prepared and Surface Analyzed of Nano-Silicon Nitride Thin Films

Abstract:

Thin silicon nitride films were prepared on PET by r.f. reactive sputtering. Deposition Rate, reactive mechanisms, the thickness attribution, chemical stoichiometry and impurity were studied by means of RBS, XPS, and ellipsometer. Results show that chemical stoichiometric films with N-to-Si atomic ratio of 4:3 were achieved even at room temperature. Depth profiles of XPS and SIMS reveal that oxide exists only at the interface between nitride and substrate and Ar atoms are buried in the films.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 233-235)

Pages:

2015-2018

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.233-235.2015

Citation:

Cite this paper

Online since:

May 2011

Authors:

Gui Wen Yu, Jing Dong, Ye Tian, Wen Xin Li, Xue Gong

Keywords:

Chemical Stoichiometric, Reactive Sputtering, Silicon Nitride

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. Hirohata, N. Shimamoto, T. Yamashima, K. Yabe, Thin Solid Films, 253(1994) 425-429.

DOI: 10.1016/0040-6090(94)90360-3

Google Scholar

[2] Effiong Ibok, Miguel Santana and Shyam Garg, in Silicon Nitride and Silicon Dioxide Thin Insulating Films, Vik J. Kapoor and William D. Brown, Editors, PV 94-16, p.385, The Electrochemical Society Proceedings Series, Pennington, NJ(1994).

Google Scholar

[3] Junting Luo. Journal of Wuhan University of Technology (Materials Science Edition). 2006. (03)97-99

Google Scholar

[4] Vargheese, K, D, R,ao, G, M. J V ac SciTechnol.2001, 19(4):1336-1340.

Google Scholar

[5] F. Martinet, G. Guegan. J. C. Jesionka, in Silicon Nitride Thin Insulating Films, Vik J. Kapoor and William D. Brown, Editors, PV 83-8, p.190, The Electrochemical Society Proceedings Series, Pennington, NJ(1983).

Google Scholar

[6] W. H. Ritchie, and W. Metz, in Silicon Nitride Thin Insulating Films, Vik J. Kapoor and William D. Brown, Editors, PV 83-8, p.161, The Electrochemical Society Proceedings Series, Pennington, NJ(1983).

Google Scholar

[7] S., Osono, Y., Uchiyama, M., Kitazoe, K.,et,al..Thinsolid films,2003,430(1-2):165-169.

Google Scholar

[8] VERLAAN,V; VERKERK, A, D; ARNOLDBIK, W, M, et, al. SolidFilms, 2009, 517(12): 3499-3502.

Google Scholar

[9] Zhang,H,uafu,; Q,i,Kangcheng; W,u, Jian. Materials Review,2004(18):298-300.

Google Scholar
