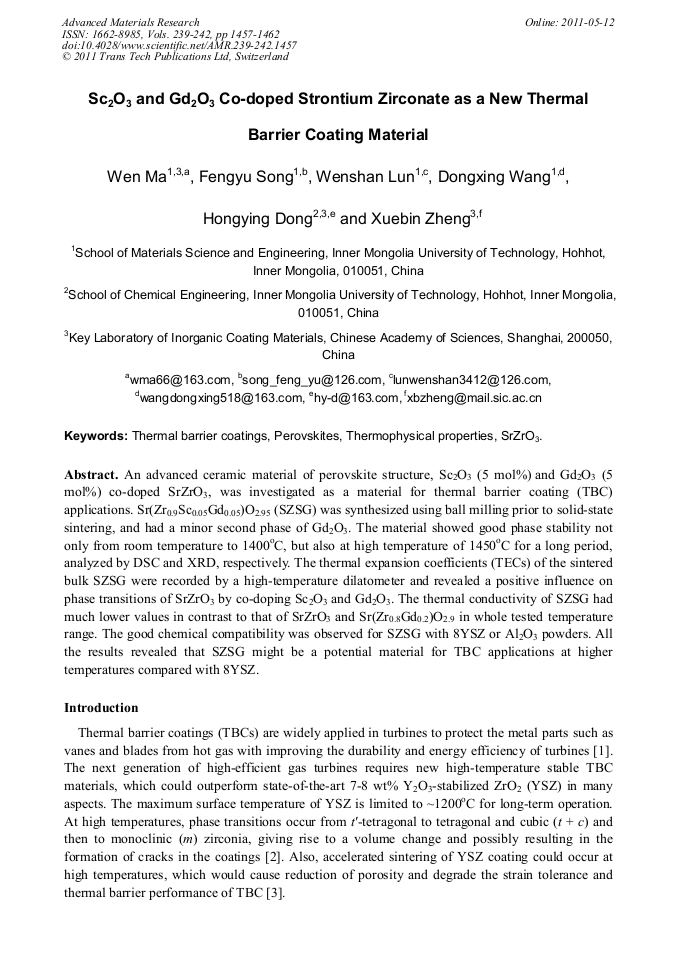

Sc₂O₃ and Gd₂O₃ Co-Doped Strontium Zirconate as a New Thermal Barrier Coating Material

Abstract:

An advanced ceramic material of perovskite structure, Sc₂O₃ (5 mol%) and Gd₂O₃ (5 mol%) co-doped SrZrO₃, was investigated as a material for thermal barrier coating (TBC) applications. Sr(Zr_0.9Sc_0.05Gd_0.05)O_2.95 (SZSG) was synthesized using ball milling prior to solid-state sintering, and had a minor second phase of Gd₂O₃. The material showed good phase stability not only from room temperature to 1400°C, but also at high temperature of 1450°C for a long period, analyzed by DSC and XRD, respectively. The thermal expansion coefficients (TECs) of the sintered bulk SZSG were recorded by a high-temperature dilatometer and revealed a positive influence on phase transitions of SrZrO₃ by co-doping Sc₂O₃ and Gd₂O₃. The thermal conductivity of SZSG had much lower values in contrast to that of SrZrO₃ and Sr(Zr_0.8Gd_0.2)O_2.9 in whole tested temperature range. The good chemical compatibility was observed for SZSG with 8YSZ or Al₂O₃ powders. All the results revealed that SZSG might be a potential material for TBC applications at higher temperatures compared with 8YSZ.

• Periodical: Advanced Materials Research (Volumes 239-242)
• Pages: 1457-1462
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.239-242.1457
• Online since: May 2011
• Authors: Wen Ma, Feng Yu Song, Wen Shan Lun, Dong Xing Wang, Hong Ying Dong, Xue Bin Zheng
• Keywords: Perovskite, SrZrO3, Thermal Barrier Coating (TBC), Thermophysical Properties

References

[1] R.A. Miller: Surf. Coat. Technol. Vol. 30 (1987), p.1

[2] R.A. Miller, J.L. Smialek and R.G. Garlick, in: Advances in Ceramics, edited by A.H. Heuer and L.W. Hobbs, Volume 3 of Science and Technology of Zircoina, American Ceramic Society, (1981).

[3] A.F. Renteria and B. Saruhan: J. Eur. Ceram. Soc. Vol. 26 (2006), p.2249

[4] R. Gadow and M. Lischka: Surf. Coat. Technol. Vol. 151-152 (2002), p.392

[5] M. Dietrich, V. Verlotski, R. Vassen and D. Stöver: Mater. Wiss. Werkst. Tech. Vol. 32 (2001), p.669

[6] K. Matsumoto, Y. Itoh and T. Kameda: Sci. Technol. Adv. Mater. Vol. 4 (2003), p.153

[7] M. Matsumoto, N. Yamaguchi and H. Matsubara: Scr. Mater. Vol. 50 (2004), p.867

[8] R. Vassen, X. Cao, F. Tietz, D. Basu and D. Stöver: J. Am. Ceram. Soc. Vol. 83 (2000), p. (2023)

[9] B. Saruhan, P. Francois, K. Fritscher and U. Schulz: Surf. Coat. Technol. Vol. 182 (2004), p.175

[10] X. Cao, R. Vassen,W. Fischer, F. Tietz, W. Jungen and D. Stöver: Adv. Mater. Vol. 15 (2003), p.1438

[11] D.R. Clarke: Surf. Coat. Technol. Vol. 163-164 (2003), p.67

[12] B. Heimberg, W. Beele, K. Kempter, U. Bast, T. Haubold, M. Hoffmann, A. Endriss, P. Greil, C. Hong, F. Aldinger and H. Seifert, U.S. patent 6,602,553 B2. (2003)

[13] T. Noguchi, T. Okubo and O. Yonemochi: J. Am. Ceram. Soc. Vol. 52 (1969), p.178

[14] C.J. Howard, K.S. Knight, B.J. Kennedy and E.H. Kisi: J. Phys. Condens. Matter Vol. 12 (2000), p. L677

[15] Y. Zhao and D.J. Weidner: Phys. Chem. Minerals Vol. 18 (1991), p.294

[16] D. Ligny and P. Richet: Phys. Rev. B Vol. 53 (1996), p.3013

[17] R. Morrell: Handbook of Properties of Technical and Engineering Ceramics-Part 1 (Her Majesty's Stationery Office, London, 1989).

[18] S. Yamanaka, K. Kurosaki, T. Oyama, H. Muta, and M. Uno: J. Am. Ceram. Soc. Vol. 88 (2005), p.1496

[19] W. Ma, D. Mack, R. Vassen and D. Stöver: J. Am. Ceram. Soc. Vol. 91 (2008), p.2630

[20] S. Sodeoka, M. Suzuki, T. Inoue, K. Ueno and S. Oki, in: Thermal spray: Practical Solutions for Engineering Problems, proceedings of the 9th National Thermal Spray Conference, edited by C.C. Berndt, ASM International, (1996).

DOI: 10.31399/asm.cp.itsc1996p0295
