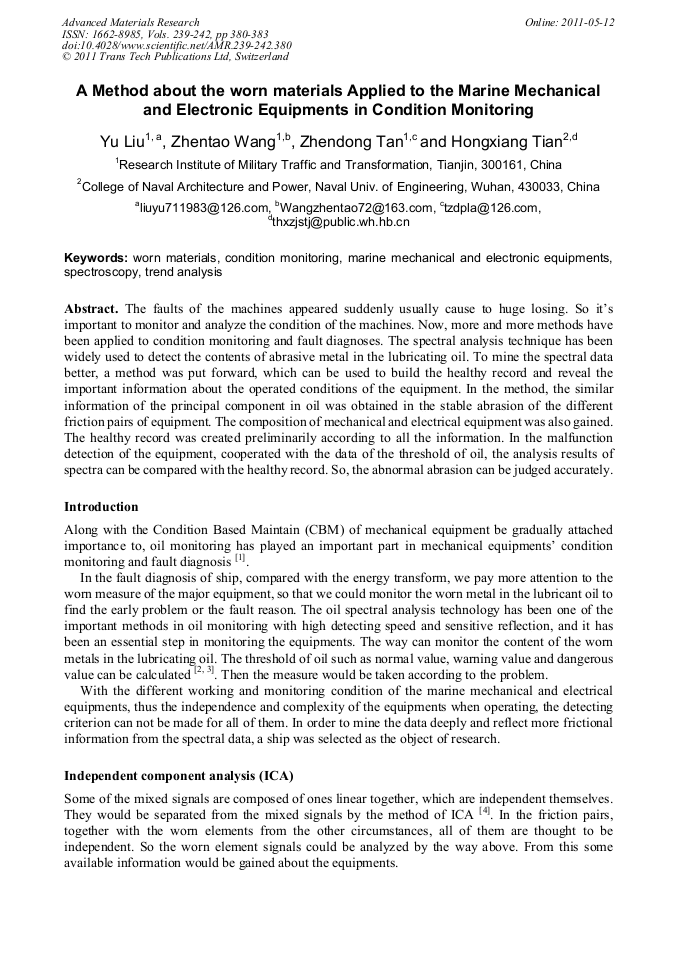

A Method about the Worn Materials Applied to the Marine Mechanical and Electronic Equipments in Condition Monitoring

Abstract:

The faults of the machines appeared suddenly usually cause to huge losing. So it’s important to monitor and analyze the condition of the machines. Now, more and more methods have been applied to condition monitoring and fault diagnoses. The spectral analysis technique has been widely used to detect the contents of abrasive metal in the lubricating oil. To mine the spectral data better, a method was put forward, which can be used to build the healthy record and reveal the important information about the operated conditions of the equipment. In the method, the similar information of the principal component in oil was obtained in the stable abrasion of the different friction pairs of equipment. The composition of mechanical and electrical equipment was also gained. The healthy record was created preliminarily according to all the information. In the malfunction detection of the equipment, cooperated with the data of the threshold of oil, the analysis results of spectra can be compared with the healthy record. So, the abnormal abrasion can be judged accurately.

• Periodical: Advanced Materials Research (Volumes 239-242)
• Pages: 380-383
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.239-242.380
• Online since: May 2011
• Authors: Yu Liu, Zhen Tao Wang, Zhen Dong Tan, Hong Xiang Tian
• Keywords: Condition Monitoring, Marine Mechanical and Electronic Equipment, Spectroscopy, Trend Analysis, Wear Materials

References

[1] Xinping Yan, Youbai Xie, Hanliang Xiao, Research on Data Fusion for Diagnosing Types of Tribological Failures by Dampsters-Shafer. [J]. Tribology. 1999, 19(2): 145.

[2] Yaoqing Wan, Changsong Zheng, Biao Ma. Threshold Problem s on Fault Diagnosis of the Atomic Emission Spectrom Eter Oil Analysis. [J]. Journal of Mechanical Strength, 2006, 28(4): 485.

[3] V. Macian, B. Tormos, P. Olmeda, et al. Analytical approach to wear rate determination for internal combustion engine condition monitoring based on oil analysis [J]. Tribology, 2003, 36: 771-776.

DOI: 10.1016/s0301-679x(03)00060-4

[4] Yonggang Xu, Qiang Li, Zhengying Wang, et al. Fault Information Extraction of Mechanical Equipment Based on Independent Component Analysis. [J]. Journal of Tianjin University, 2006, 39(9): 1066.

[5] Spectroil M Operation & Maintenance Manual (version 2. 2). Spectroil Operation Press. (2006).

[6] ASTM D 6595-00(2005). Standard Test Method for Determination of Wear Metals and Contaminants in Used Lubricating Oils or Used Hydraulic Fluids by Rotating Disc Electric Atomic Emission Spectrometry[S].

DOI: 10.1520/d6595-00r11

[7] Qiming Yang, Xinpin Yang, Shizhong He. Oil Monitoring and Analysis on-site Practical Techniques. [M]. Beijing: Mechanical Industry Press, 2006. 18.

[8] Shizhu Wen. Study on Lubrication Theory-progress and Thinking-ove. [J]. Tribology, 2007. 28(1): 1-5.

[9] Higgs C F, Tichy J. Granular flow lubrication: Continuum modeling of shear behavior [J]. Journal of Tribology-Transactions of the Asme, 2004, 126(3): 499-510.

DOI: 10.1115/1.1691437
