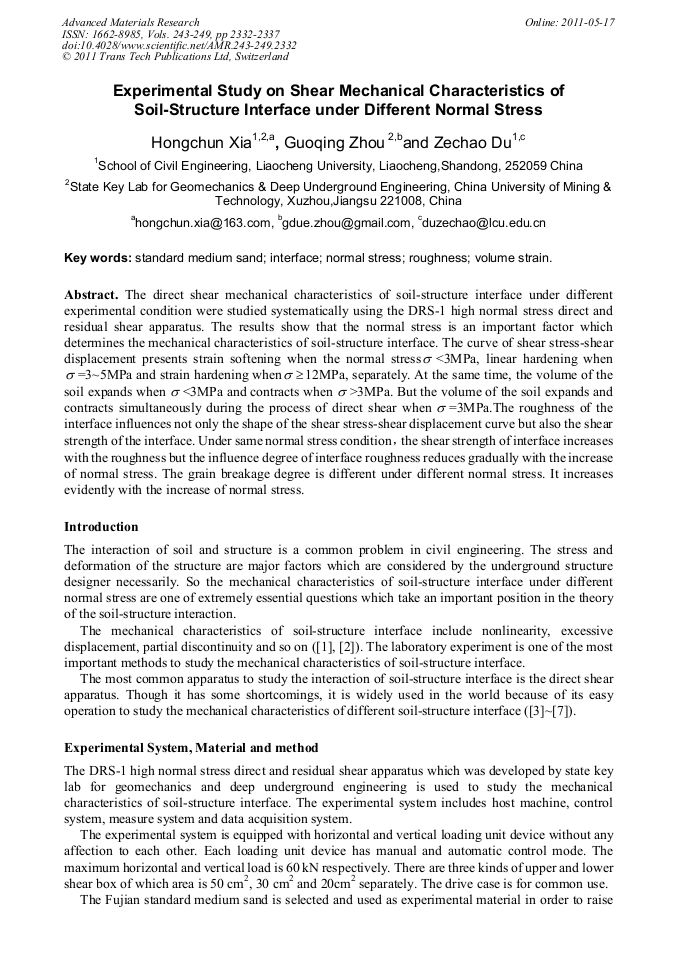

Experimental Study on Shear Mechanical Characteristics of Soil-Structure Interface under Different Normal Stress

Abstract:

The direct shear mechanical characteristics of soil-structure interface under different experimental condition were studied systematically using the DRS-1 high normal stress direct and residual shear apparatus. The results show that the normal stress is an important factor which determines the mechanical characteristics of soil-structure interface. The curve of shear stress-shear displacement presents strain softening when the normal stress<3MPa, linear hardening when =3~5MPa and strain hardening when12MPa, separately. At the same time, the volume of the soil expands when <3MPa and contracts when >3MPa. But the volume of the soil expands and contracts simultaneously during the process of direct shear when =3MPa.The roughness of the interface influences not only the shape of the shear stress-shear displacement curve but also the shear strength of the interface. Under same normal stress condition，the shear strength of interface increases with the roughness but the influence degree of interface roughness reduces gradually with the increase of normal stress. The grain breakage degree is different under different normal stress. It increases evidently with the increase of normal stress.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 2332-2337
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.2332
• Online since: May 2011
• Authors: Hong Chun Xia, Guo Qing Zhou, Ze Chao Du
• Keywords: Interface, Normal Stress, Roughness, Standard Medium Sand, Volume Strain

References

[1] L.M. Hu: Study on Mechanical Characteristics of Soil-Structure Interface and its Application [Ph.D.dissertation].Beijing: Tsinghua University, 2000. (in Chinese)

[2] G. Zhang: A New Monotonic and Cyclic Elasto-Plasticity Damage Theory for Soil-Structure Interfaces [Ph.D.dissertation].Beijing: Tsinghua University, 2002. (in Chinese)

[3] J.G. Potynody: Geotechnique Vol. 11(1961), P. 339.

[4] G.W. Clough and J.M. Duncan: Journal of Soil Mechanics and Foundation Engineering Division, ASCE Vol. 97(1971), P. 1657.

[5] M.C. Alfaro, N. Miura and D.T. Bergado: Geotechnical Testing Journal Vol. 18(1995), P. 157.

[6] C.N. Liu, Y.H. Ho and J.W. Huant: Geotextiles and Geomembranes Vol. 27(2009), P. 19

[7] ANUBHAV and P.K. Basudhar:Geotextiles and Geomembranes Vol. 28 (2010), P. 403..

[8] H.C. Xia: Mechanical Characteristics of Soil-Structure Interface and Interface Layer Under High Normal Stress Condition[Ph.D.dissertation].Xuzhou: China University of Mining & Technology, 2006. (in Chinese)

[9] L.M. Hu and J.L. Pu: Journal of Geotechnical Engineering Vol. 23 (2001), P. 431. (in Chinese)

[10] G.Q. Zhou, G.S. Zhao and X.Y. Bie: Journal of China University of Mining & Technology Coal Society Vol. 30(2001), P. 118. (in Chinese)

[11] N. Miura and S. O-hara: Soils and Foundations Vol. 19 (1979), P. 1.

[12] G.R. Mcdowell, M.D. Bolton and D. Robertson: J. Mech. Phys. Solids, Vol. 44 (1996), P. 2079.

[13] B.O. Hardin: Journal of Geotechnical Engineering: Vol. 111 (1985), P. 1177.
