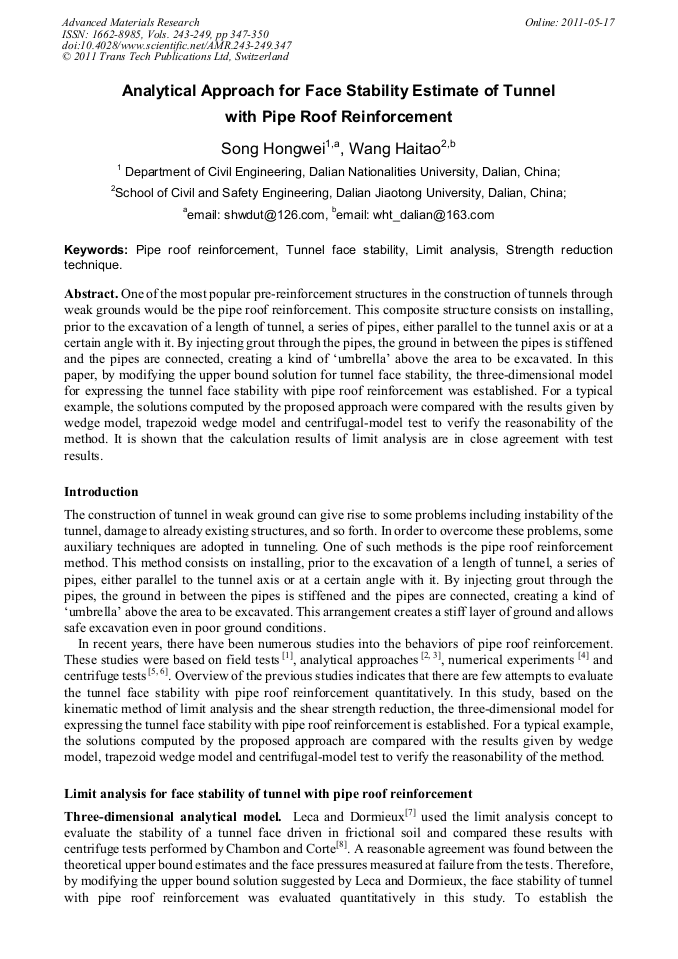

Analytical Approach for Face Stability Estimate of Tunnel with Pipe Roof Reinforcement

Abstract:

One of the most popular pre-reinforcement structures in the construction of tunnels through weak grounds would be the pipe roof reinforcement. This composite structure consists on installing, prior to the excavation of a length of tunnel, a series of pipes, either parallel to the tunnel axis or at a certain angle with it. By injecting grout through the pipes, the ground in between the pipes is stiffened and the pipes are connected, creating a kind of ‘umbrella’ above the area to be excavated. In this paper, by modifying the upper bound solution for tunnel face stability, the three-dimensional model for expressing the tunnel face stability with pipe roof reinforcement was established. For a typical example, the solutions computed by the proposed approach were compared with the results given by wedge model, trapezoid wedge model and centrifugal-model test to verify the reasonability of the method. It is shown that the calculation results of limit analysis are in close agreement with test results.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 347-350
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.347
• Online since: May 2011
• Authors: Hong Wei Song, Hai Tao Wang
• Keywords: Limit Analysis, Pipe Roof Reinforcement, Strength Reduction Technique, Tunnel Face Stability

References

[1] O. Ibrahim. Control of surface settlements with umbrella arch method in second stage excavations of Istanbul Metro. Tunnelling and Underground Space Technology, 23(6), (2008), p.674–681.

DOI: 10.1016/j.tust.2007.12.005

[2] S.D. Chang. Research on pre-brace mechanism of pipe umbrella method. Chengdu: Southwest Jiaotong University, (1999) (in Chinese)

[3] H.T. Wang, J.Q. Jia. Analytical method for mechanical behaviors of pipe roof reinforcement. International Conference on Information Management, Innovation Management and Industrial Engineering. Taipei: IEEE Computer society, (2008), p.352–357.

DOI: 10.1109/iciii.2008.96

[4] C.S. Yoo. Finite-element analysis of tunnel face reinforced by longitudinal pipes. Computers and Geotechnics, 29(1), (2002), pp.73-94.

DOI: 10.1016/s0266-352x(01)00020-9

[5] Hisatake, M., Ohno, S. (2008) "Effects of pipe roof supports and the excavation method on the displacements above a tunnel face," Tunnelling and Underground Space Technology, 23(2), pp.120-127.

DOI: 10.1016/j.tust.2007.02.002

[6] H. Shin, Y.K. Choi , O.Y. Kwon, S.D., Lee. Model testing for pipe-reinforced tunnel heading in a granular soil. Tunnelling and Underground Space Technology, 23(3), (2008), pp.241-250.

DOI: 10.1016/j.tust.2007.04.012

[7] E. Leca, L. Dormieux. Upper and lower bound solutions for the face stability of shallow circular tunnels in frictional material. Geotechnique, 40 (4), (1990), p.581–606.

DOI: 10.1680/geot.1990.40.4.581

[8] P. Chambon, J.F. Corte. Shallow tunnels in cohesionless soil: Stability of tunnel face. Journal of Geotechnical Engineering, 120 (7), (1994), p.1148–1165.

DOI: 10.1061/(asce)0733-9410(1994)120:7(1148)

[9] M.S. Huang, C. Q.Jia. Strength reduction FEM in stability analysis of soil slopes subjected to transient unsaturated seepage. Computers and Geotechnics, 36(1), (2009), PP 93-101.

DOI: 10.1016/j.compgeo.2008.03.006

[10] W.B. Wei, Y.M. Cheng, L. Li. Three-dimensional slope failure analysis by the strength reduction and limit equilibrium methods. Computers and Geotechnics, 36(1), (2009), pp.70-80.

DOI: 10.1016/j.compgeo.2008.03.003
