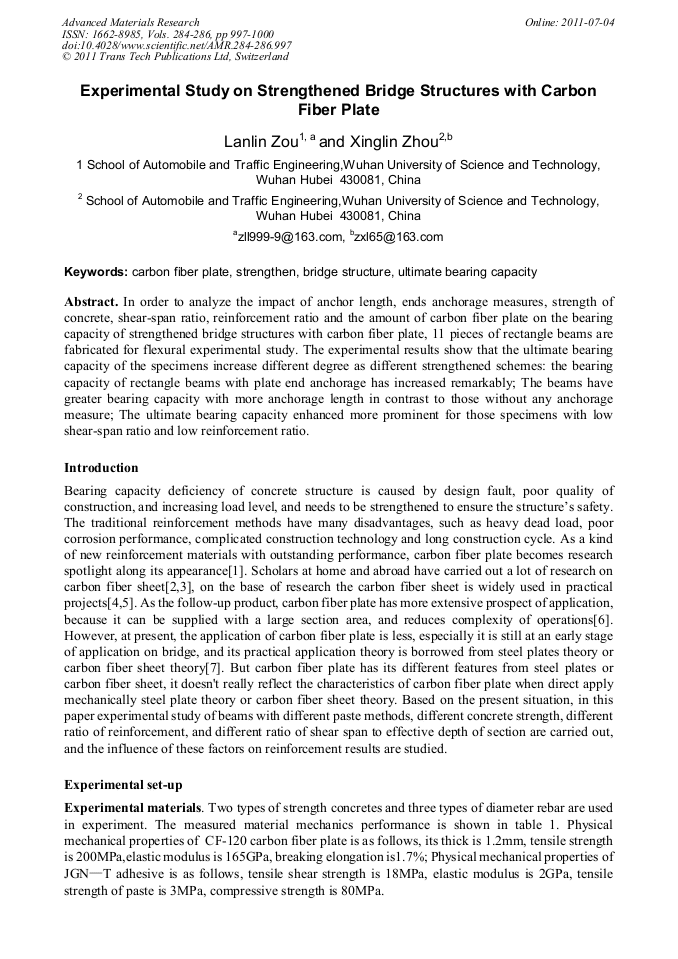

Experimental Study on Strengthened Bridge Structures with Carbon Fiber Plate

Abstract:

In order to analyze the impact of anchor length, ends anchorage measures, strength of concrete, shear-span ratio, reinforcement ratio and the amount of carbon fiber plate on the bearing capacity of strengthened bridge structures with carbon fiber plate, 11 pieces of rectangle beams are fabricated for flexural experimental study. The experimental results show that the ultimate bearing capacity of the specimens increase different degree as different strengthened schemes: the bearing capacity of rectangle beams with plate end anchorage has increased remarkably; The beams have greater bearing capacity with more anchorage length in contrast to those without any anchorage measure; The ultimate bearing capacity enhanced more prominent for those specimens with low shear-span ratio and low reinforcement ratio.

• Periodical: Advanced Materials Research (Volumes 284-286)
• Pages: 997-1000
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.284-286.997
• Online since: July 2011
• Authors: Lan Lin Zou, Xing Lin Zhou
• Keywords: Bridge Structure, Carbon Fiber Plate, Strengthen, Ultimate Bearing Capacity

References

[1] BU Liangtao, SONG Li, SHI Chuxian. Experimental and theoretical study on flexural behavior of RC beams strengthened with carbon fiber plates(CFP) [J]. Journal of Building Structures , 2007,28（1）：72-79. In Chinese

[2] SHANG Shouping,PENG Hui,TONG Hua,et al. Study of strengthening reinforced concrete beam using prestressed carbon fiber sheet[J]. Journal of Building Structures,2003,24（5）：24-30. In Chinese

[3] HE Xianfeng, PENG Hui, LU0 Jie. Engineering Application and Evaluation of the Bridge Structure Strengthened with Prestressed CFRP Plate[J]. CHINA RAILWAY SCIENCE, 2007,28（2）：139-144. In Chinese

[4] GU Xianglin, GAO Peng, ZHA NG Weiping. Study on Bending Behavior of Reinforced Concrete Beams Strengthened by Pre-tensioned Carbon Fiber Composite Sheets [J]. JOURNAL OF BUILDING MATERIALS,2009,12（2）：141-147. In Chinese

[5] DENG Zong-cai. Flexural strengthening of reinforced concrete beams with externally bonded composite laminates[J]. China Journal of Highway and Transport, 2001,14（2）：45-51. In Chinese

[6] PENG Hui, SHANG Shoupin, JIN Yongjun. EXPERIMENTAL STUDY OF REINFORCED CONCRETE BEAM WITH PRESTRESSED CFRP PLATE[J]. ENGINERING MECHANICS 2008,25(5):145-151.

[7] Lee Tai Kuang, Pan A D E, Ma M J L. Ductile design of reinforced concrete beams retrofitted with fiber reinforced polymer plates[J]．Journal of Composites for Construction,ASCE,2004,8(6) ：489-500．

DOI: 10.1061/(asce)1090-0268(2004)8:6(489)
