Influence of Re-Melting Technology on Properties and Microstructures of Ferrous Matrix Composites Reinforced with Tungsten Carbide Particle

Yan Pei Song; Hui Gai Wang; Zhi Ming Feng; Zhen Kai Zhao

doi:10.4028/www.scientific.net/AMR.291-294.1389

Paper Titles

Microstructure Research of Magnesium with Laser Surface Cladding by Al-Si Alloy
p.1369

Direct Writing Micro/Nano Structures on PZT Wafer by Laser Micromaching
p.1373

Research on the Application of DVD Pick-Up Head in Three-Dimensional Optical Storage
p.1377

Development of Numerical Model and Coupled Thermal/Mechanical Analysis in the Laser Transmission Joining of PET and Stainless Steel
p.1381

Influence of Re-Melting Technology on Properties and Microstructures of Ferrous Matrix Composites Reinforced with Tungsten Carbide Particle
p.1389

Patterning of ITO on Glass with Two-Step Using Excimer Laser and Wet Chemical Re-Etching
p.1393

Development of Porous Scaffolds Using Selective Laser Sintering of Polylactic Acid/ Hydroxyapatite for Bone Tissur Engineering
p.1399

Study on Thermal Fatigue Resistance of Non-Smooth Cast Iron Treated by Laser Surface Alloying of CrNi Powders
p.1405

Characteristic of Laser Texturing Surface Aided with Abbott Curve
p.1412

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 291-294Influence of Re-Melting Technology on Properties...

Influence of Re-Melting Technology on Properties and Microstructures of Ferrous Matrix Composites Reinforced with Tungsten Carbide Particle

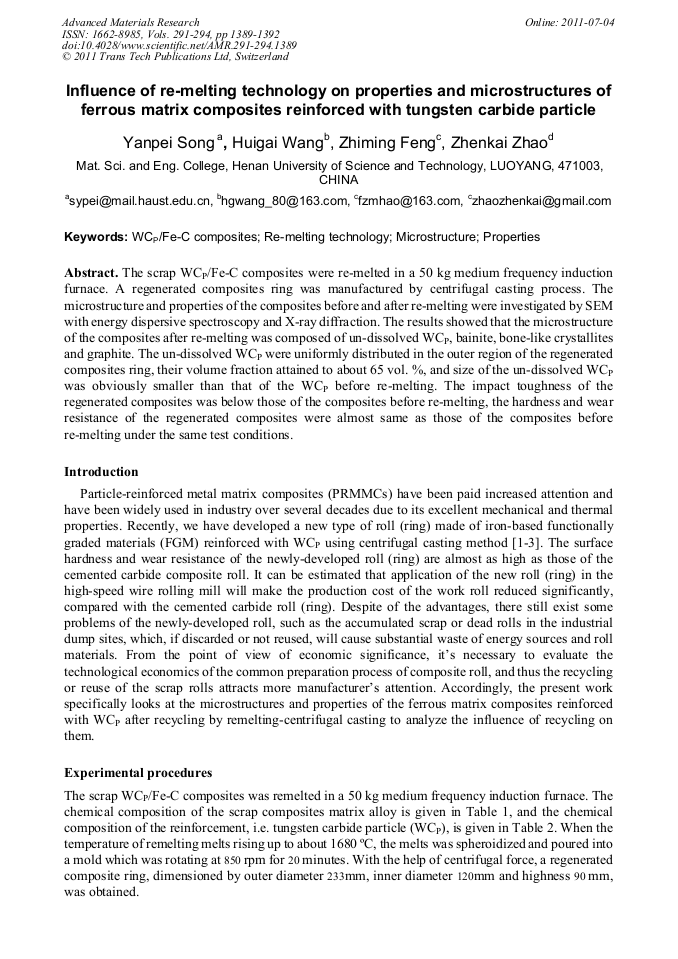

Abstract:

The scrap WC_P/Fe-C composites were re-melted in a 50 kg medium frequency induction furnace. A regenerated composites ring was manufactured by centrifugal casting process. The microstructure and properties of the composites before and after re-melting were investigated by SEM with energy dispersive spectroscopy and X-ray diffraction. The results showed that the microstructure of the composites after re-melting was composed of un-dissolved WC_P, bainite, bone-like crystallites and graphite. The un-dissolved WC_P were uniformly distributed in the outer region of the regenerated composites ring, their volume fraction attained to about 65 vol. %, and size of the un-dissolved WC_P was obviously smaller than that of the WC_P before re-melting. The impact toughness of the regenerated composites was below those of the composites before re-melting, the hardness and wear resistance of the regenerated composites were almost same as those of the composites before re-melting under the same test conditions.
