A Novel Dimension Measurement System of Hot Large Open Die Forgings

Abstract:

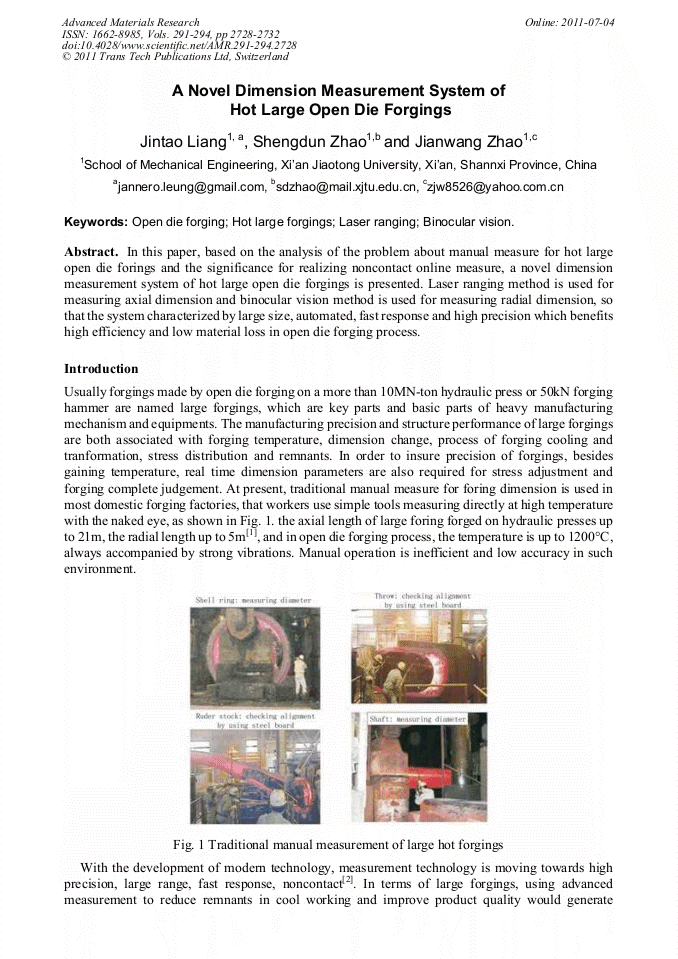

In this paper, based on the analysis of the problem about manual measure for hot large open die forings and the significance for realizing noncontact online measure, a novel dimension measurement system of hot large open die forgings is presented. Laser ranging method is used for measuring axial dimension and binocular vision method is used for measuring radial dimension, so that the system characterized by large size, automated, fast response and high precision which benefits high efficiency and low material loss in open die forging process.
