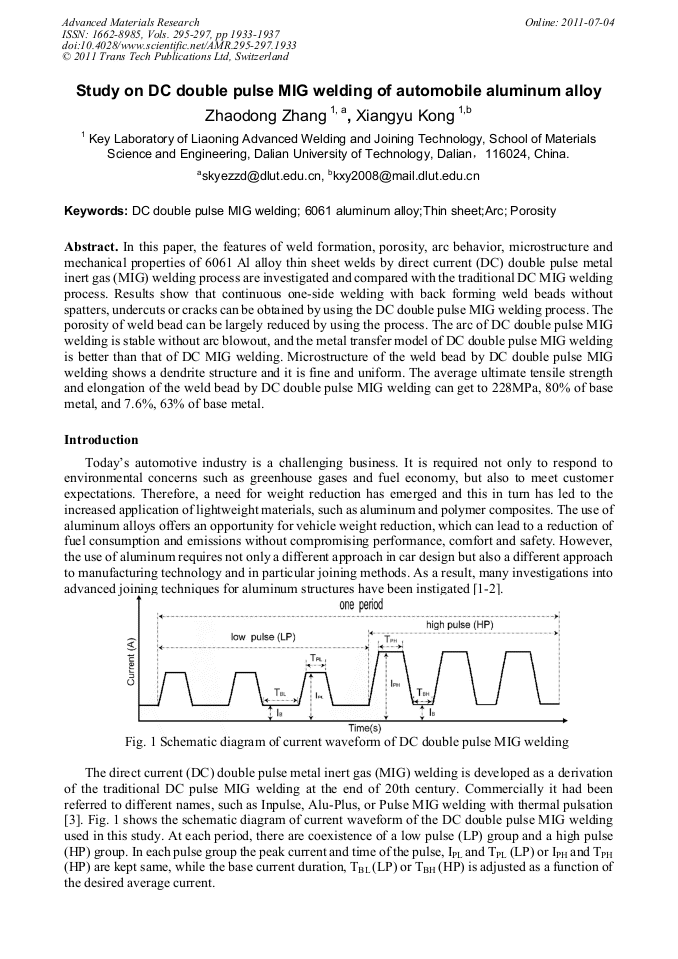

Study on DC Double Pulse MIG Welding of Automobile Aluminum Alloy

Abstract:

In this paper, the features of weld formation, porosity, arc behavior, microstructure and mechanical properties of 6061 Al alloy thin sheet welds by direct current (DC) double pulse metal inert gas (MIG) welding process are investigated and compared with the traditional DC MIG welding process. Results show that continuous one-side welding with back forming weld beads without spatters, undercuts or cracks can be obtained by using the DC double pulse MIG welding process. The porosity of weld bead can be largely reduced by using the process. The arc of DC double pulse MIG welding is stable without arc blowout, and the metal transfer model of DC double pulse MIG welding is better than that of DC MIG welding. Microstructure of the weld bead by DC double pulse MIG welding shows a dendrite structure and it is fine and uniform. The average ultimate tensile strength and elongation of the weld bead by DC double pulse MIG welding can get to 228MPa, 80% of base metal, and 7.6%, 63% of base metal.

You might also be interested in these eBooks

Manufacturing Science and Technology, AEMT2011

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 295-297)

Pages:

1933-1937

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.295-297.1933

Citation:

Cite this paper

Online since:

July 2011

Authors:

Zhao Dong Zhang, Xiang Yu Kong

Keywords:

AA6061 Aluminum Alloy, Arc, DC Double Pulse Mig Welding, Porosity, Thin Sheet

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L. M. Liu, X. F. Hao, Low-power laser/TIG hybrid welding process of magnesium alloy with filler wire, Materials and Manufacturing Processes. 25 (2010) 1213-1218.

DOI: 10.1080/10426911003587485

Google Scholar

[2] G. Song, P. Wang, L. M. Liu, Study on ac-PMIG welding of AZ(31)B magnesium alloy, SCI TECHNOL WELD JOI. 15 (2010) 219-225.

Google Scholar

[3] H.J. Tong, U. Tomoyuki, Features of low frequency modulated type pulsed MIG welding process, Welding &Joining. 11 (2001) 33-35. (In Chinese)

Google Scholar

[4] M. Rethmeier, S. Wiesner, Characteristic features of MIG welding of magnesium alloys, Zeitschrift für Metallkunde. 92 (2001) 281–285.

Google Scholar

[5] J. C. Feng, H. T. Zhang, P. He, The CMT short-circuiting metal transfer process and its use in thin aluminum sheets welding, Materials and Design. 30 (2009) 1850–1852.

DOI: 10.1016/j.matdes.2008.07.015

Google Scholar

[6] P. Yao, J. X. Xue, W. J. Meng, S. J. Zhu, Influence of processing parameters on weld forming in double pulse MIG welding of aluminum alloy, Transactions of the China Welding Institution. 30 (2009) 69-72. (In Chinese)

Google Scholar
