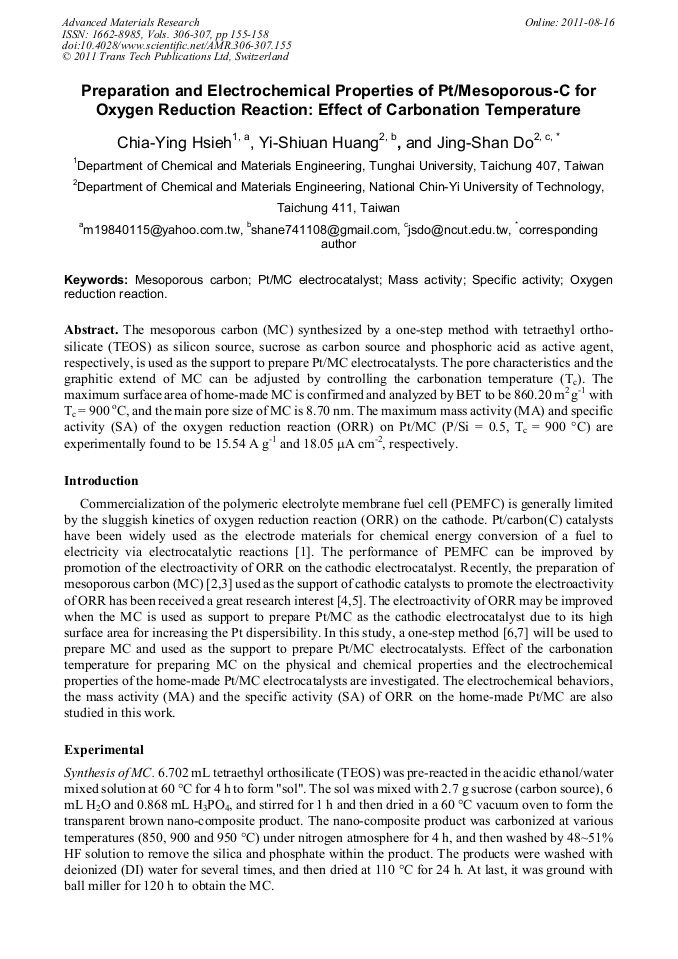

Preparation and Electrochemical Properties of Pt/Mesoporous-C for Oxygen Reduction Reaction: Effect of Carbonation Temperature

Abstract:

The mesoporous carbon (MC) synthesized by a one-step method with tetraethyl ortho- silicate (TEOS) as silicon source, sucrose as carbon source and phosphoric acid as active agent, respectively, is used as the support to prepare Pt/MC electrocatalysts. The pore characteristics and the graphitic extend of MC can be adjusted by controlling the carbonation temperature (T_c). The maximum surface area of home-made MC is confirmed and analyzed by BET to be 860.20 m2 g^-1 with Tc = 900 °C, and the main pore size of MC is 8.70 nm. The maximum mass activity (MA) and specific activity (SA) of the oxygen reduction reaction (ORR) on Pt/MC (P/Si = 0.5, T_c = 900 °C) are experimentally found to be 15.54 A g^-1 and 18.05 mA cm^-2, respectively.

• Periodical: Advanced Materials Research (Volumes 306-307)
• Pages: 155-158
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.306-307.155
• Online since: August 2011
• Authors: Chia Ying Hsieh, Yi Shiuan Huang, Jing Shan Do
• Keywords: Mass Activity, Mesoporous Carbon, Oxygen Reduction Reaction, Pt/MC Electrocatalyst, Specific Activity

References

[1] M. Winter, R.J. Brodd, Chem. Rev, 104 (2004) 4245-4269.

[2] S.H. Joo, S.J. Choi, I. Oh, J. Kwak, Z. Liu, O. Terasaki, R. Ryoo, Nature 412 (2001) 169-172.

[3] Y.C. Liu, X.P. Qiu, Y. Q. Huang, W.T. Zhu, Carbon 40 (2002) 2375-2380.

[4] S. Song, Y. Liang, Z. Li, Y. Wang, R. Fu, D. Wu, P. Tsiakaras, Appl. Catal., B 98 (2010) 132-137.

[5] F. Su, C.K. Poh, Z. Tian, G. Xu, G. Koh, Z. Wang, Z. Liu, J. Lin, Energy Fuels 24 (2010) 3727-3732.

[6] J. Lee, J. Kim, T. Hyeon, Adv. Mater. 18 (2006) 2073-(2094).

[7] Q.Y. Hu, J.B. Pang, Z.W. Wu, Y.F. Lu, Letters to the Editor/Carbon 44 (2006) 1298-1352.

[8] G. Ertl, H. Knozinger, J. Weitkamp, Handbook of Heterogeneous Catalysis 3 (1997) 1508-1510.

[9] J. Perez, H.M. Villullas, E.R. Gonzalez, J. Electroanal. Chem. 435 (1997) 179-187.
